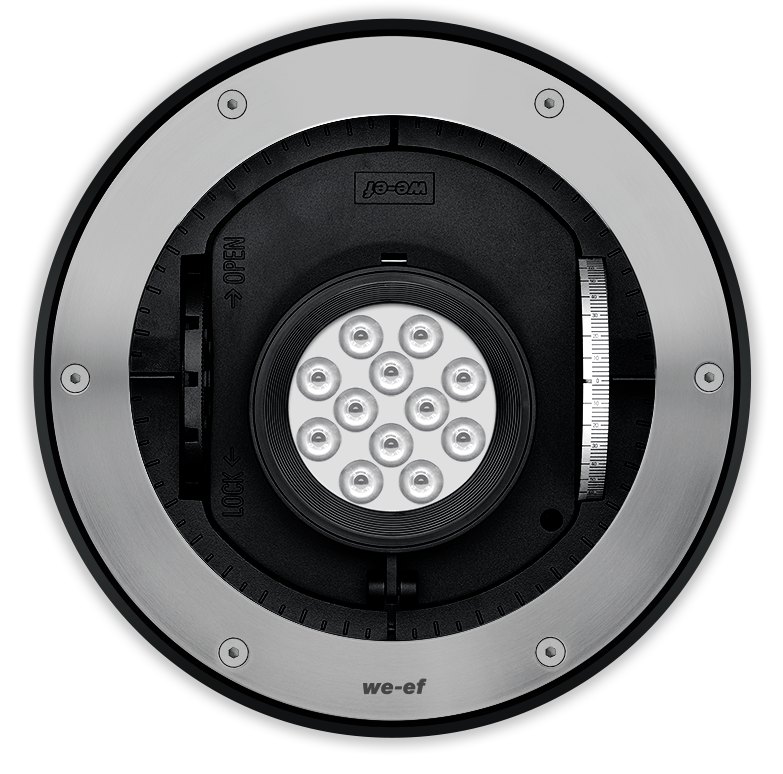

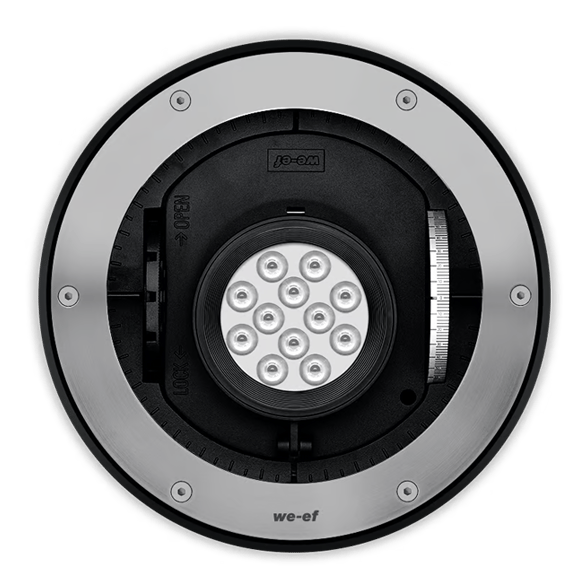

RGBW Colour Changer. IP67. Class I. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 0.5 meters of flexible, PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. 20° tiltable and 355° rotatable. LED circuit board with WE-EF Colour Boost Technology. DMX Interface. For other control interface options to suit specific project requirements, contact WE-EF. Luminaire installation blockout and sealable junction box included in supply.

ETC340-GB CC LED Schematics
Farben
Stainless Steel
Materialinformationen
GehäuseStainless steel construction
SchraubenPCS hardware
DichtungSilicone rubber gasket
SchlagfestigkeitIK10+
SchutzartIP67
InstallationLuminaire installation blockout and sealable junction box included in supply
Elektrische Informationen
Netzgerät / VorschaltgerätIntegral EC electronic converter with DMX Interface
KabelComplete with cable gland and 0.5 m of flexible PVC-free cable
Netz220-240V / 50-60 Hz
Weitere Informationen
ArtikelnummerLichtverteilungLichtquelleBemessungslichtstromCRISpezifikationenPhotometrie
TextPDF
185-7804symmetric, wide beam [B]LED-12/25W - RGBW2059.320/80 ULD
185-7805symmetric, medium beam [M]LED-12/25W - RGBW2053.320/80 ULD
Einträge 1 bis 2 von 2.

Accessories

ArtikelnummerTitelSpezifikationen
TextPDF
185-0326Installation cover BE
ItemDownload
Produktbilder
Photometrie
Installationsanleitung
