ETC100 series

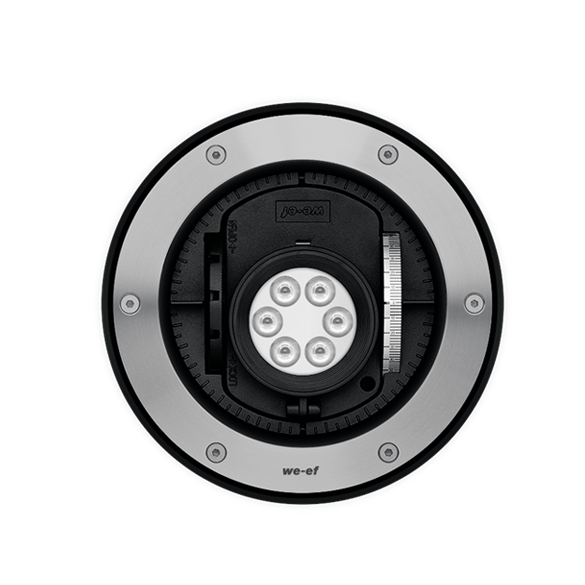

ETC130-GB LED
IP69, Class I. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 1.5 meters of flexible, PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. 20° tiltable and 355° rotatable. Luminaire installation blockout and sealable junction box included in supply.
Colours
Stainless Steel
Material
| Body | Stainless steel construction |
| Fasteners | PCS hardware |
| Gasket | Silicone rubber gasket |
| Impact Protection | IK10+ |
| Ingress Protection | IP69 |
| Finish | - |
| Mounting | Luminaire installation blockout and sealable junction box included in supply |
Electrical
| Ballast / Driver | Integral EC electronic converter |
| Cable | Complete with cable gland and 1.5 m of flexible PVC-free cable |
Additional Information
- - - -
Accessories
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions |
