SBI100 series

SBI130 LED

Static White

Choose a family:

L225×W140 mm | SBI120 LED L250×W160 mm | SBI130 LED
Home
Products
Ceiling Luminaires
SBI130 LED
Family Spec Sheet Installation Instructions More Downloads

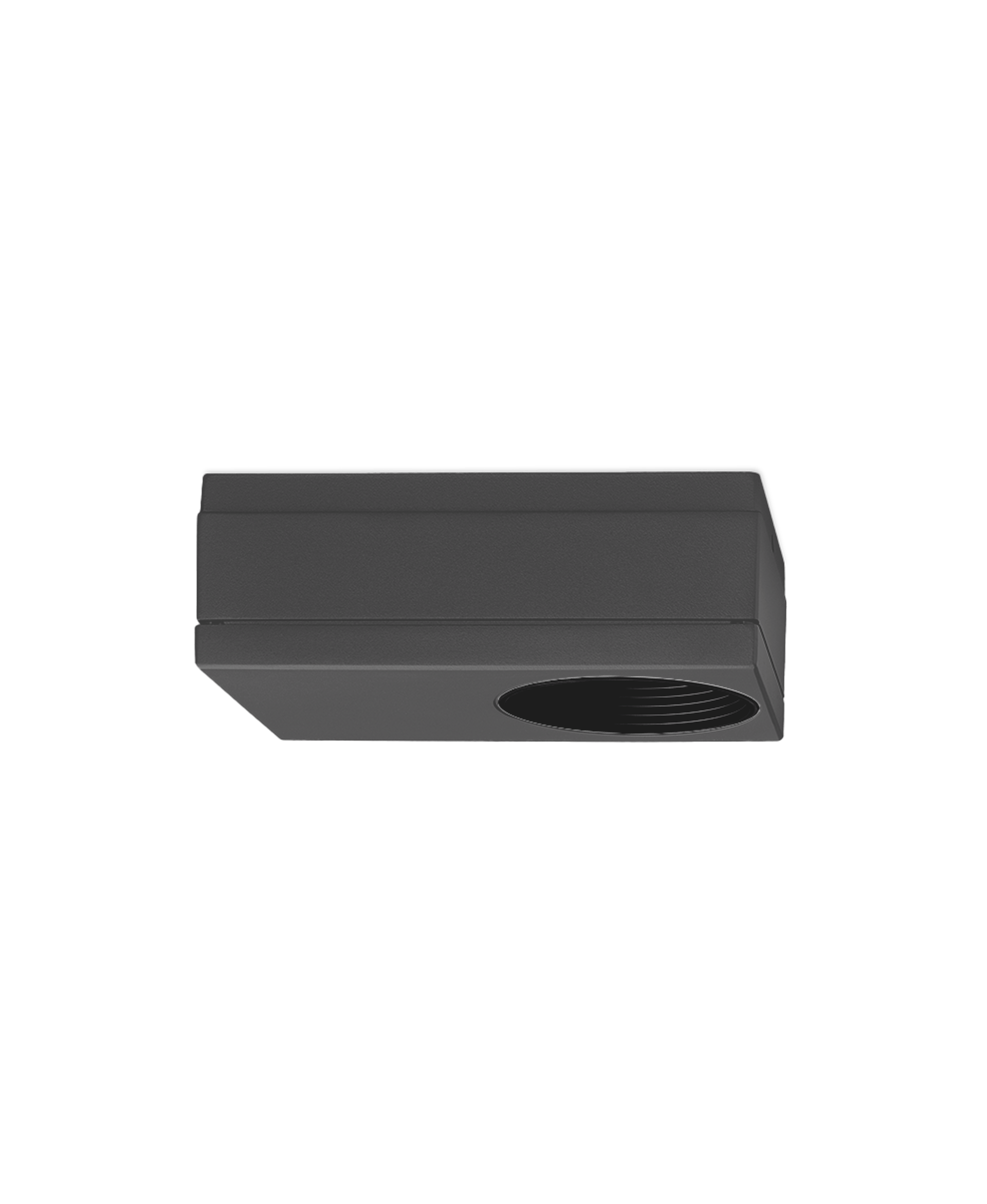

IP66. IK06. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept.

SBI130 LED Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK06
Ingress ProtectionIP66
FinishPowdercoat finish in RAL9004, RAL9006, RAL9007, RAL7016 and RAL9016
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
CableTwo cable entries
Additional Information

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
138-8992symmetric, wide beam [B]LED-12/24W / 700 mA - 3000 K2709.280
138-8993symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 3000 K3077.980
138-8994symmetric, wide beam [B]LED-12/24W / 700 mA - 4000 K289680
138-8995symmetric, very narrow beam, sharp cut-off [EES]LED-12/24W / 700 mA - 4000 K3290.280
138-9010symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K2998.680
138-9011symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 3000 K2883.780
138-9013symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K3205.480
138-9014symmetric, very narrow beam [EE]LED-12/24W / 700 mA - 4000 K3082.580
138-6006symmetric, wide beam [B]LED-12/36W / 1050 mA - 3000 K3795.180
138-6009symmetric, wide beam [B]LED-12/36W / 1050 mA - 4000 K3971.680
138-6007symmetric, medium beam [M]LED-12/36W / 1050 mA - 3000 K4325.280
138-6010symmetric, medium beam [M]LED-12/36W / 1050 mA - 4000 K4526.480
138-6008symmetric, very narrow beam [EE]LED-12/36W / 1050 mA - 3000 K4093.280
138-6011symmetric, very narrow beam [EE]LED-12/36W / 1050 mA - 4000 K4283.680
Showing 1 to 14 of 14 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0013DALI interface
