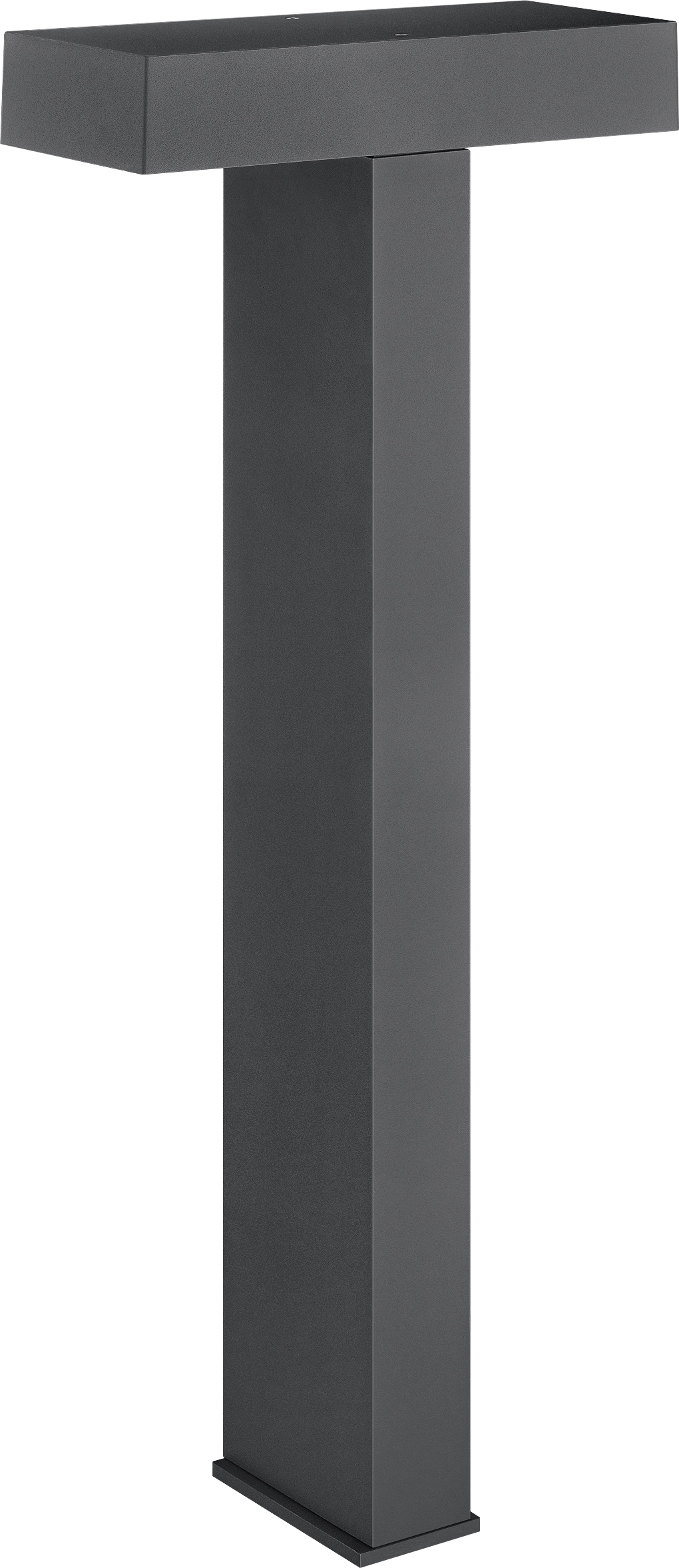

PTY424 LED
Family Spec Sheet Installation Instructions More Downloads

IP66/IP67. Class I. IK10. Marine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core. 5CE superior corrosion protection including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control.

PTY424 LED Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core
FastenersPCS
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10
Ingress ProtectionIP66/IP67
Corrosion Protection5CE
MountingLuminaire is factory-sealed and does not need to be opened during installation
Electrical
Ballast / DriverIntegral EC electronic converter
Surge Protection6/6 kV (SP10 optional)
Additional Information
LifetimeTa=25° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
114-9771asymmetric, side throw [S70/S70]LED-2x6/24W / 700 mA - 2700 K253080
114-9772asymmetric, side throw [S70/S70]LED-2x6/24W / 700 mA - 3000 K2717.480
114-9773asymmetric, side throw [S70/S70]LED-2x6/24W / 700 mA - 4000 K2904.880
114-9774asymmetric, side throw [S70/S70]LED-2x6/36W / 1050 mA - 2700 K4050.280
114-9775asymmetric, side throw [S70/S70]LED-2x6/36W / 1050 mA - 3000 K4247.880
114-9776asymmetric, side throw [S70/S70]LED-2x6/36W / 1050 mA - 4000 K4445.380
114-9777asymmetric, side throw [S70/S70]LED-2x6/52W / 1400 mA - 2700 K5136.880
114-9778asymmetric, side throw [S70/S70]LED-2x6/52W / 1400mA - 3000 K5433.280
114-9779asymmetric, side throw [S70/S70]LED-2x6/52W / 1400mA - 4000 K5680.280
114-9789asymmetric, forward throw [A60/A60]LED-2x6/24W / 700 mA - 2700 K2639.980
114-9790asymmetric, forward throw [A60/A60]LED-2x6/24W / 700 mA - 3000 K2835.580
114-9791asymmetric, forward throw [A60/A60]LED-2x6/24W / 700 mA - 4000 K303180
114-9792asymmetric, forward throw [A60/A60]LED-2x6/36W / 1050 mA - 2700 K3675.180
114-9793asymmetric, forward throw [A60/A60]LED-2x6/36W / 1050 mA - 3000 K3854.480
114-9794asymmetric, forward throw [A60/A60]LED-2x6/36W / 1050 mA - 4000 K4033.680
114-9795asymmetric, forward throw [A60/A60]LED-2x6/52W / 1400 mA - 2700 K4661.180
114-9796asymmetric, forward throw [A60/A60]LED-2x6/52W / 1400mA - 3000 K493080
114-9797asymmetric, forward throw [A60/A60]LED-2x6/52W / 1400mA - 4000 K5154.180
114-9780rectangular, side throw [R65/R65]LED-2x6/24W / 700 mA - 2700 K2278.780
114-9781rectangular, side throw [R65/R65]LED-2x6/24W / 700 mA - 3000 K2447.580
114-9782rectangular, side throw [R65/R65]LED-2x6/24W / 700 mA - 4000 K2616.380
114-9783rectangular, side throw [R65/R65]LED-2x6/36W / 1050 mA - 2700 K3622.680
114-9784rectangular, side throw [R65/R65]LED-2x6/36W / 1050 mA - 3000 K3799.380
114-9785rectangular, side throw [R65/R65]LED-2x6/36W / 1050 mA - 4000 K397680
114-9786rectangular, side throw [R65/R65]LED-2x6/52W / 1400 mA - 2700 K4594.580
114-9787rectangular, side throw [R65/R65]LED-2x6/52W / 1400mA - 3000 K4859.580
114-9788rectangular, side throw [R65/R65]LED-2x6/52W / 1400mA - 4000 K5080.480
Showing 1 to 27 of 27 entries.
