H270 mm | KTX234 LED
Home
Products
Bollards and Pathway Luminaires
KTX234 LED
Family Spec Sheet Installation Instructions More Downloads

IP66, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two-sided light output versions for 360° symmetric distribution. One-sided light output versions with 'rearward glow' feature. Ideal for pathway lighting applications. Luminaire spacing up to 5-8 m.

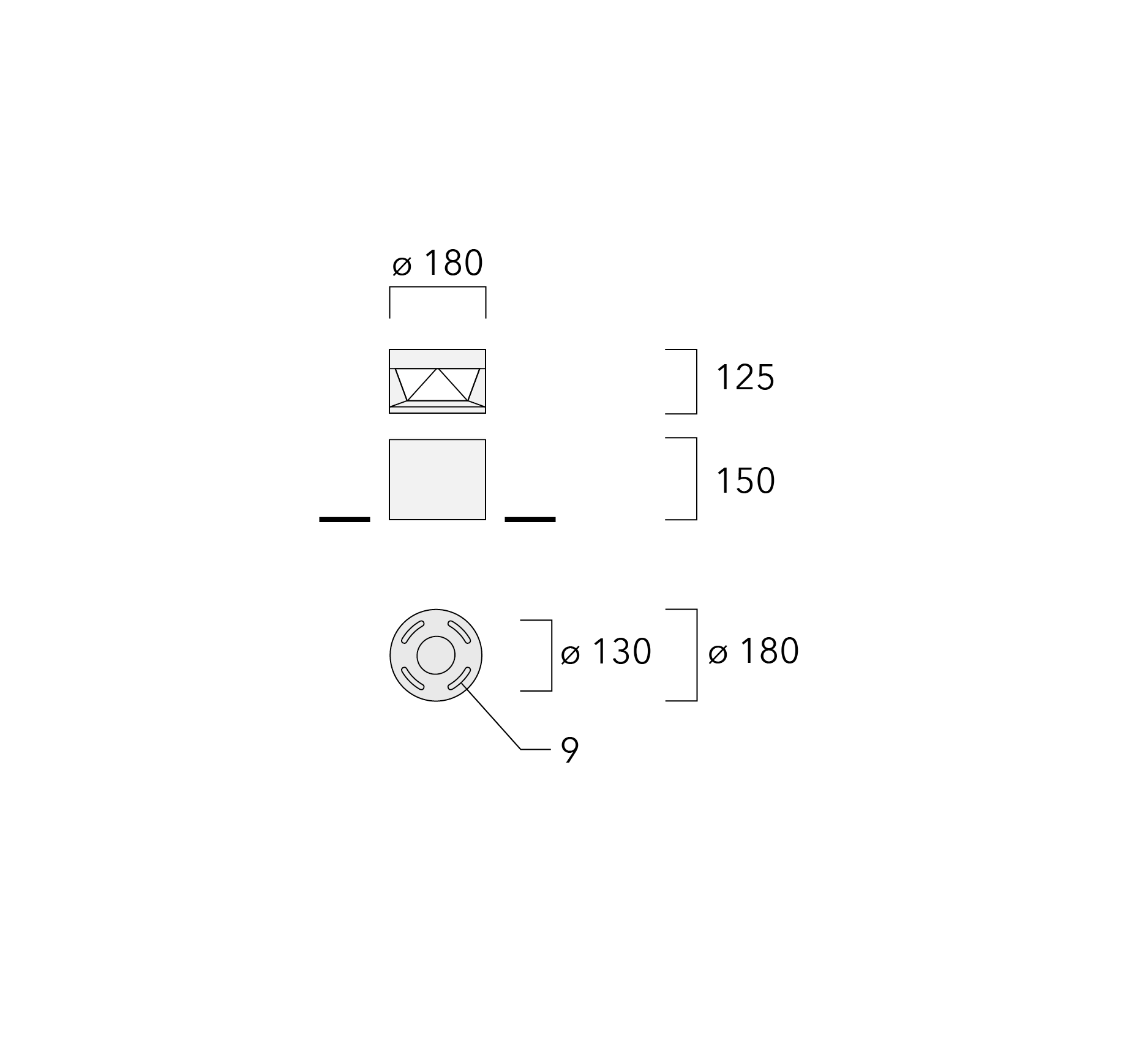

KTX234 LED Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, all-aluminium construction
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10
Ingress ProtectionIP66
FinishPowdercoat finish in black RAL 9004, grey aluminium RAL 9007, anthracite grey RAL 7016 or white RAL
Corrosion Protection5CE
MountingAnchor Bolts Included, Installation Template Provided With Order
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Surge Protection10/10 kV
Additional Information
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
114-9071symmetric distribution [C60]LED-6/18W / 1050 mA - 3000 K82580
114-9072symmetric distribution [C60]LED-6/18W / 1050 mA - 4000 K863.480
114-9073symmetric distribution [C60]LED-6/26W / 1400 mA - 3000 K1055.380
114-9074symmetric distribution [C60]LED-6/26W / 1400 mA - 4000 K1103.380
114-9065rectangular, side throw [R65]LED-3/9W / 1050 mA - 3000 K519.780
114-9066rectangular, side throw [R65]LED-3/9W / 1050 mA - 4000 K543.980
114-9067rectangular, side throw [R65]LED-3/13W / 1400 mA - 3000 K664.780
114-9068rectangular, side throw [R65]LED-3/13W / 1400 mA - 4000 K694.980
114-9077symmetric distribution [C60]LED-6/18W / 1050 mA - 2700 K786.780
114-9078symmetric distribution [C60]LED-6/26W / 1400 mA - 2700 K997.780
114-9075rectangular, side throw [R65]LED-3/9W / 1050 mA - 2700 K495.580
114-9076rectangular, side throw [R65]LED-3/13W / 1400 mA - 2700 K628.580
Showing 1 to 12 of 12 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
300-0461-APPlanted root ESV4
ItemDownload
Product Images
Photometrics
Installation Instructions
Revit Files - KTX234
