KTX234 LED
H: 10.63"
Home
Products
Bollards and Pathway Luminaires
KTX234 LED
Family Spec Sheet Installation Instructions More Downloads

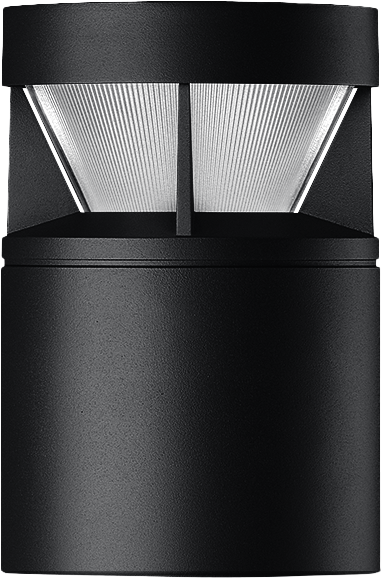

Ideal for pathway lighting applications. IP66. Class I. IK10. Marine-grade, all aluminum construction. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate lens. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. Advanced thermal management protects LEDs while optimizing lumens output. 0-10V Dimming comes standard with luminaire. Luminaire head is factory-sealed and does not need to be opened during installation. Two-sided light output versions for 360° symmetric distribution; one-sided light output versions with 'rearward glow' feature. Luminaire spacing up to 16-26 ft. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

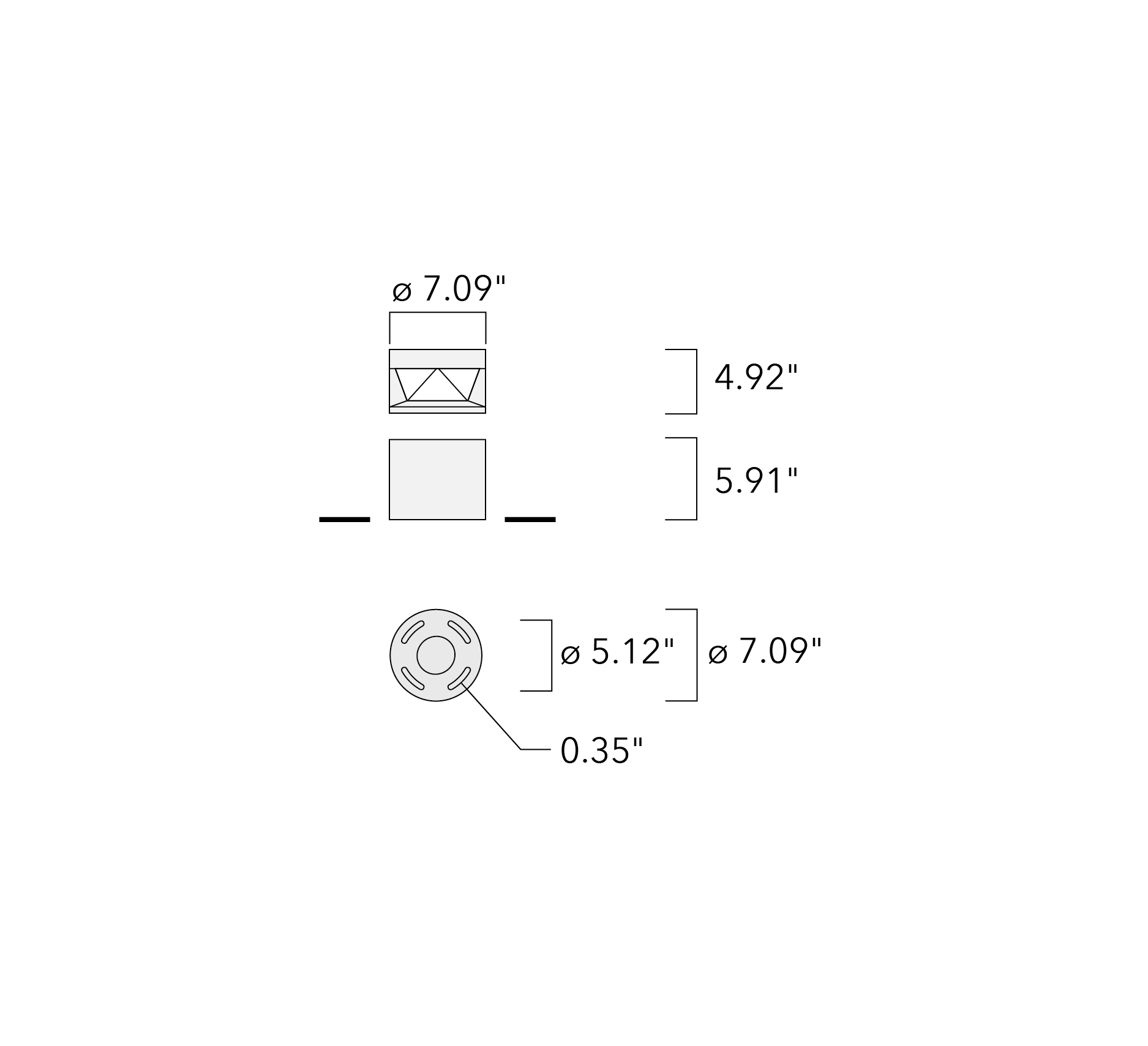

KTX234 LED Schematics
Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, all-aluminum construction
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10
Ingress ProtectionIP66
Corrosion Protection5CE
MountingAnchor Bolts Included, Installation Template Provided With Order
Electrical
Ballast / DriverIntegral EC electronic converter
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeLED >60,000 h Ta 25°(L70/B10) Control gear >50,000 h Ta 25°
Lead TimeThis is a new product release and may have an extended lead time.
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
114-9071symmetric distribution [C60]LED-6/18W / 1050 mA - 3000 K82580 ULD
114-9072symmetric distribution [C60]LED-6/18W / 1050 mA - 4000 K863.480 ULD
114-9073symmetric distribution [C60]LED-6/26W / 1400 mA - 3000 K1055.380 ULD
114-9074symmetric distribution [C60]LED-6/26W / 1400 mA - 4000 K1103.380 ULD
114-9065[R65] Type IV MediumLED-3/9W / 1050 mA - 3000 K519.780 ULD
114-9066[R65] Type IV MediumLED-3/9W / 1050 mA - 4000 K543.980 ULD
114-9067[R65] Type IV MediumLED-3/13W / 1400 mA - 3000 K664.780 ULD
114-9068[R65] Type IV MediumLED-3/13W / 1400 mA - 4000 K694.980 ULD
114-9077symmetric distribution [C60]LED-6/18W / 1050 mA - 2700 K786.780 ULD
114-9078symmetric distribution [C60]LED-6/26W / 1400 mA - 2700 K997.780 ULD
114-9075[R65] Type IV MediumLED-3/9W / 1050 mA - 2700 K495.580 ULD
114-9076[R65] Type IV MediumLED-3/13W / 1400 mA - 2700 K628.580 ULD
Showing 1 to 12 of 12 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
300-0461Planted root ESV4
ItemDownload
Product Images
Photometrics
Installation Instructions
WE-EF Brochure 2020 - KTX/KTY/ZFY200 LED
