FLC311 Space frame

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Mains voltage versions, DALI interface Class I. 1-10 V analogue dimming available on request; refer to accessory listings. 24VDC low voltage versions, 0-10 V analogue dimming (only 9W available) Class III available on request. Including terminal box, for mounting on ø 48-60 mm pipes or space frames. Optical accessories are factory-installed. To be specified at time of ordering.

Colors

Material

Body: Marine-grade, die-cast aluminium alloy

Fasteners: PCS hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK08

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

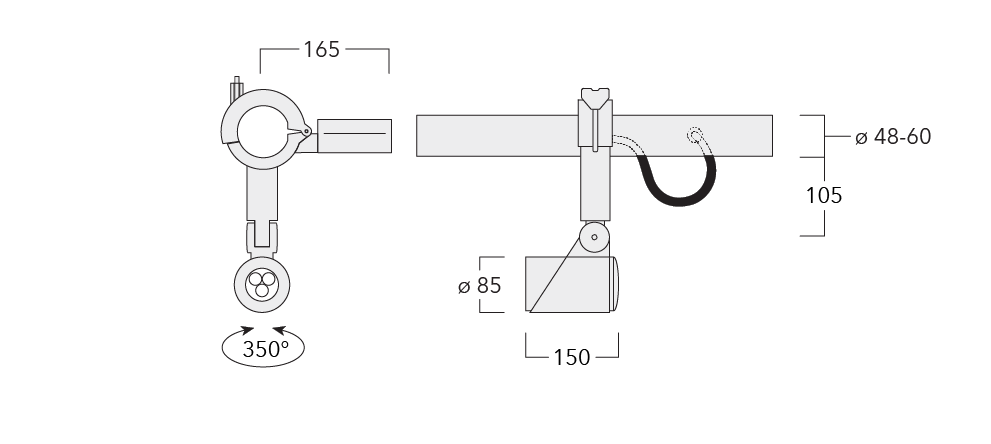

Mounting: Including terminal box, for mounting on ø 48-60 mm pipes or space frames

Electrical

Ballast / Driver: Integral EC electronic converter in thermally-separated compartment

Cable:

Power Factor:

Power Supply:

Surge Protection:

Additional Information

Lifetime: Ta=25° L90B10 > 90000h

:

Light Distribution

Delivered Lumen

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-7744	symmetric, wide beam [B]	LED-3/6W / 180 mA - 2700 K	595.4	80
145-7747	symmetric, wide beam [B]	LED-3/6W / 180 mA - 3000 K	595.4	80
145-7750	symmetric, wide beam [B]	LED-3/6W / 180 mA - 4000 K	641.2	80
145-7745	symmetric, wide beam [B]	LED-3/9W / 250 mA - 2700 K	835.8	80
145-7748	symmetric, wide beam [B]	LED-3/9W / 250 mA - 3000 K	835.8	80
145-7751	symmetric, wide beam [B]	LED-3/9W / 250 mA - 4000 K	893.1	80
145-7746	symmetric, wide beam [B]	LED-3/12W / 350 mA - 2700 K	1122.1	80
145-7749	symmetric, wide beam [B]	LED-3/12W / 350 mA - 3000 K	1122.1	80
145-7752	symmetric, wide beam [B]	LED-3/12W / 350 mA - 4000 K	1213.7	80
145-7753	symmetric, medium beam [M]	LED-3/6W / 180 mA - 2700 K	600.4	80
145-7756	symmetric, medium beam [M]	LED-3/6W / 180 mA - 3000 K	600.4	80
145-7759	symmetric, medium beam [M]	LED-3/6W / 180 mA - 4000 K	646.6	80
145-7754	symmetric, medium beam [M]	LED-3/9W / 250 mA - 2700 K	842.9	80
145-7757	symmetric, medium beam [M]	LED-3/9W / 250 mA - 3000 K	842.9	80
145-7760	symmetric, medium beam [M]	LED-3/9W / 250 mA - 4000 K	900.6	80
145-7755	symmetric, medium beam [M]	LED-3/12W / 350 mA - 2700 K	1131.6	80
145-7758	symmetric, medium beam [M]	LED-3/12W / 350 mA - 3000 K	1131.6	80
145-7761	symmetric, medium beam [M]	LED-3/12W / 350 mA - 4000 K	1224	80
145-7762	symmetric, very narrow beam [EE]	LED-3/6W / 180 mA - 2700 K	605.2	80
145-7765	symmetric, very narrow beam [EE]	LED-3/6W / 180 mA - 3000 K	605.2	80
145-7768	symmetric, very narrow beam [EE]	LED-3/6W / 180 mA - 4000 K	651.7	80
145-7763	symmetric, very narrow beam [EE]	LED-3/9W / 250 mA - 2700 K	849.6	80
145-7766	symmetric, very narrow beam [EE]	LED-3/9W / 250 mA - 3000 K	849.6	80
145-7769	symmetric, very narrow beam [EE]	LED-3/9W / 250 mA - 4000 K	907.8	80
145-7764	symmetric, very narrow beam [EE]	LED-3/12W / 350 mA - 2700 K	1140.5	80

Showing 1 to 25 of 63 Entries
