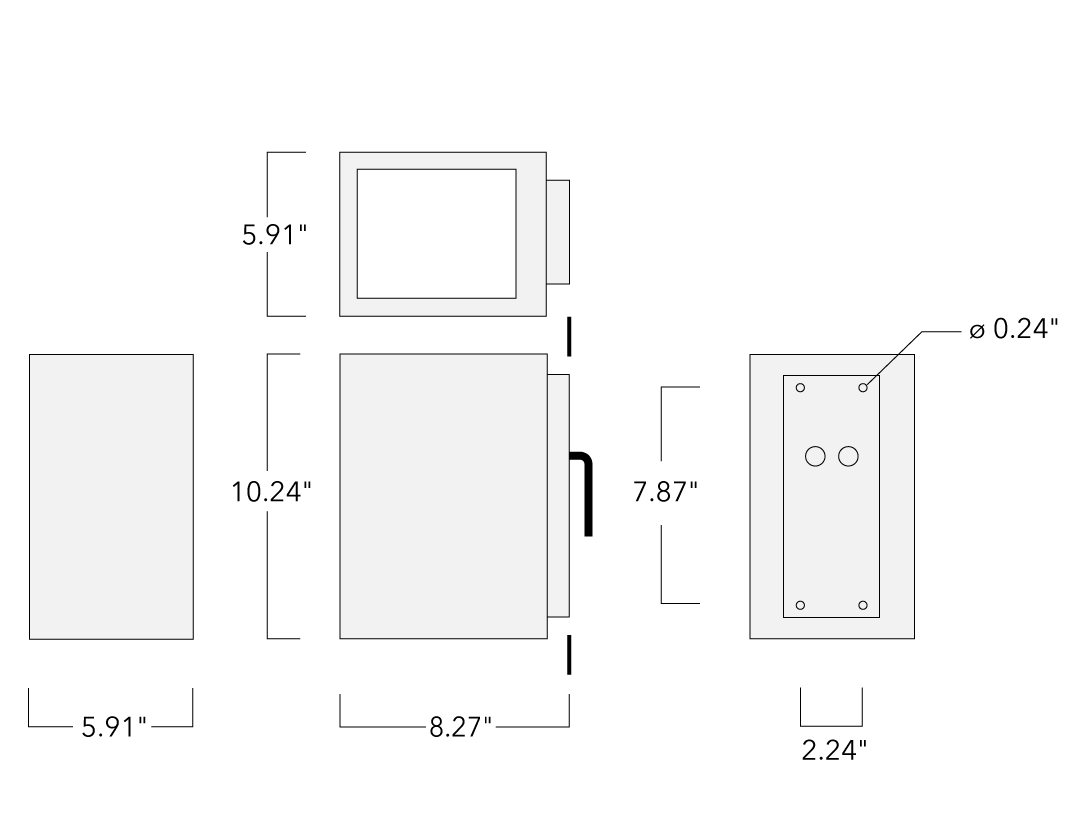

VLS420 LED

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Two cable entries. CAD-optimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1) For DarkSky compliant configurations of this product, please find the spec sheet and DarkSky certificate in the library.

Colors

RAL9004 Black

RAL9006 White

RAL9007 Grey Metallic

RAL7016 Anthracite grey

RAL9016 White

RAL8019 Dark Bronze

Powdercoat finish available in 35 different colours

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS hardware
Gasket	Silicone rubber gasket
Impact Protection	IK07
Ingress Protection	IP66
Finish	Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.
Corrosion Protection	5CE
Mounting

Electrical

Ballast / Driver	Standard. Optional DALI version available. To be specified at time of ordering.
Cable	Two cable entries
Power Factor
Power Supply	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge Protection

Additional Information

Lifetime	Ta=25°/40° L90B10 > 90000h

BUG Rating	Please see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Light Distribution

Delivered Lumen

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
131-9153	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1172.9	80
131-9157	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1253.8	80
131-9339	symmetric, narrow beam up and down [N/N]	LED-2x6/24W / 700 mA - 2700 K	2447.1	80
131-9154	symmetric, narrow beam [N]	LED-6/12W / 700 mA - 3000 K	1313.8	80
131-9158	symmetric, narrow beam [N]	LED-6/12W / 700 mA - 4000 K	1404.4	80
131-9152	asymmetric, forward throw [A60]	LED-6/12W / 700 mA - 3000 K	852.9	80
131-9156	asymmetric, forward throw [A60]	LED-6/12W / 700 mA - 4000 K	911.7	80
131-9161	symmetric, medium beam up and forward throw down [M/A60]	LED-2x6/24W / 700 mA - 3000 K	2026.1	80
131-9167	symmetric, medium beam up and forward throw down [M/A60]	LED-2x6/24W / 700 mA - 4000 K	2165.8	80
131-9162	symmetric, narrow beam up and forward-throw down [N/A60]	LED-2x6/24W / 700 mA - 3000 K	2167.2	80
131-9168	symmetric, narrow beam up and forward-throw down [N/A60]	LED-2x6/24W / 700 mA - 4000 K	2316.6	80
131-9164	symmetric, narrow beam up and medium beam down [N/M]	LED-2x6/24W / 700 mA - 3000 K	2487.3	80
131-9170	symmetric, narrow beam up and medium beam down [N/M]	LED-2x6/24W / 700 mA - 4000 K	2658.8	80
131-9165	symmetric, narrow beam up and down [N/N]	LED-2x6/24W / 700 mA - 3000 K	2628.4	80
131-9171	symmetric, narrow beam up and down [N/N]	LED-2x6/24W / 700 mA - 4000 K	2809.6	80
131-0210	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 3000 K	1739.1	80
131-0211	symmetric, medium beam [M]	LED-6/18W / 1050 mA - 4000 K	1820	80
131-0212	symmetric, narrow beam [N]	LED-6/18W / 1050 mA - 3000 K	1948	80
131-0213	symmetric, narrow beam [N]	LED-6/18W / 1050 mA - 4000 K	2038.6	80
131-0214	asymmetric, forward throw [A60]	LED-6/18W / 1050 mA - 3000 K	1264.6	80
131-0215	asymmetric, forward throw [A60]	LED-6/18W / 1050 mA - 4000 K	1323.4	80
131-9926	symmetric, medium beam up and down [M/M]	LED-2x6/36W / 1050 mA - 3000 K	3478.9	80
131-9931	symmetric, medium beam up and down [M/M]	LED-2x6/36W / 1050 mA - 4000 K	3640.7	80
131-9927	symmetric, narrow beam up and medium beam down [N/M]	LED-2x6/36W / 1050 mA - 3000 K	3688.1	80
131-9932	symmetric, narrow beam up and medium beam down [N/M]	LED-2x6/36W / 1050 mA - 4000 K	3859.6	80

Showing 1 to 25 of 73 Entries
