Surface-Mounted Wall Luminaires

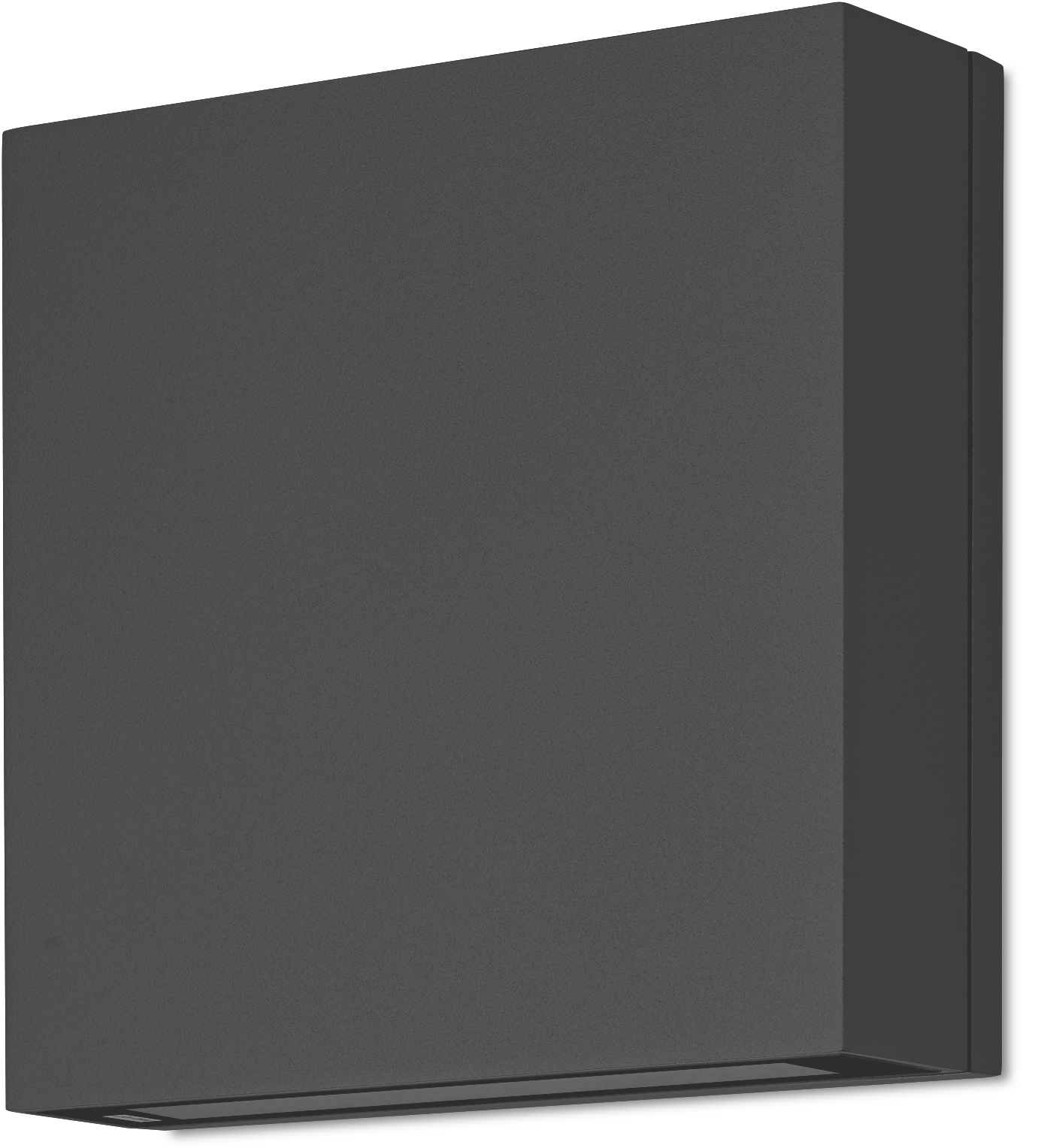

QLS420 LED
Family Spec Sheet Installation Instructions More Downloads

IP66, Class I. IK07. Surface mounted LED wall luminaire. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Integral driver. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 0-10V Dimming on request. Suitable for installation over 4" recessed junction box. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. ADA (American Disabilities Act) Compliant. For DarkSky compliant configurations of this product, please find the spec sheet and DarkSky certificate in the library.

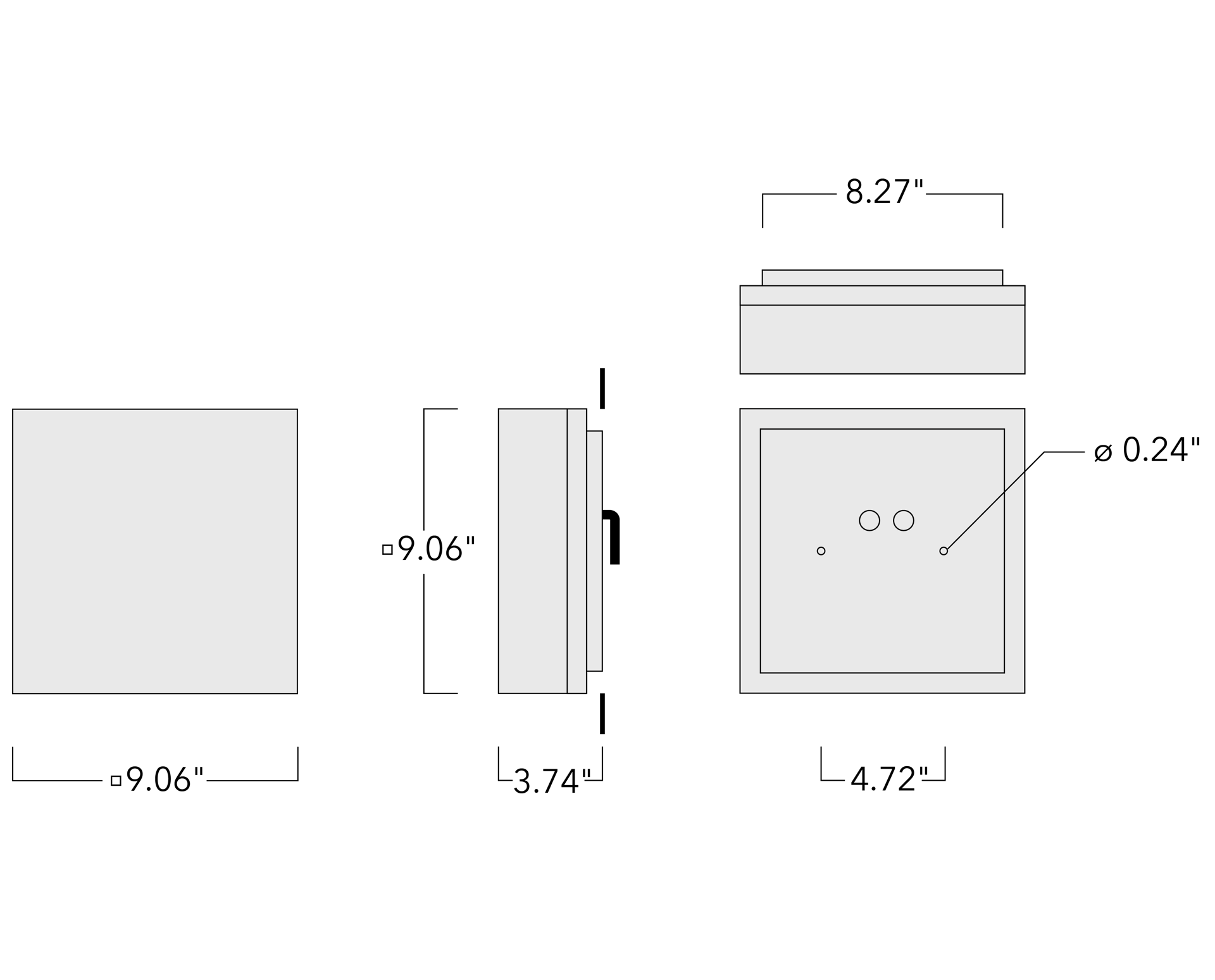

QLS420 LED Schematics
Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyLuminaire body and lens frame constructed in die cast aluminum.
FastenersPCS polymer coated stainless steel
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.
Corrosion Protection5CE
MountingSuitable for installation over a standard 4” recessed junction box.
Electrical
Ballast / DriverIntegral EC electronic converter
CableTwo cable entries
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
131-9438symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1172.980 ULD
131-9441symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1253.880 ULD
131-9446symmetric, medium beam up and down [M/M]LED-2x6/24W / 700 mA - 3000 K2346.280 ULD
131-9451symmetric, medium beam up and down [M/M]LED-2x6/24W / 700 mA - 4000 K2508.180 ULD
131-9437asymmetric, side throw beam [S]LED-6/12W / 700 mA - 3000 K1107.780 ULD
131-9440asymmetric, side throw beam [S]LED-6/12W / 700 mA - 4000 K1184.180 ULD
131-9444symmetric, medium beam up and side throw down [M/S]LED-2x6/24W / 700 mA - 3000 K2280.680 ULD
131-9445symmetric, narrow beam up and side-throw down [N/S]LED-2x6/24W / 700 mA - 3000 K2421.780 ULD
131-9449symmetric, medium beam up and side throw down [M/S]LED-2x6/24W / 700 mA - 4000 K2437.980 ULD
131-9450symmetric, narrow beam up and side-throw down [N/S]LED-2x6/24W / 700 mA - 4000 K2588.780 ULD
131-9461symmetric, narrow beam [N]LED-6/12W / 700 mA - 4000 K1404.480 ULD
131-9453symmetric, narrow beam up and down [N/N]LED-2x6/24W / 700 mA - 3000 K2628.480 ULD
131-9454symmetric, narrow beam up and down [N/N]LED-2x6/24W / 700 mA - 4000 K2809.680 ULD
131-9455rectangular asymmetric Type II [R45]LED-6/12W / 700 mA - 3000 K1184.480 ULD
131-9457rectangular asymmetric Type II [R45]LED-6/12W / 700 mA - 4000 K1266.180 ULD
131-9456medium beam up and forward throw down [M/R45]LED-2x6/24W / 700 mA - 3000 K2357.780 ULD
131-9458medium beam up and forward throw down [M/R45]LED-2x6/24W / 700 mA - 4000 K2520.380 ULD
131-9464symmetric narrow beam up and forward throw down [E/R45]LED-2x6/24W / 700 mA - 3000 K2498.780 ULD
131-9465symmetric narrow beam up and forward throw down [E/R45]LED-2x6/24W / 700 mA - 4000 K267180 ULD
131-0186symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K1739.180 ULD
131-0187symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K182080 ULD
131-0188symmetric, narrow beam [N]LED-6/18W / 1050 mA - 3000 K194880 ULD
131-0189symmetric, narrow beam [N]LED-6/18W / 1050 mA - 4000 K2038.680 ULD
131-0190rectangular asymmetric Type II [R45]LED-6/18W / 1050 mA - 3000 K1756.280 ULD
131-0191rectangular asymmetric Type II [R45]LED-6/18W / 1050 mA - 4000 K1837.980 ULD
131-9756symmetric, medium beam up and down [M/M]LED-2x6/36W / 1050 mA - 3000 K3478.980 ULD
131-9761symmetric, medium beam up and down [M/M]LED-2x6/36W / 1050 mA - 4000 K3640.780 ULD
131-9758symmetric, narrow beam up and down [N/N]LED-2x6/36W / 1050 mA - 3000 K3897.280 ULD
131-9763symmetric, narrow beam up and down [N/N]LED-2x6/36W / 1050 mA - 4000 K4078.580 ULD
131-9757symmetric, narrow beam up and medium beam down [N/M]LED-2x6/36W / 1050 mA - 3000 K3688.180 ULD
131-9762symmetric, narrow beam up and medium beam down [N/M]LED-2x6/36W / 1050 mA - 4000 K3859.680 ULD
131-9754medium beam up and forward throw down [M/R45]LED-2x6/36W / 1050 mA - 3000 K3495.880 ULD
131-9759medium beam up and forward throw down [M/R45]LED-2x6/36W / 1050 mA - 4000 K3658.480 ULD
131-9755symmetric narrow beam up and forward throw down [E/R45]LED-2x6/36W / 1050 mA - 3000 K370580 ULD
131-9760symmetric narrow beam up and forward throw down [E/R45]LED-2x6/36W / 1050 mA - 4000 K3877.380 ULD
131-0192symmetric, medium beam [M]LED-6/26W / 1400 mA - 3000 K2224.580 ULD
131-0193symmetric, medium beam [M]LED-6/26W / 1400 mA - 4000 K2325.680 ULD
131-0194symmetric, narrow beam [N]LED-6/26W / 1400 mA - 3000 K2491.780 ULD
131-0195symmetric, narrow beam [N]LED-6/26W / 1400 mA - 4000 K2604.980 ULD
131-0196rectangular asymmetric Type II [R45]LED-6/26W / 1400 mA - 3000 K2246.380 ULD
131-0197rectangular asymmetric Type II [R45]LED-6/26W / 1400 mA - 4000 K2348.480 ULD
131-9766symmetric, medium beam up and down [M/M]LED-2x6/52W / 1400mA - 3000 K4449.880 ULD
131-9771symmetric, medium beam up and down [M/M]LED-2x6/52W / 1400mA - 4000 K465280 ULD
131-9768symmetric, narrow beam up and down [N/N]LED-2x6/52W / 1400mA - 3000 K4984.880 ULD
131-9773symmetric, narrow beam up and down [N/N]LED-2x6/52W / 1400mA - 4000 K5211.480 ULD
131-9767symmetric, narrow beam up and medium beam down [N/M]LED-2x6/52W / 1400mA - 3000 K4717.380 ULD
131-9772symmetric, narrow beam up and medium beam down [N/M]LED-2x6/52W / 1400mA - 4000 K4931.780 ULD
131-9764medium beam up and forward throw down [M/R45]LED-2x6/52W / 1400mA - 3000 K4471.480 ULD
131-9769medium beam up and forward throw down [M/R45]LED-2x6/52W / 1400mA - 4000 K4674.780 ULD
131-9765symmetric narrow beam up and forward throw down [E/R45]LED-2x6/52W / 1400mA - 3000 K4738.980 ULD
Showing 1 to 50 of 88 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
131-6900_LS420/430 LED Emergency Lighting Package
ItemDownload
