Surface Mounted Wall Luminaires

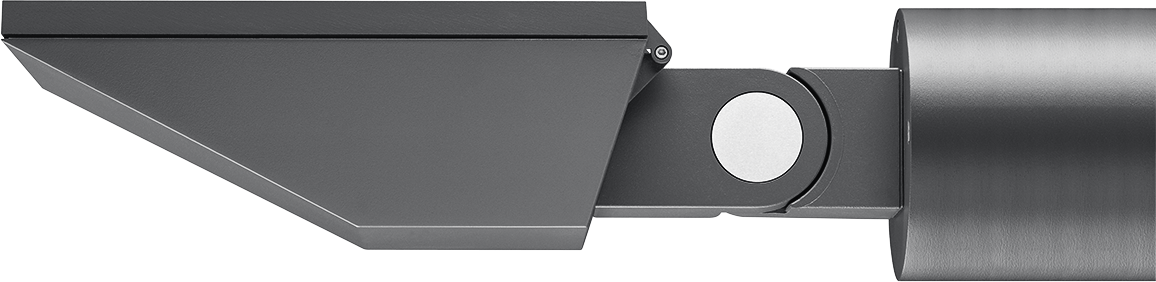

PIA230 LED

PIA230 LED

Family Spec Sheet

IP66. Class I. IK08. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. CAD-optimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Luminaire +/-30° tiltable. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

PIA230 LED Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverIntegral EC electronic converter
Cable
Power Factor
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
108-1660[S65] Type III MediumLED-12/24W / 700 mA - 3000 K2780.380
108-1661[S65] Type III MediumLED-12/24W / 700 mA - 4000 K2972.180
108-1747[S65] Type III MediumLED-18/36W / 700 mA - 3000 K4170.580
108-1748[S65] Type III MediumLED-18/36W / 700 mA - 4000 K4458.180
108-1664[R65] Type IV MediumLED-12/24W / 700 mA - 3000 K2434.480
108-1665[R65] Type IV MediumLED-12/24W / 700 mA - 4000 K2602.380
108-1749[R65] Type IV MediumLED-18/36W / 700 mA - 3000 K3651.780
108-1750[R65] Type IV MediumLED-18/36W / 700 mA - 4000 K3903.580
108-1666[A60] Type IV Very ShortLED-12/24W / 700 mA - 3000 K2606.480
108-1667[A60] Type IV Very ShortLED-12/24W / 700 mA - 4000 K2786.280
108-1751[A60] Type IV Very ShortLED-18/36W / 700 mA - 3000 K3909.680
108-1752[A60] Type IV Very ShortLED-18/36W / 700 mA - 4000 K4179.380
108-2535[S65] Type III MediumLED-12/24W / 700 mA - 2700 K2588.680
108-2536[S65] Type III MediumLED-18/36W / 700 mA - 2700 K3882.980
108-2537[A60] Type IV Very ShortLED-12/24W / 700 mA - 2700 K2426.780
108-2538[A60] Type IV Very ShortLED-18/36W / 700 mA - 2700 K364080
108-2539[R65] Type IV MediumLED-12/24W / 700 mA - 2700 K2266.580
108-2540[R65] Type IV MediumLED-18/36W / 700 mA - 2700 K3399.880
