FLC100 series

FLC122 LED

Static White

Choose a family:

⌀4.37" | FLC122 LED ⌀7.48" | FLC142 LED
Home
Products
Surface-Mounted Wall Luminaires

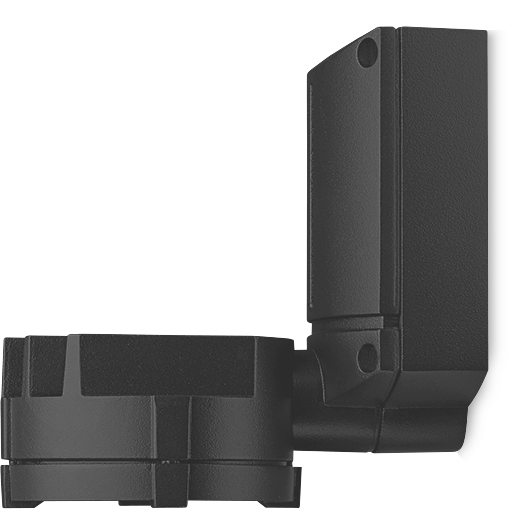

FLC122 LED
Family Spec Sheet Installation Instructions More Downloads

IP55. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Advanced thermal management protects LEDs while optimizing lumens output. 0-10V Dimming comes standard with luminaire. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

FLC122 LED Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyLuminaire body and lens frame constructed in die-cast aluminum.
FastenersPCS polymer coated stainless steel
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP55
FinishPowder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.
Corrosion Protection5CE
MountingSuitable for installation over 4" recessed junction box in uplight or downlight position.
Electrical
Ballast / DriverIntegral driver in thermally separated compartment.
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
Ambient TemperatureTa less than 25 deg C.

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
145-9374symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1511.880
145-9375symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 3000 K1496.580
145-9377symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1616.180
145-9378symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 4000 K1599.780
145-9382symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 3000 K1610.780
145-9383symmetric, wide beam [W]LED-6/12W / 700 mA - 3000 K1347.180
145-9384symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 4000 K1721.880
145-9385symmetric, wide beam [W]LED-6/12W / 700 mA - 4000 K144080
Showing 1 to 8 of 8 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
145-0030Snoot ET
