FLC300 Série

FLC321 Space frame

Static White

Choisissez une variante :

RAIL66
Space Frame

Choisissez une famille :

FLC301 Space frame
Diameter ⌀: 2.28 in
FLC311 Space frame
Diameter ⌀: 3.35 in
FLC321 Space frame
Diameter ⌀: 4.53 in
Accueil
Produits
RAIL66
FLC321 Space frame
Fiche technique de la famille Instructions d'installation Autres téléchargements

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. 12W, 18W, 26W / 120-277V / 0-10V Dimming. Including terminal box, for mounting on ø 1.89-2.36 in pipes or space frames. Optical accessories are factory-installed. To be specified at time of ordering.

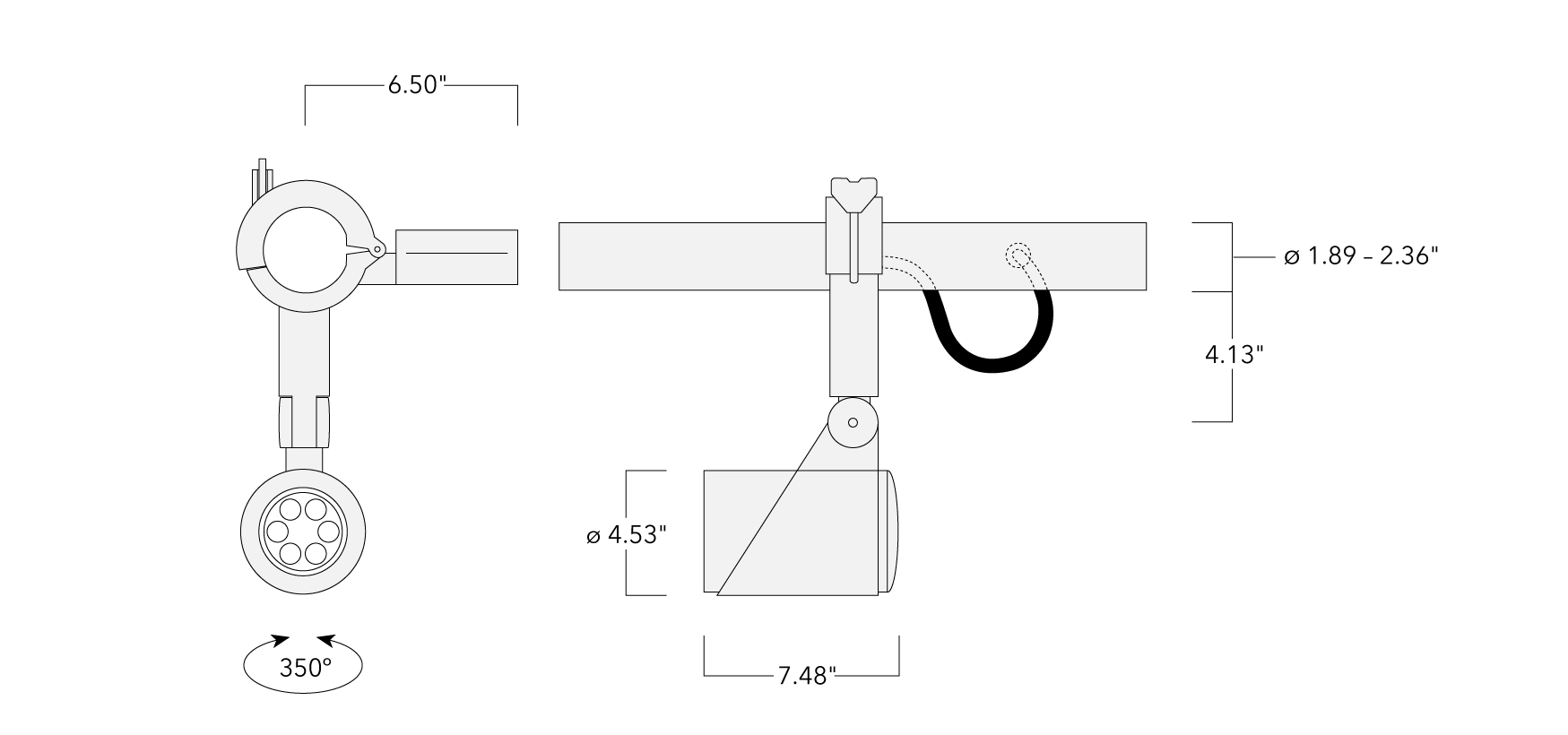

FLC321 Space frame Schematics
Couleurs
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
Description du matériel
CorpsMarine-grade, die-cast aluminium alloy
VisseriePCS hardware
JointSilicone CCG® Controlled Compression Gasket
IKIK08
IPIP66
Protection contre la corrosion5CE
MontageIncluding terminal box, for mounting on ø 1.89-2.36 in pipes or space frames
Description électrique
Driver120-277V AC/50-60 Hz
Informations complémentaires
LifetimeTa=25°/40° L90B10 > 90000h

Données en sortie de luminaire

To
Code produitDistribution photométriqueSource lumineuseDonnées en sortie de luminaireIRCCaractéristiquesPhotométrie
TextePDF
145-7948symmetric, wide beam [W]LED-6/12W / 700 mA - 2700 K887.880
145-7950symmetric, wide beam [W]LED-6/12W / 700 mA - 3000 K953.580
145-7952symmetric, wide beam [W]LED-6/12W / 700 mA - 4000 K1019.380
145-7954symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1162.680
145-7956symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1248.780
145-7958symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1334.980
145-7960symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 2700 K1224.780
145-7962symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 3000 K1315.480
145-7964symmetric, very narrow beam [VN]LED-6/12W / 700 mA - 4000 K1406.280
145-7966symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 2700 K1259.780
145-7968symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 3000 K135380
145-7970symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/12W / 700 mA - 4000 K1446.380
145-7949symmetric, wide beam [W]LED-6/18W / 1050 mA - 2700 K123380
145-7951symmetric, wide beam [W]LED-6/18W / 1050 mA - 3000 K1331.780
145-7953symmetric, wide beam [W]LED-6/18W / 1050 mA - 4000 K1413.980
145-7955symmetric, medium beam [M]LED-6/18W / 1050 mA - 2700 K1614.880
145-7957symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K1743.980
145-7959symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K1851.680
145-7961symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 2700 K170180
145-7963symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 3000 K1837.180
145-7965symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 4000 K1950.580
145-7967symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 2700 K1749.680
145-7969symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 3000 K1889.580
145-7971symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/18W / 1050 mA - 4000 K2006.280
145-7368symmetric, wide beam [W]LED-6/26W / 1400 mA - 2700K1665.880 ULD
145-7369symmetric, wide beam [W]LED-6/26W / 1400 mA - 3000K1761.980 ULD
145-7370symmetric, wide beam [W]LED-6/26W / 1400 mA - 4000K184280 ULD
145-7371symmetric, medium beam [M]LED-6/26W / 1400 mA - 2700K2179.380 ULD
145-7372symmetric, medium beam [M]LED-6/26W / 1400 mA - 3000K230580 ULD
145-7373symmetric, medium beam [M]LED-6/26W / 1400 mA - 4000K2409.880 ULD
145-7374symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 2700K2258.580 ULD
145-7375symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 3000K2388.880 ULD
145-7376symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 4000K2497.480 ULD
145-7377symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 2700K2319.780 ULD
145-7378symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 3000K2453.580 ULD
145-7379symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-6/26W / 1400 mA - 4000K256580 ULD
145-7960linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 2700 K109680
145-7962linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 3000 K1177.280
145-7964linear spread, very narrow beam [VN]LED-6/12W / 700 mA - 4000 K1258.480
145-7961linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 2700 K1522.280
145-7963linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 3000 K164480
145-7965linear spread, very narrow beam [VN]LED-6/18W / 1050 mA - 4000 K1745.580
145-7374linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 2700K2027.280 ULD
145-7375linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 3000K2144.180 ULD
145-7376linear spread, very narrow beam [VN]LED-6/26W / 1400 mA - 4000K2241.680 ULD
145-7966linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 2700 K1125.580
145-7968linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 3000 K1208.880
145-7970linear spread, very narrow beam, 'sharp cut-off'LED-6/12W / 700 mA - 4000 K1292.280
145-7967linear spread, very narrow beam, 'sharp cut-off'LED-6/18W / 1050 mA - 2700 K1563.180
145-7969linear spread, very narrow beam, 'sharp cut-off'LED-6/18W / 1050 mA - 3000 K1688.280
Affichage de 1 à 50 sur 63 résultats
