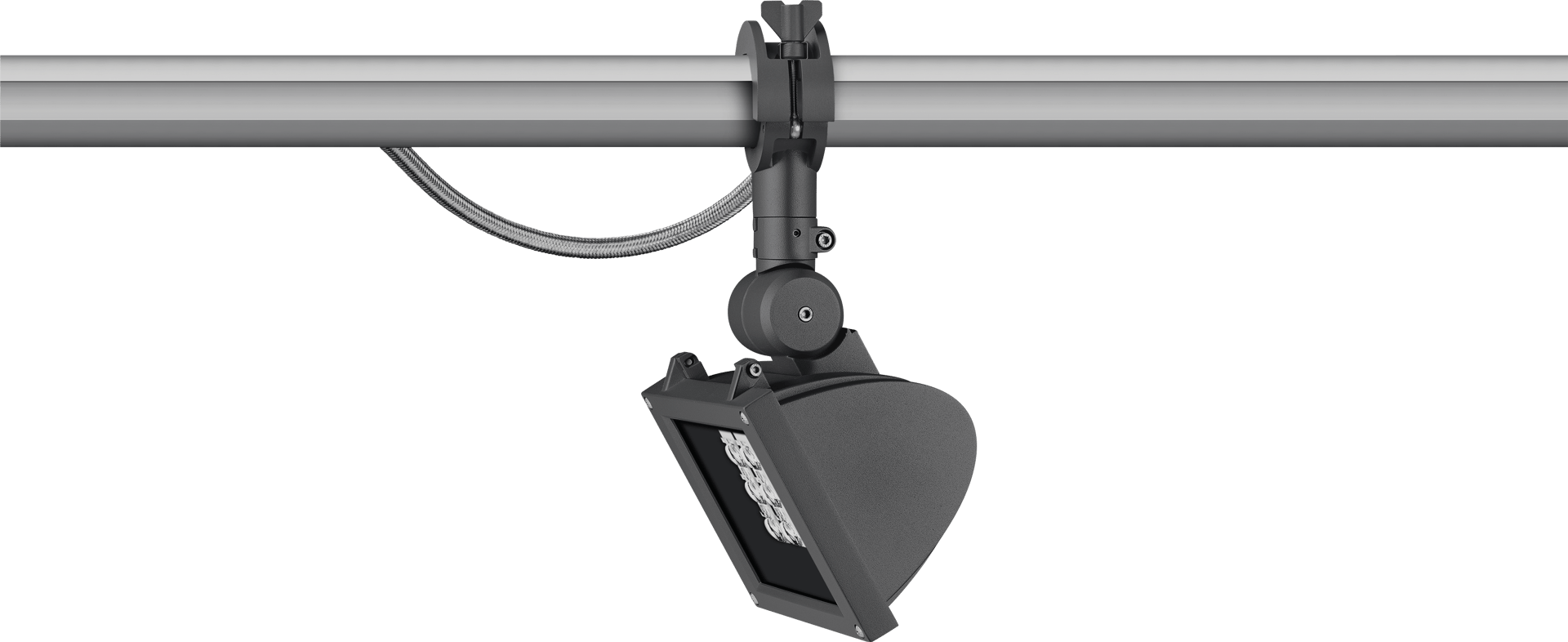

RAIL66 system allows for slidable placement. IP66. Class I. IK08. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. Including 1 ft of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system. CAD-optimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. Advanced thermal management protects LEDs while optimizing lumens output. 0-10V Dimming comes standard with luminaire. Luminaire is factory-sealed and does not need to be opened during installation. Mount permits 355° rotation and 180° tilt. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

FLB141 LED #6 Symmetric Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
161-5932symmetric, wide beam [W]LED-6/18W / 1050 mA - 3000 K2018.880
161-5934symmetric, wide beam [W]LED-6/18W / 1050 mA - 4000 K2112.780
161-5933symmetric, wide beam [W]LED-6/26W / 1400 mA - 3000 K2582.280
161-5935symmetric, wide beam [W]LED-6/26W / 1400 mA - 4000 K2699.680
161-5936symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K2167.280
161-5938symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K226880
161-5937symmetric, medium beam [M]LED-6/26W / 1400 mA - 3000 K277280
161-5939symmetric, medium beam [M]LED-6/26W / 1400 mA - 4000 K289880
161-5940symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 3000 K2165.680
161-5942symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 4000 K2266.480
161-5941symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 3000 K277080
161-5943symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 4000 K2895.980
Showing 1 to 12 of 12 entries.
