Tunable White Profile Projector [FP] for framing applications, polygon shape. Spherical/triple flat convex lens system. Aperture angle ranges from 14.6-19.8°. IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland, second gland for through wiring on request. PMMA LED lens array. Integral driver, thermally separated. Factory-installed LED circuit board. Tunable White technology. LED board can be removed for upgrading. DMX interface. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

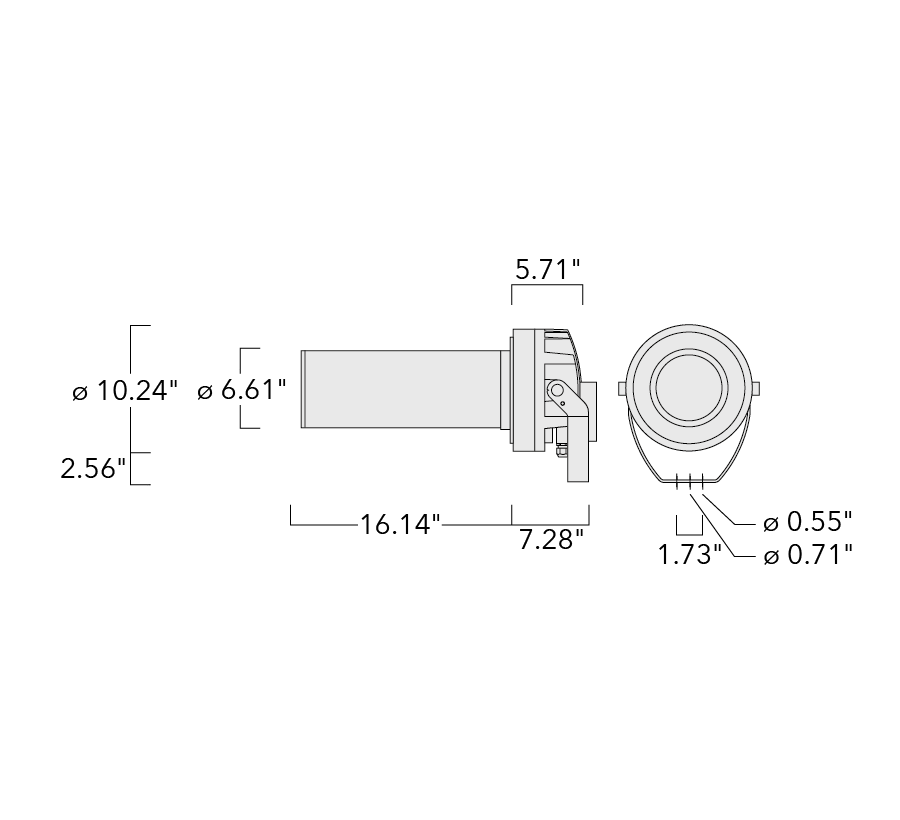

FLC230 LED TUNABLE WHITE FRAMING PROJECTOR Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Finish
Corrosion Protection5CE
Mounting
Electrical
Ballast / Driver120-277V DMX
Cable
Power Factor> 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V. DMX enabled driver.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
139-3010_minsymmetric Framing-Projector [FP] - min aperture angleLED-FT-32W / 450 mA - 2200-6000 K1516.980
139-3010_maxsymmetric Framing-Projector [FP] - max aperture angleLED-FT-32W / 450 mA - 2200-6000 K1349.680
Showing 1 to 2 of 2 Entries
