ZFT430 LED

ZFT430 LED

Family Spec Sheet

IP66. Class I. IK09. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. PMMA main lens. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Luminaire is factory-sealed and does not need to be opened during installation. Recommended mounting height 10-20 ft. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

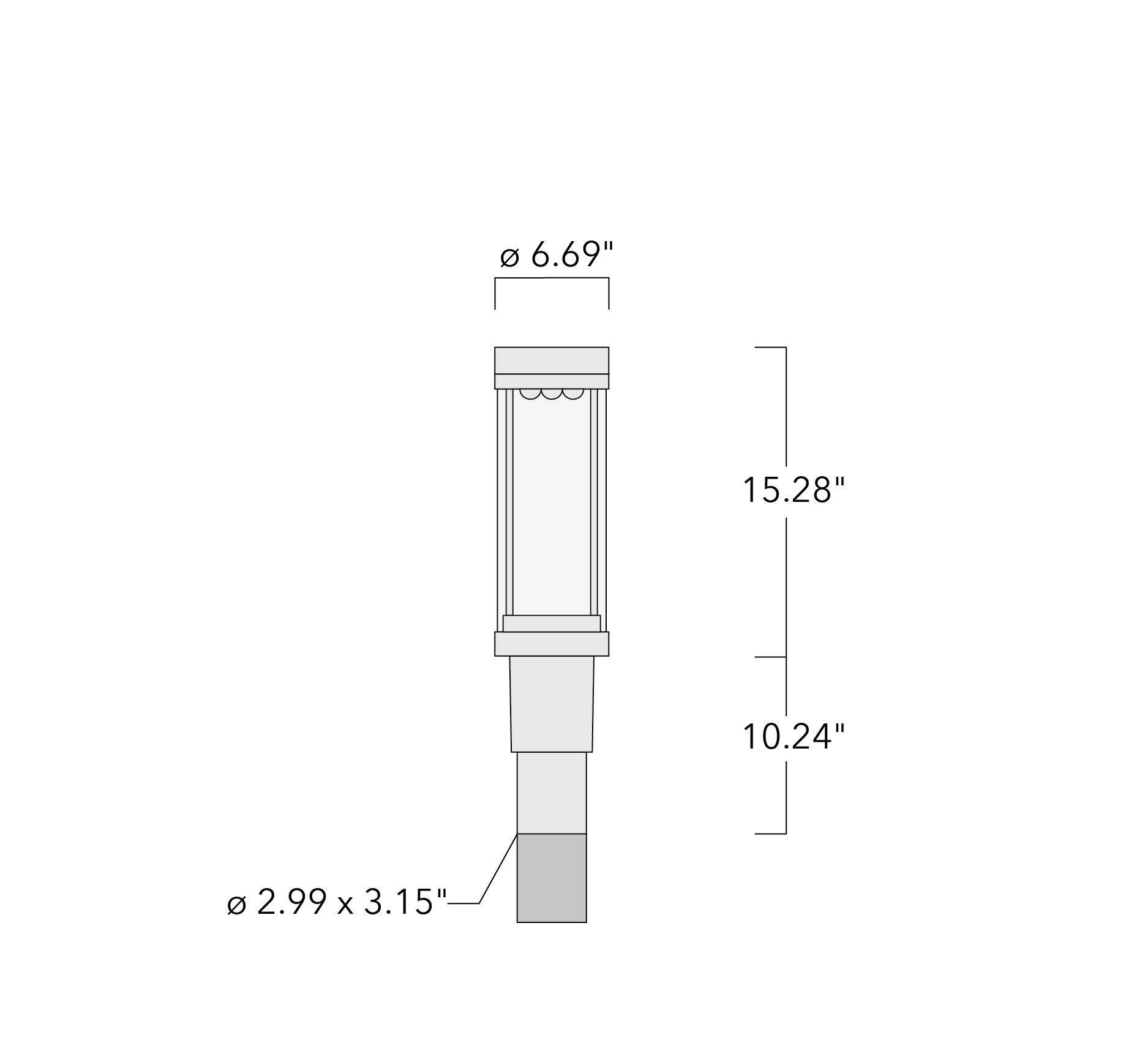

ZFT430 LED Schematics
Colors
Material

Body: Marine-grade die-cast aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel hardware

Gasket: Silicone rubber gasket

Impact Protection: IK09

Ingress Protection: IP66

Finish: Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007, and Dark Bronze RAL8019.

Corrosion Protection: 5CE

Mounting: Luminaire requires a 2.99" diameter x 3.15" long pole top tenon

Electrical

Ballast / Driver: Integral EC electronic converter

Cable:

Power Factor: > 0.9

Power Supply: Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Surge Protection: In-line bracket 10kV Surge Protector

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

:

:

Light Distribution

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
115-1287[R65] Type IV MediumLED-9/18W / 700 mA - 3000 K2216.680
115-1288[R65] Type IV MediumLED-9/18W / 700 mA - 4000 K2369.480
115-1291[S65] Type III MediumLED-9/18W / 700 mA - 3000 K2131.280
115-1292[S65] Type III MediumLED-9/18W / 700 mA - 4000 K2278.280
115-1361[R65] Type IV MediumLED-9/9W / 350 mA - 3000 K1184.780
115-1362[R65] Type IV MediumLED-9/9W / 350 mA - 4000 K1299.4
115-1363[S65] Type III MediumLED-9/9W / 350 mA - 3000 K1139.180
115-1364[S65] Type III MediumLED-9/9W / 350 mA - 4000 K1249.3
115-1440[R65] Type IV MediumLED-9/27W / 1050 mA - 3000 K3286.680
115-1441[R65] Type IV MediumLED-9/27W / 1050 mA - 4000 K3439.580
115-1438[S65] Type III MediumLED-9/27W / 1050 mA - 3000 K316080
115-1439[S65] Type III MediumLED-9/27W / 1050 mA - 4000 K330780
115-1599[S65] Type III MediumLED-9/9W / 350 mA - 2700 K1065.680
115-1600[S65] Type III MediumLED-9/18W / 700 mA - 2700 K1984.280
115-1601[S65] Type III MediumLED-9/27W / 1050 mA - 2700 K3013.180
115-1602[R65] Type IV MediumLED-9/9W / 350 mA - 2700 K1108.380
115-1603[R65] Type IV MediumLED-9/18W / 700 mA - 2700 K2063.780
115-1604[R65] Type IV MediumLED-9/27W / 1050 mA - 2700 K3133.780
