VFL540 LED

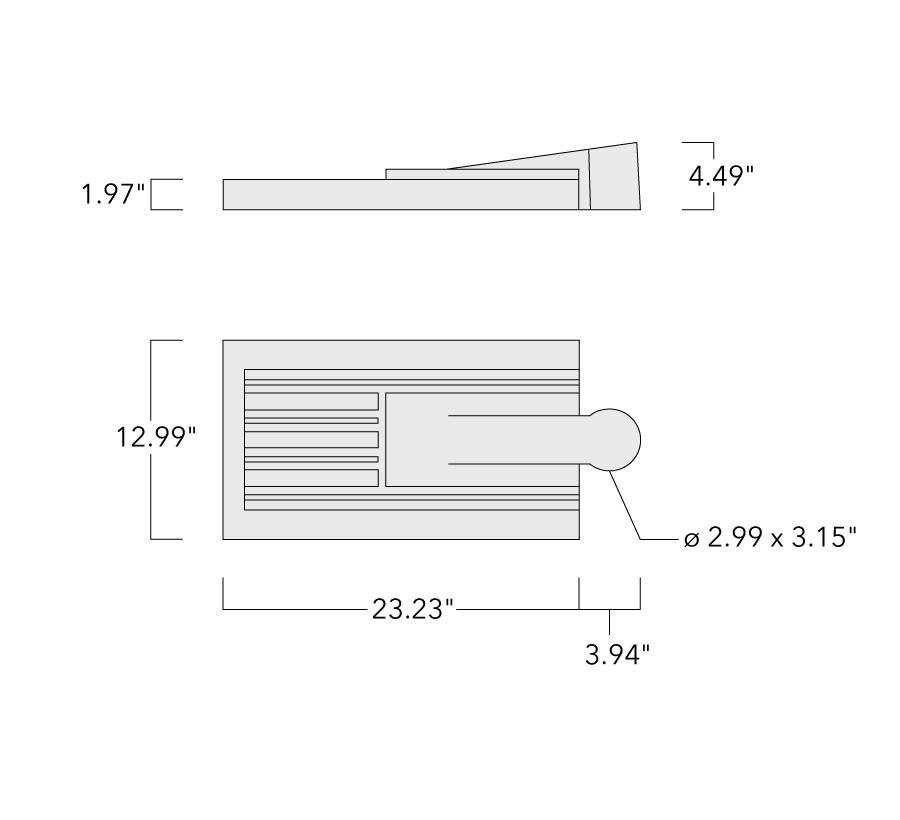

Pole or wall-mounted LED luminaire with integrated heat sinks. IP66. Class I or Class II. IK08. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. RFC® Reflection Free Contour main lens. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Spigot Ø 3”x5” optional available, must be indicated during order placement. Luminaire is factory-sealed and does not need to be opened during installation. Recommended mounting height 20-40 ft, depending on lamp type selected. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1) For DarkSky compliant configurations of this product, please find the spec sheet and DarkSky certificate in the library.

Colors

Material

Body: Marine-grade, die-cast aluminium alloy

Fasteners: PCS Polymer Coated Stainless Steel hardware

Gasket: Silicone rubber gasket

Impact Protection: IK08

Ingress Protection: IP66

Finish: Powdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 and Dark Bronze RAL8019

Corrosion Protection: 5CE

Mounting: Maximum spacing for streetlighting applications depends on wattage and light distribution: 5.5 to 9 times the mounting height

Electrical

Ballast / Driver: Integral EC electronic converter

Cable: 30 feet of flexible 18/5 cable

Power Factor: > 0.9

Power Supply: Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.

Surge Protection: In-line bracket 10kV Surge Protector

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

:

BUG Rating: Please see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Light Distribution

Delivered Lumen

To

Wattage

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
108-0842	[S60] Type III Short	LED-24/24W / 350 mA - 3000 K	3491.8	80
108-0846	[S60] Type III Short	LED-36/36W / 350 mA - 3000 K	5237.7	80
108-0850	[S60] Type III Short	LED-42/42W / 350 mA - 3000 K	6110.7	80
108-0854	[S70] Type II Short	LED-24/24W / 350 mA - 3000 K	3423	80
108-0858	[S70] Type II Short	LED-36/36W / 350 mA - 3000 K	5134.5	80
108-0862	[S70] Type II Short	LED-42/42W / 350 mA - 3000 K	5990.2	80
108-0875	[S60] Type III Short	LED-24/24W / 350 mA - 4000 K	3829.7	80
108-0877	[S60] Type III Short	LED-36/36W / 350 mA - 4000 K	5744.6	80
108-0879	[S60] Type III Short	LED-42/42W / 350 mA - 4000 K	6702	80
108-0881	[S70] Type II Short	LED-24/24W / 350 mA - 4000 K	3754.3	80
108-0883	[S70] Type II Short	LED-36/36W / 350 mA - 4000 K	5631.4	80
108-0901	[S60] Type III Short	LED-24/48W / 700 mA - 4000 K	6701	80
108-0902	[S60] Type III Short	LED-24/48W / 700 mA - 3000 K	6268.7	80
108-0904	[S70] Type II Short	LED-24/48W / 700 mA - 4000 K	6585.8	80
108-0905	[S70] Type II Short	LED-24/48W / 700 mA - 3000 K	6160.9	80
108-0907	[S60] Type III Short	LED-36/72W / 700 mA - 4000 K	10051.6	80
108-0908	[S60] Type III Short	LED-36/72W / 700 mA - 3000 K	9403.1	80
108-0910	[S70] Type II Short	LED-36/72W / 700 mA - 4000 K	9878.6	80
108-0911	[S70] Type II Short	LED-36/72W / 700 mA - 3000 K	9241.3	80
108-0913	[S60] Type III Short	LED-42/84W / 700 mA - 4000 K	11726.8	80
108-0914	[S60] Type III Short	LED-42/84W / 700 mA - 3000 K	10970.2	80
108-0916	[S70] Type II Short	LED-42/84W / 700 mA - 4000 K	11525.1	80
108-0917	[S70] Type II Short	LED-42/84W / 700 mA - 3000 K	10781.5	80
108-0929	[A60] Type IV Very Short	LED-36/36W / 350 mA - 4000 K	5349.3	80
108-0938	[A60] Type IV Very Short	LED-24/48W / 700 mA - 4000 K	6145.6	80

Showing 1 to 25 of 155 Entries
