FLA700 series

FLA740 LED

Static White

Choose a family:

FLA730 LED
L×W: 16.14"×9.84"
FLA740 LED
L×W: 22.05"×12.99"
Home
Products
Street and Area Lighting
FLA740 LED
Family Spec Sheet Installation Instructions More Downloads

IP66. Class I. IK08. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Protractor scale for accurate aiming from 0° to 15° above horizontal. Recommended mounting height 10-30 ft, depending on lamp type selected. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

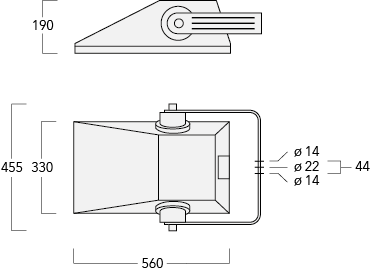

FLA740 LED Schematics
Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone rubber gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter
Cable30 feet of flexible 18/5 cable
Power Supply120-277V / 50-60 Hz
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
147-0709[S65] Type III MediumLED-18/36W / 700 mA - 3000 K4182.980 ULD
147-0710[S65] Type III MediumLED-18/36W / 700 mA - 4000 K4471.480 ULD
147-0721[S65] Type III MediumLED-24/48W / 700 mA - 3000 K5577.280 ULD
147-0722[S65] Type III MediumLED-24/48W / 700 mA - 4000 K5961.880 ULD
147-0711[R65] Type IV MediumLED-18/36W / 700 mA - 3000 K3810.880 ULD
147-0712[R65] Type IV MediumLED-18/36W / 700 mA - 4000 K4073.680 ULD
147-0723[R65] Type IV MediumLED-24/48W / 700 mA - 3000 K5081.180 ULD
147-0724[R65] Type IV MediumLED-24/48W / 700 mA - 4000 K5431.580 ULD
147-0713[A60] Type IV Very ShortLED-18/36W / 700 mA - 3000 K3899.680 ULD
147-0714[A60] Type IV Very ShortLED-18/36W / 700 mA - 4000 K4168.680 ULD
147-0726[A60] Type IV Very ShortLED-24/48W / 700 mA - 4000 K5558.180 ULD
147-0725[A60] Type IV Very ShortLED-24/48W / 700 mA - 3000 K5199.580 ULD
147-0697[S65] Type III MediumLED-18/54W / 1050 mA - 3000 K6202.280 ULD
147-0698[S65] Type III MediumLED-18/54W / 1050 mA - 4000 K6490.780 ULD
147-0680[S65] Type III MediumLED-24/72W / 1050 mA - 4000 K8654.280 ULD
147-0679[S65] Type III MediumLED-24/72W / 1050 mA - 3000 K8269.680 ULD
147-0699[R65] Type IV MediumLED-18/54W / 1050 mA - 3000 K5650.580 ULD
147-0700[R65] Type IV MediumLED-18/54W / 1050 mA - 4000 K5913.380 ULD
147-0682[R65] Type IV MediumLED-24/72W / 1050 mA - 4000 K7884.580 ULD
147-0681[R65] Type IV MediumLED-24/72W / 1050 mA - 3000 K753480 ULD
147-0701[A60] Type IV Very ShortLED-18/54W / 1050 mA - 3000 K5782.280 ULD
147-0702[A60] Type IV Very ShortLED-18/54W / 1050 mA - 4000 K6051.180 ULD
147-0683[A60] Type IV Very ShortLED-24/72W / 1050 mA - 3000 K7709.680 ULD
147-0684[A60] Type IV Very ShortLED-24/72W / 1050 mA - 4000 K8068.280 ULD
Showing 1 to 24 of 24 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
147-6902TS1-740 Pole clamp, single (Ø 4.0"-4.5")
147-0137TS1-740 Pole clamp, single (Ø 3"-3.5")
147-6909TS1-740 Pole clamp, single (Ø 4.5"-5.25")
147-6902TS2-740 Pole clamp, double (Ø 3"-3.5")
147-6906TS2-740 Pole clamp, double (Ø 4.0"-4.5")
147-6910TS2-740 Pole clamp, double (Ø 4.5"-5.25")
