FLA730 LED

FLA730 LED

IP66. Class I. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. PMMA OLC® One LED Concept optics for superior illumination and glare control. Factory-installed LED circuit board. LED boards can be easily removed for upgrading. 0-10V Dimming comes standard with luminaire. Protractor scale for accurate aiming from 0° to 15° above horizontal. Recommended mounting height 10-20 ft, depending on lamp type selected. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

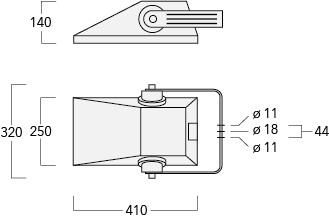

FLA730 LED Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
GasketSilicone rubber gasket
Impact ProtectionIK08
Ingress ProtectionIP66
FinishPowder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019.
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter
Cable30 feet of flexible 18/5 cable
Power Supply120-277V / 50-60 Hz
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
147-0685[S65] Type III MediumLED-12/24W / 700 mA - 3000 K2780.380
147-0686[S65] Type III MediumLED-12/24W / 700 mA - 4000 K2972.180
147-0715[S65] Type III MediumLED-18/36W / 700 mA - 3000 K4170.580
147-0716[S65] Type III MediumLED-18/36W / 700 mA - 4000 K4458.180
147-0687[R65] Type IV MediumLED-12/24W / 700 mA - 3000 K2434.480
147-0688[R65] Type IV MediumLED-12/24W / 700 mA - 4000 K2602.380
147-0717[R65] Type IV MediumLED-18/36W / 700 mA - 3000 K3651.780
147-0718[R65] Type IV MediumLED-18/36W / 700 mA - 4000 K3903.580
147-0689[A60] Type IV Very ShortLED-12/24W / 700 mA - 3000 K2606.480
147-0690[A60] Type IV Very ShortLED-12/24W / 700 mA - 4000 K2786.280
147-0719[A60] Type IV Very ShortLED-18/36W / 700 mA - 3000 K3909.680
147-0720[A60] Type IV Very ShortLED-18/36W / 700 mA - 4000 K4179.380
147-0703[S65] Type III MediumLED-12/36W / 1050 mA - 3000 K4122.580
147-0704[S65] Type III MediumLED-12/36W / 1050 mA - 4000 K4314.380
147-0691[S65] Type III MediumLED-18/54W / 1050 mA - 3000 K6183.880
147-0692[S65] Type III MediumLED-18/54W / 1050 mA - 4000 K6471.480
147-0705[R65] Type IV MediumLED-12/36W / 1050 mA - 3000 K3609.780
147-0706[R65] Type IV MediumLED-12/36W / 1050 mA - 4000 K3777.680
147-0693[R65] Type IV MediumLED-18/54W / 1050 mA - 3000 K5414.580
147-0707[A60] Type IV Very ShortLED-12/36W / 1050 mA - 3000 K3864.780
147-0694[R65] Type IV MediumLED-18/54W / 1050 mA - 4000 K5666.480
147-0708[A60] Type IV Very ShortLED-12/36W / 1050 mA - 4000 K4044.580
147-0695[A60] Type IV Very ShortLED-18/54W / 1050 mA - 3000 K5797.180
147-0696[A60] Type IV Very ShortLED-18/54W / 1050 mA - 4000 K6066.780
Showing 1 to 24 of 24 Entries

Accessories

Part-IDTitlePDFOpen Data
147-6913SMC-730
