AFL130 LED

AFL130 LED

IP66, Class I or Class II. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. CCG® Controlled Compression Gasket. Non-reflective flat safety glass cover, hinged. Integral EC electronic converter. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Can be used as post top or side entry version. Specification at time of order is recommended. Spigot Ø 3" x 4" Contact WE-EF direct or your local WE-EF sales representative for an individual solution designed to precisely meet your needs. For DarkSky compliant configurations of this product, please find the spec sheet and DarkSky certificate in the library.

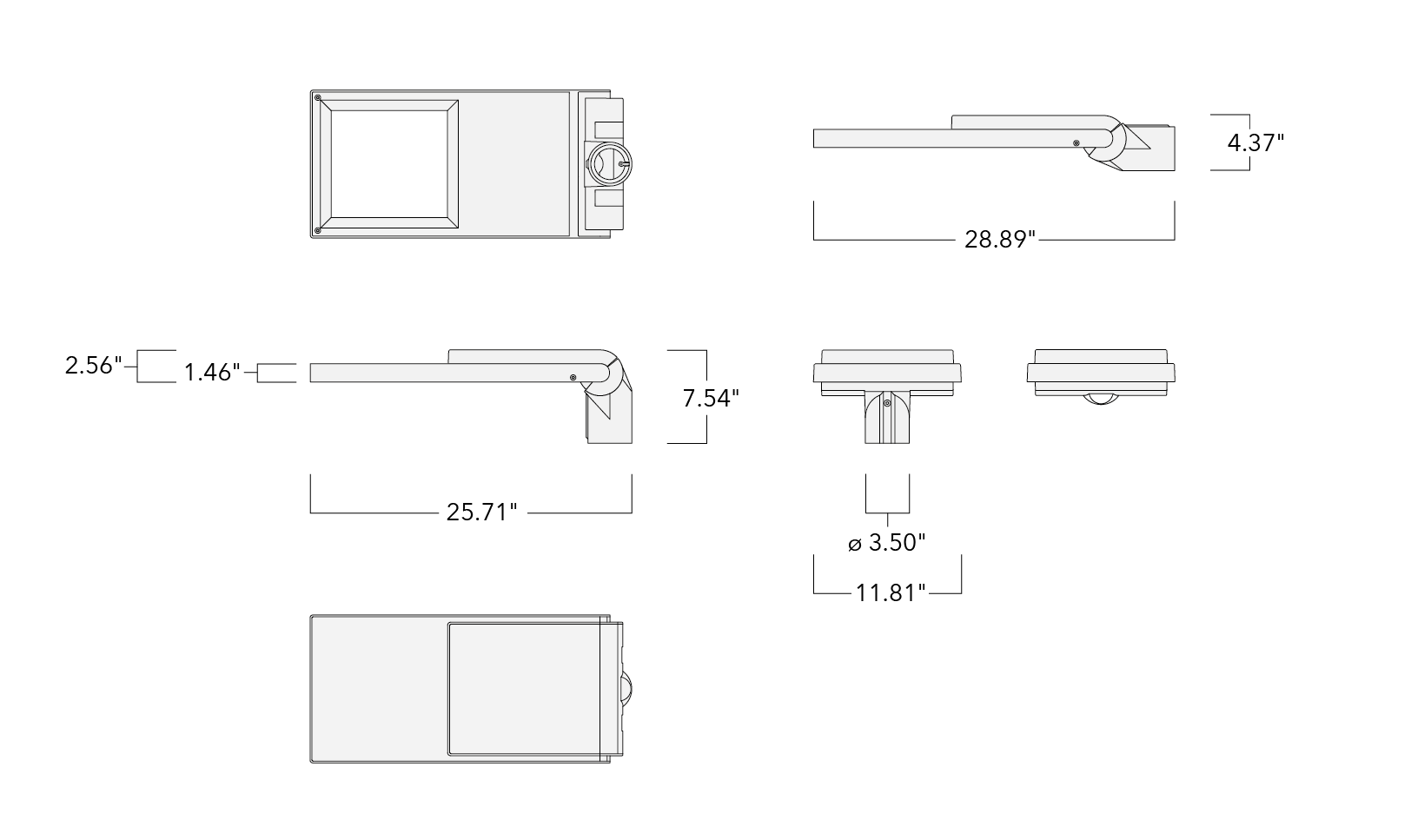

AFL130 LED Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketCCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
MountingSpigot rotatable for either post top or side entry version. Must be indicated during order placement alongside spigot size.
Electrical
Ballast / DriverIntegral EC electronic converter. 0-10V
Cable30 feet of flexible 18/5 cable
Power Factor> 0.9
Surge Protection6/6kV, optional 10kV
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
102-0154[S61] Type III ShortLED-48/48W / 350 mA - 2200 K6594.170
102-0155[S61] Type III ShortLED-48/48W / 350 mA - 2700 K6594.180
102-0156[S61] Type III ShortLED-48/48W / 350 mA - 3000 K7048.980
102-0157[S61] Type III ShortLED-48/48W / 350 mA - 4000 K773180
102-0159[S65] Type III MediumLED-48/48W / 350 mA - 2200 K6361.870
102-0160[S65] Type III MediumLED-48/48W / 350 mA - 2700 K6361.880
102-0161[S65] Type III MediumLED-48/48W / 350 mA - 3000 K6800.680
102-0162[S65] Type III MediumLED-48/48W / 350 mA - 4000 K7458.780
102-0164[S70] Type II ShortLED-48/48W / 350 mA - 2200 K6600.970
102-0165[S70] Type II ShortLED-48/48W / 350 mA - 2700 K6600.980
102-0166[S70] Type II ShortLED-48/48W / 350 mA - 3000 K7056.180
102-0167[S70] Type II ShortLED-48/48W / 350 mA - 4000 K773980
102-0169rectangular, side throw [R60]LED-48/48W / 350 mA - 2200 K6081.970
102-0170rectangular, side throw [R60]LED-48/48W / 350 mA - 2700 K6081.980
102-0171rectangular, side throw [R60]LED-48/48W / 350 mA - 3000 K6501.480
102-0172rectangular, side throw [R60]LED-48/48W / 350 mA - 4000 K7130.580
102-0174[P66] Type II MediumLED-48/48W / 350 mA - 2200 K6167.170
102-0175[P66] Type II MediumLED-48/48W / 350 mA - 2700 K6167.180
102-0176[P66] Type II MediumLED-48/48W / 350 mA - 3000 K6592.480
102-0177[P66] Type II MediumLED-48/48W / 350 mA - 4000 K7230.480
102-0179[A61] Type IV Very ShortLED-48/48W / 350 mA - 2200 K6099.670
102-0180[A61] Type IV Very ShortLED-48/48W / 350 mA - 2700 K6099.680
102-0181[A61] Type IV Very ShortLED-48/48W / 350 mA - 3000 K6520.380
102-0182[A61] Type IV Very ShortLED-48/48W / 350 mA - 4000 K7151.380
102-0184square distribution [Q66]LED-48/48W / 350 mA - 2200 K6198.870
Showing 1 to 25 of 336 Entries
