AFL110 LED

Back
Standard Colours
Wild-Light
Family Spec Sheet

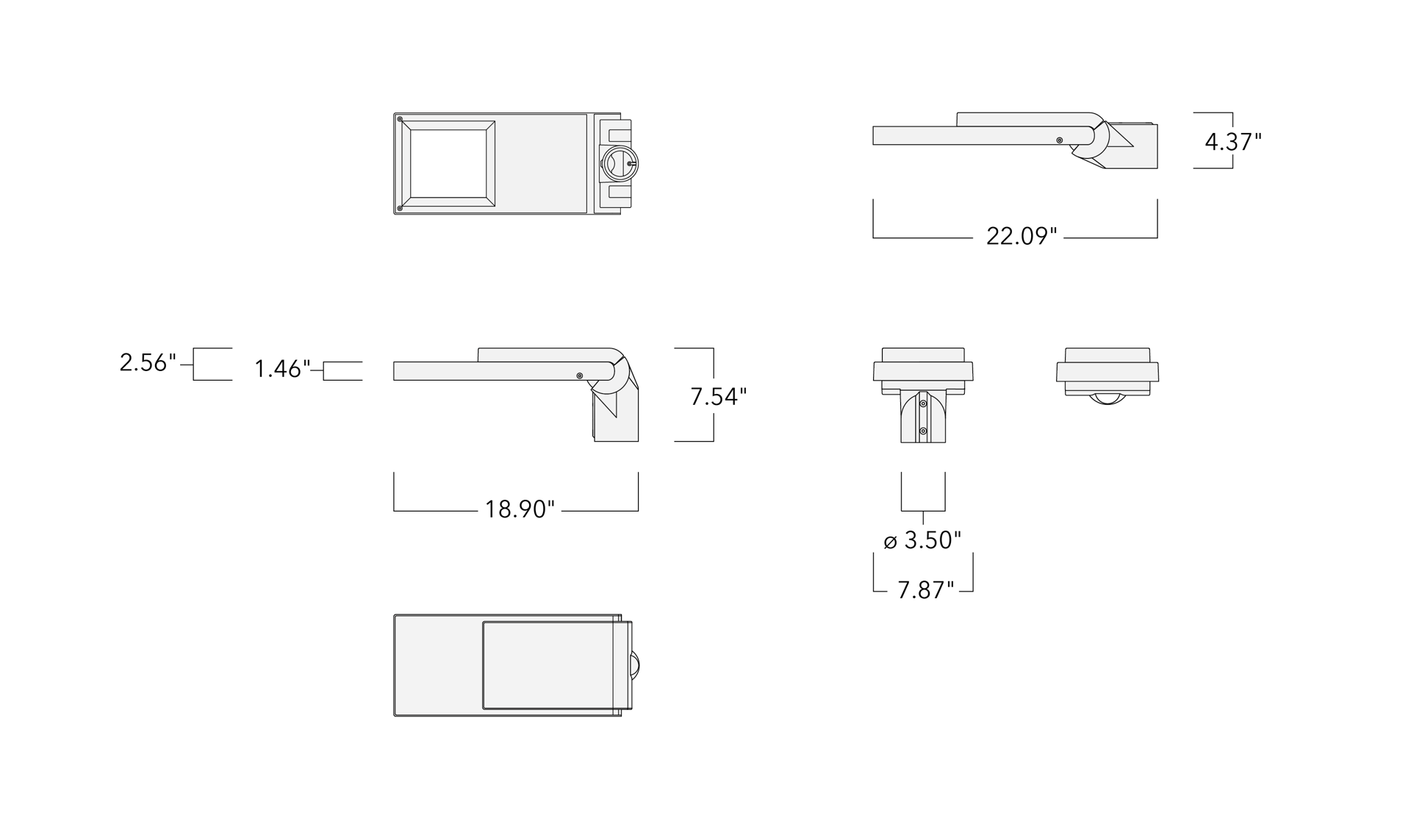

AFL110 AFL110 480 mm 480 mm 200 mm 200 mm
AFL120 AFL120 602 mm 602 mm 250 mm 250 mm
AFL130 AFL130 653 mm 653 mm 300 mm 300 mm

IP66, Class I or Class II. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. CCG® Controlled Compression Gasket. Non-reflective flat safety glass cover, hinged. Integral EC electronic converter. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Can be used as post top or side entry
version. Specification at time of order is recommended. Spigot Ø 3" x 4" Contact WE-EF direct or your local WE-EF sales representative for an individual solution designed to precisely meet your needs.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS Polymer Coated Stainless Steel Hardware
FarbenPending
DichtungCCG® Controlled Compression Gasket
SchlagfestigkeitIK08
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
BefestigungSpigot rotatable for either post top or side entry version. Must be indicated during order placement alongside spigot size.

Elektrik

LED TreiberIntegral EC electronic converter. 0-10V
Kabel
Leistungsfaktor> 0.9
Netz120V - 277V Universal Driver
ÜberspannungsschutzIn-line bracket 10kV Surge Protector

Weitere Eigenschaften

LifetimeTa=25°/40° L90B10 > 100000h

Lichtverteilung

Lichtstrom (lm)

Leistung (W)

Farbtemperatur (K)

CRI

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
102-0422[S61] Type III ShortLED-8/8W / 350 mA - 2200K1061.870electronic gear10.40
102-0423[S61] Type III ShortLED-8/8W / 350 mA - 2700K1061.880electronic gear10.40
102-0424[S61] Type III ShortLED-8/8W / 350 mA - 3000K113580electronic gear10.40
102-0425[S61] Type III ShortLED-8/8W / 350 mA - 4000K1244.980electronic gear10.40
102-0426[S65] Type III MediumLED-8/8W / 350 mA - 2200K1078.970electronic gear10.40
102-0427[S65] Type III MediumLED-8/8W / 350 mA - 2700K1078.980electronic gear10.40
102-0428[S65] Type III MediumLED-8/8W / 350 mA - 3000K1153.380electronic gear10.40
102-0429[S65] Type III MediumLED-8/8W / 350 mA - 4000K126580electronic gear10.40
102-0430[S70] Type II ShortLED-8/8W / 350 mA - 2200K989.970electronic gear10.40
102-0431[S70] Type II ShortLED-8/8W / 350 mA - 2700K989.980electronic gear10.40
102-0432[S70] Type II ShortLED-8/8W / 350 mA - 3000K1058.180electronic gear10.40
102-0433[S70] Type II ShortLED-8/8W / 350 mA - 4000K1160.580electronic gear10.40
102-0434rectangular, side throw [R60]LED-8/8W / 350 mA - 2200K926.270electronic gear10.40
102-0435rectangular, side throw [R60]LED-8/8W / 350 mA - 2700K926.280electronic gear10.40
102-0436rectangular, side throw [R60]LED-8/8W / 350 mA - 3000K990.180electronic gear10.40
102-0437rectangular, side throw [R60]LED-8/8W / 350 mA - 4000K1085.980electronic gear10.40
102-0438[P66] Type II MediumLED-8/8W / 350 mA - 2200K985.970electronic gear10.40
102-0439[P66] Type II MediumLED-8/8W / 350 mA - 2700K985.980electronic gear10.40
102-0440[P66] Type II MediumLED-8/8W / 350 mA - 3000K1053.980electronic gear10.40
102-0441[P66] Type II MediumLED-8/8W / 350 mA - 4000K1155.980electronic gear10.40
102-0442[A61] Type IV Very ShortLED-8/8W / 350 mA - 2200K1005.670electronic gear10.40
102-0443[A61] Type IV Very ShortLED-8/8W / 350 mA - 2700K1005.680electronic gear10.40
102-0444[A61] Type IV Very ShortLED-8/8W / 350 mA - 3000K107580electronic gear10.40
102-0445[A61] Type IV Very ShortLED-8/8W / 350 mA - 4000K117980electronic gear10.40
102-0446square distribution [Q66]LED-8/8W / 350 mA - 2200K930.670electronic gear10.40
Showing 1 to 25 of 671 Entries
