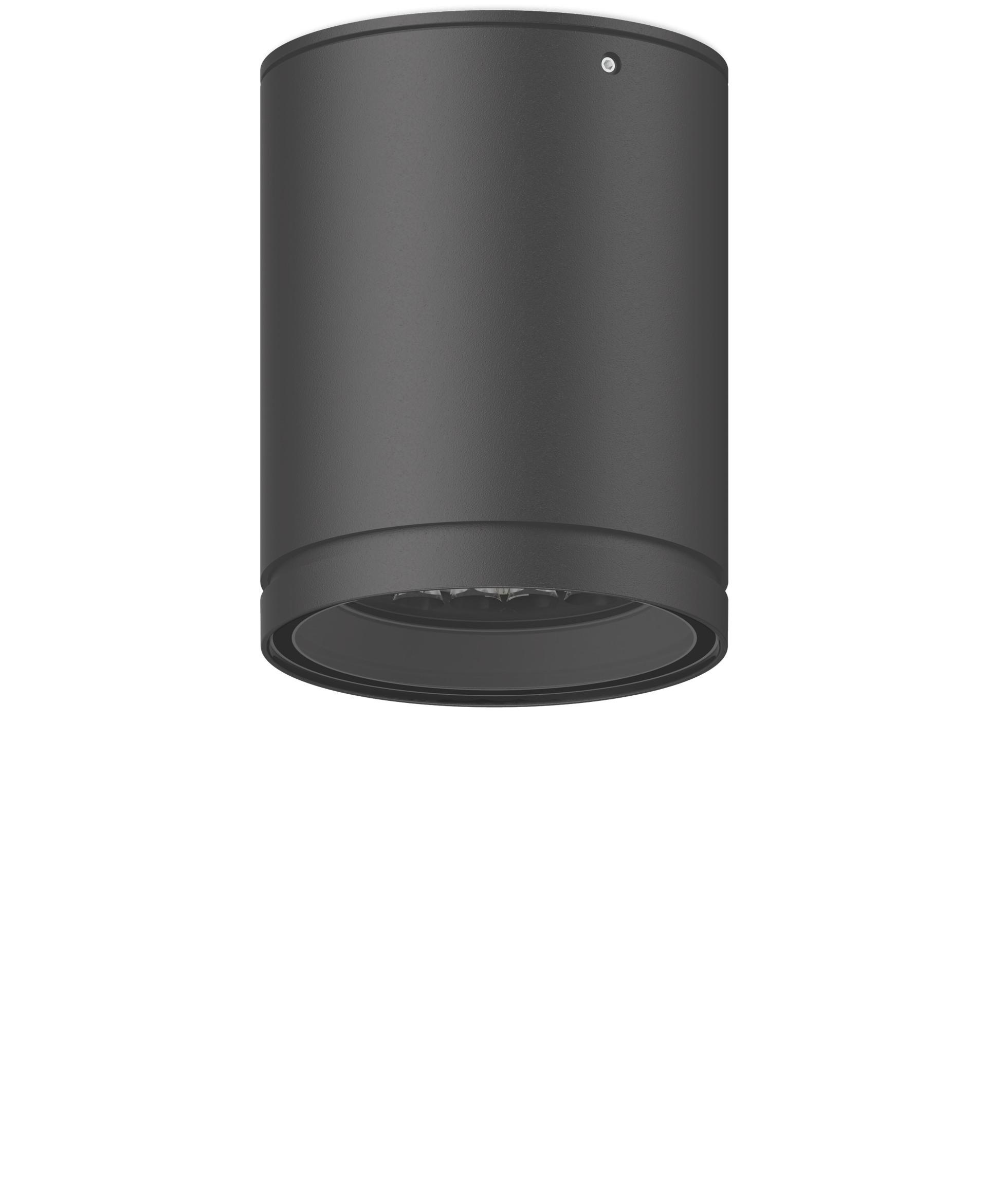

IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Two cable entries. Integral driver in thermally separated compartment. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. Tunable White technology. DMX interface. Optional 2200 K version available, to be specified at time of ordering. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

DAC140 TW LED TUNABLE WHITE Schematics
Colors
Material

Body: Marine-grade, all aluminium construction

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK07

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting:

Electrical

Ballast / Driver: DMX

Cable: Two cable entries

Power Factor:

Power Supply:

Surge Protection:

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

:

:

Light Distribution

Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
134-2258symmetric, wide beam [W]LED-24/42W / 325 mA – 2700-6000K3993.580
134-2259symmetric, medium beam [M]LED-24/42W / 325 mA – 2700-6000K4237.480
134-2260symmetric, narrow beam [E]LED-24/42W / 325 mA – 2700-6000K4406.380
Showing 1 to 3 of 3 Entries

Accessories

Part-IDTitlePDFOpen Data
Please select an accessory category
ItemDownloadMail Link
Product Images
Light Distributions
Install Instructions
Manual
Revit Files - DAC140-TW LED
