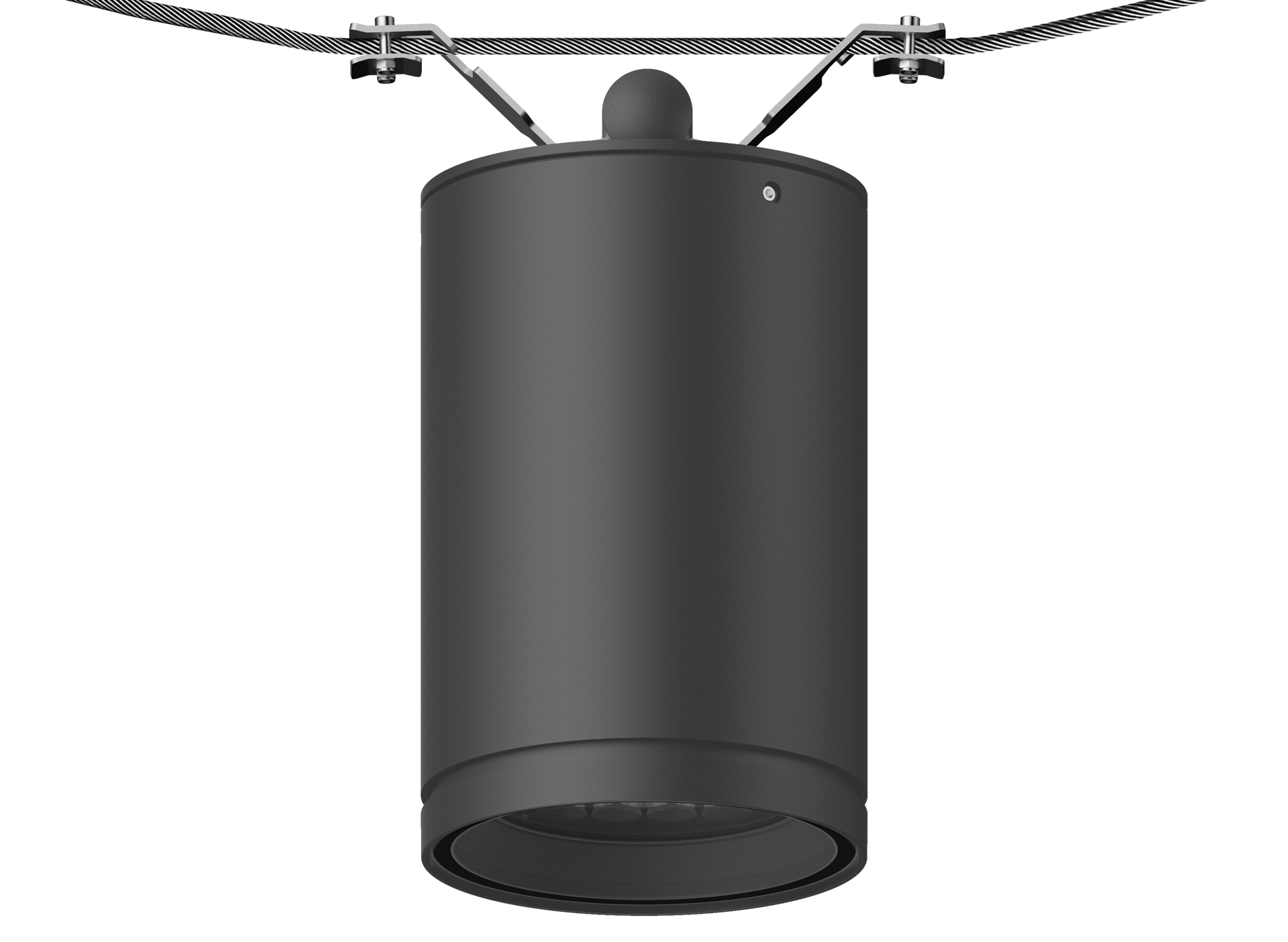

IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable entry, second cable entry for through wiring with cable connector optional. Integral driver in thermally separated compartment. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. Tunable White technology. DALI interface. The luminaire is factory-sealed and does not need to be opened during installation. Includes cable connector, for cable 0.08-0.47 inch. +/- 10° adjustable to compensate for sloping catenary systems. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

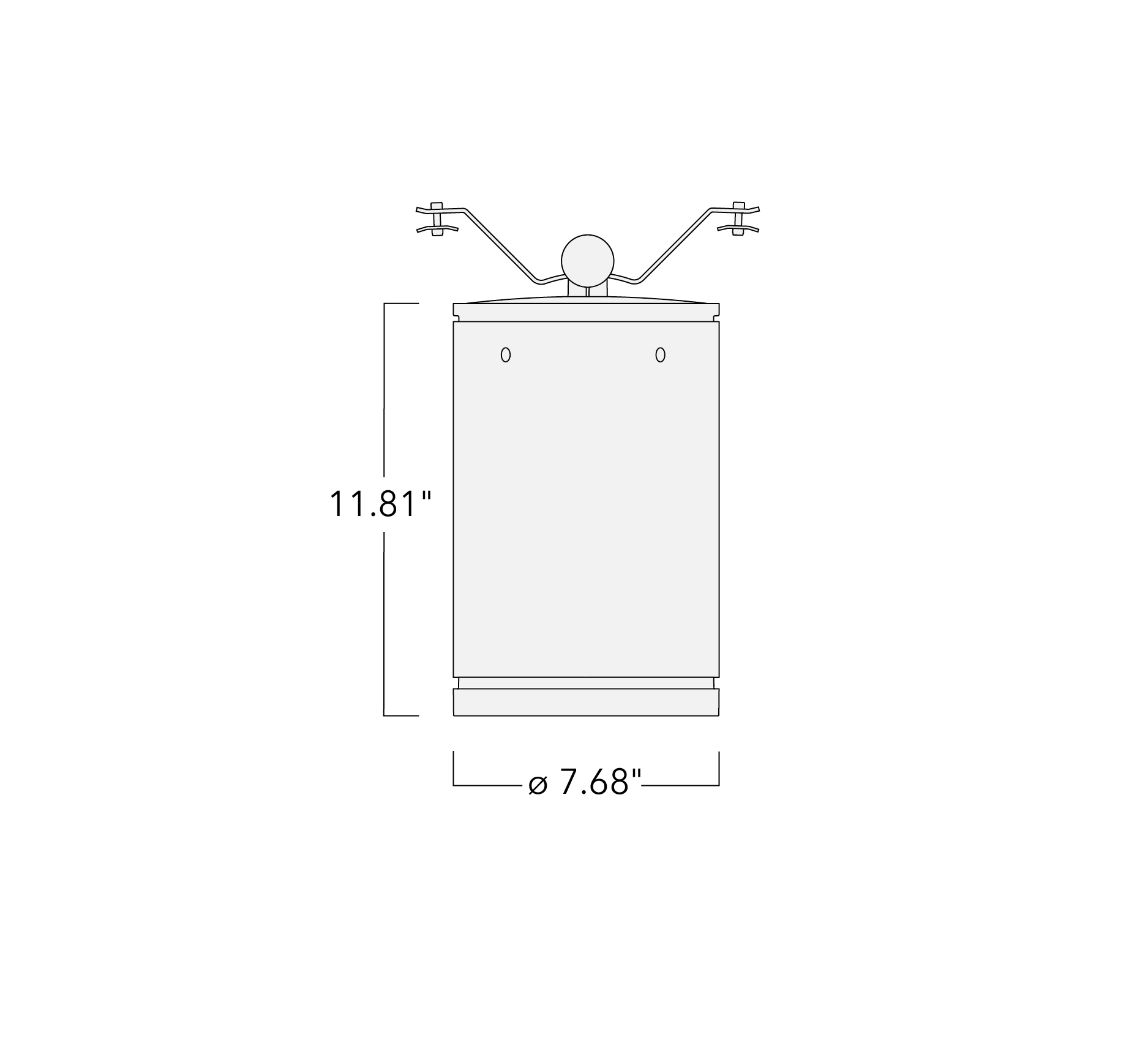

DAS140 TW LED TUNABLE WHITE Schematics
Colors
Material

Body: Marine-grade, die-cast aluminum alloy

Fasteners: PCS Polymer Coated Stainless Steel Hardware

Gasket: Silicone CCG® Controlled Compression Gasket

Impact Protection: IK07

Ingress Protection: IP66

Finish:

Corrosion Protection: 5CE

Mounting: Includes cable connector, for cable 2-12 mm. +/- 10° adjustable

Electrical

Ballast / Driver: DALI

Cable: One cable entry, optional T-QPD connector for through wiring available on request

Power Factor: > 0.9

Power Supply:

Surge Protection:

Additional Information

Lifetime: Ta=25°/40° L90B10 > 90000h

:

:

Light Distribution

Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
134-2288symmetric, wide beam [W]LED-24/42W / 325 mA – 2700-6000K3993.580
134-2289symmetric, medium beam [M]LED-24/42W / 325 mA – 2700-6000K4237.480
134-2290symmetric, narrow beam [E]LED-24/42W / 325 mA – 2700-6000K4406.380
Showing 1 to 3 of 3 Entries
