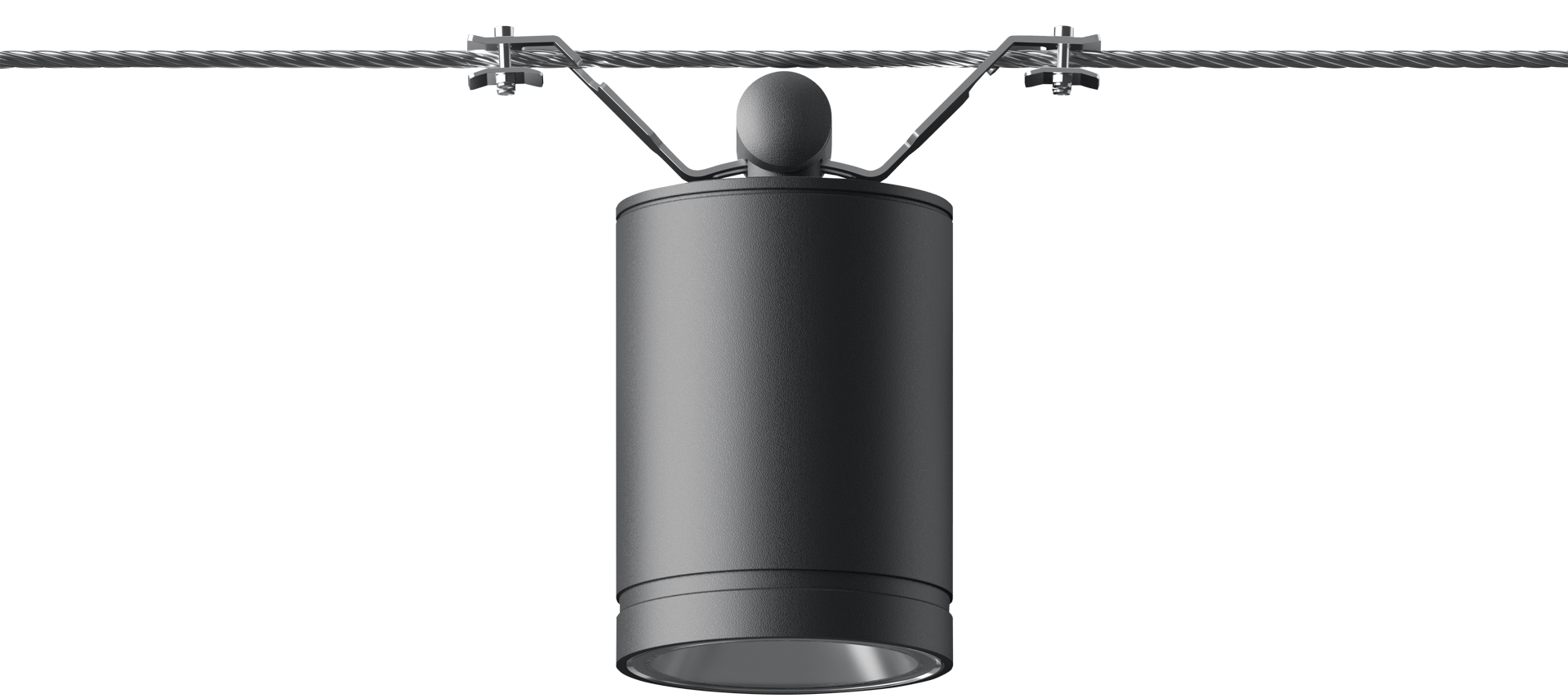

DAS120 LED

DAS120 LED

Family Spec Sheet

IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable entry, second cable entry for through wiring with cable connector optional. Integral driver, thermally separated. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 0-10V Dimming comes standard with luminaire. The luminaire is factory-sealed and does not need to be opened during installation. Optional 2200 K version available, to be specified at time of ordering. Includes cable connector, for cable 0.08-0.47 inch. +/- 10° adjustable to compensate for sloping catenary systems. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

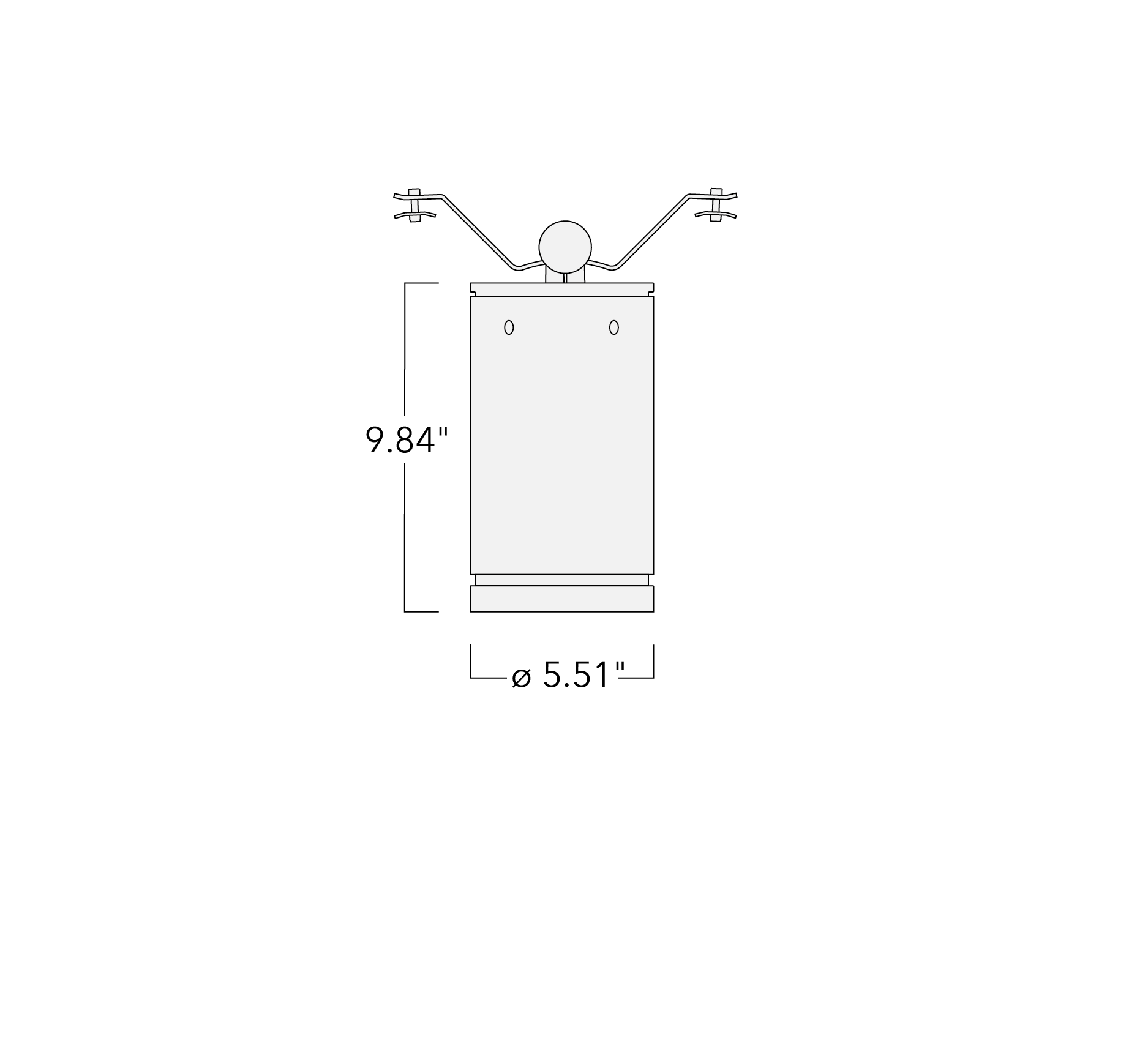

DAS120 LED Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminum alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Finish
Corrosion Protection5CE
MountingIncludes cable connector, for cable 2-12 mm. +/- 10° adjustable
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
CableOne cable entry, optional T-QPD connector for through wiring available on request
Power Factor> 0.9
Power Supply
Surge Protection
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
134-2182symmetric, wide beam [W]LED-12/24W / 700 mA - 2700 K2382.480
134-2183symmetric, wide beam [W]LED-12/24W / 700 mA - 3000 K2558.980
134-2184symmetric, wide beam [W]LED-12/24W / 700 mA - 4000 K2735.480
134-2185symmetric, medium beam [M]LED-12/24W / 700 mA - 2700 K2875.280
134-2186symmetric, medium beam [M]LED-12/24W / 700 mA - 3000 K3088.280
134-2187symmetric, medium beam [M]LED-12/24W / 700 mA - 4000 K3301.280
134-2188symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 2700 K2880.380
134-2189symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 3000 K3093.780
134-2190symmetric, very narrow beam [VN]LED-12/24W / 700 mA - 4000 K330780
134-2191symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 2700 K2947.480
134-2192symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 3000 K3165.780
134-2193symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-12/24W / 700 mA - 4000 K338480
Showing 1 to 12 of 12 Entries
