PSY424 LED

PSY424 LED

Family Spec Sheet

IP66. Class I. IK10. Marine-grade, all aluminum construction. Pole section features galvanized steel reinforcement core. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens. CAD-optimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Pre-wired post complete with 10kV surge protector in cable connection box. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1) For DarkSky compliant configurations of this product, please find the spec sheet and DarkSky certificate in the library.

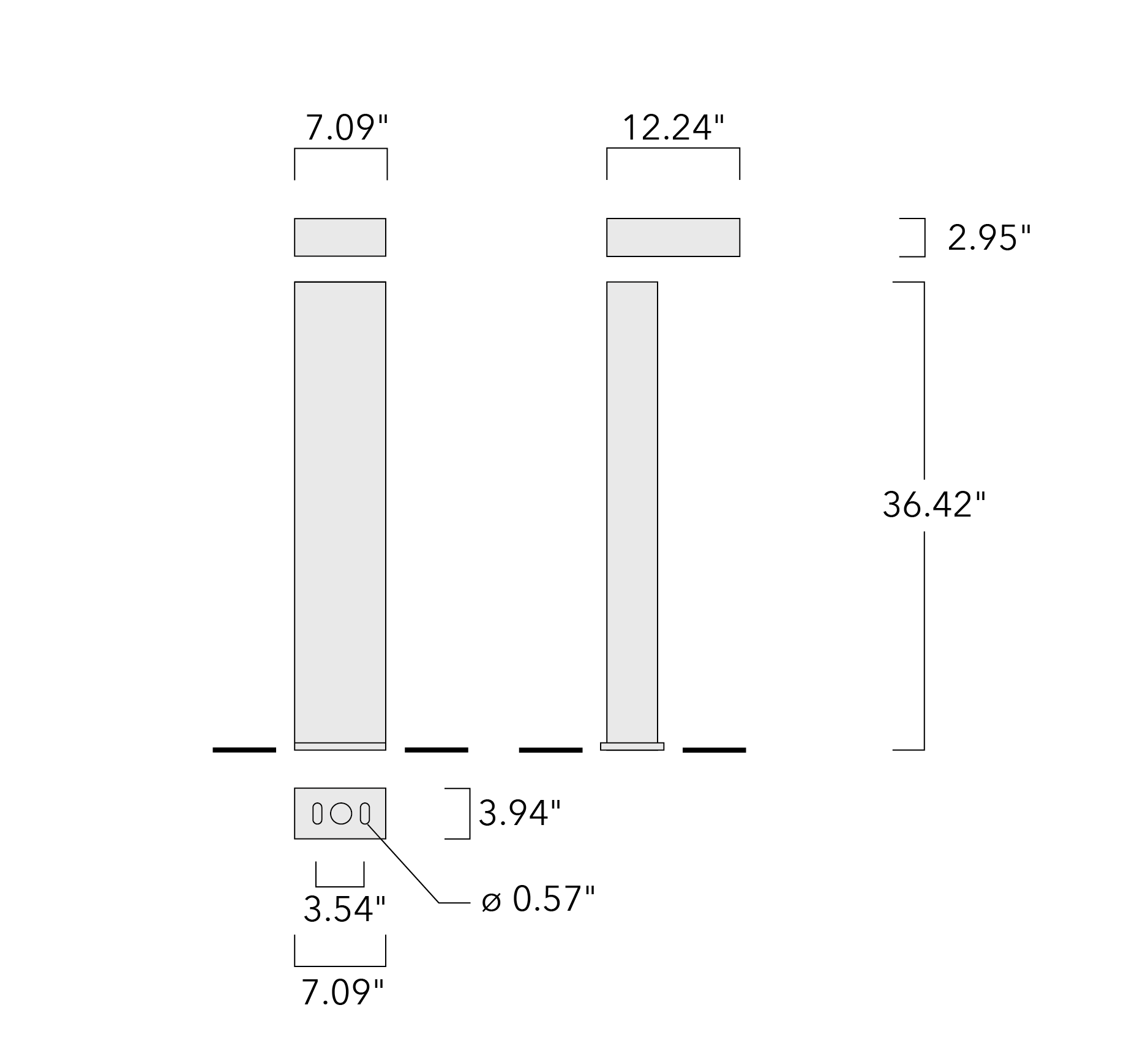

PSY424 LED Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10
Ingress ProtectionIP66/IP67
Finish
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverIntegral EC electronic converter
Cable
Power Factor> 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge Protection
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
114-0134[S70] Type II ShortLED-6/12W / 700 mA - 3000 K1367.880
114-0135[S70] Type II ShortLED-6/12W / 700 mA - 4000 K1462.280
114-0136[S70] Type II ShortLED-6/18W / 1050 mA - 3000 K2137.580
114-0137[S70] Type II ShortLED-6/18W / 1050 mA - 4000 K223780
114-0138[S70] Type II ShortLED-6/26W / 1400 mA - 3000 K2734.180
114-0139[S70] Type II ShortLED-6/26W / 1400 mA - 4000 K2858.380
114-0140[A60] Type IV Very ShortLED-6/12W / 700 mA - 3000 K1423.980
114-0141[A60] Type IV Very ShortLED-6/12W / 700 mA - 4000 K1522.180
114-0142[A60] Type IV Very ShortLED-6/18W / 1050 mA - 3000 K1937.780
114-0143[A60] Type IV Very ShortLED-6/18W / 1050 mA - 4000 K2027.880
114-0144[A60] Type IV Very ShortLED-6/26W / 1400 mA - 3000 K2478.580
114-0145[A60] Type IV Very ShortLED-6/26W / 1400 mA - 4000 K2591.180
114-0146[R65] Type IV MediumLED-6/12W / 700 mA - 3000 K1229.680
114-0147[R65] Type IV MediumLED-6/12W / 700 mA - 4000 K1314.480
114-0148[R65] Type IV MediumLED-6/18W / 1050 mA - 3000 K1909.580
114-0149[R65] Type IV MediumLED-6/18W / 1050 mA - 4000 K1998.380
114-0150[R65] Type IV MediumLED-6/26W / 1400 mA - 3000 K2442.480
114-0151[R65] Type IV MediumLED-6/26W / 1400 mA - 4000 K2553.480
114-0187[S70] Type II ShortLED-6/12W / 700 mA - 2700 K1273.580
114-0188[S70] Type II ShortLED-6/18W / 1050 mA - 2700 K2038.180
114-0189[S70] Type II ShortLED-6/26W / 1400 mA - 2700 K2584.980
114-0190[A60] Type IV Very ShortLED-6/12W / 700 mA - 2700 K1325.780
114-0191[A60] Type IV Very ShortLED-6/18W / 1050 mA - 2700 K1847.680
114-0192[A60] Type IV Very ShortLED-6/26W / 1400 mA - 2700 K2343.380
114-0194[R65] Type IV MediumLED-6/18W / 1050 mA - 2700 K1820.780
