MRY200 Série

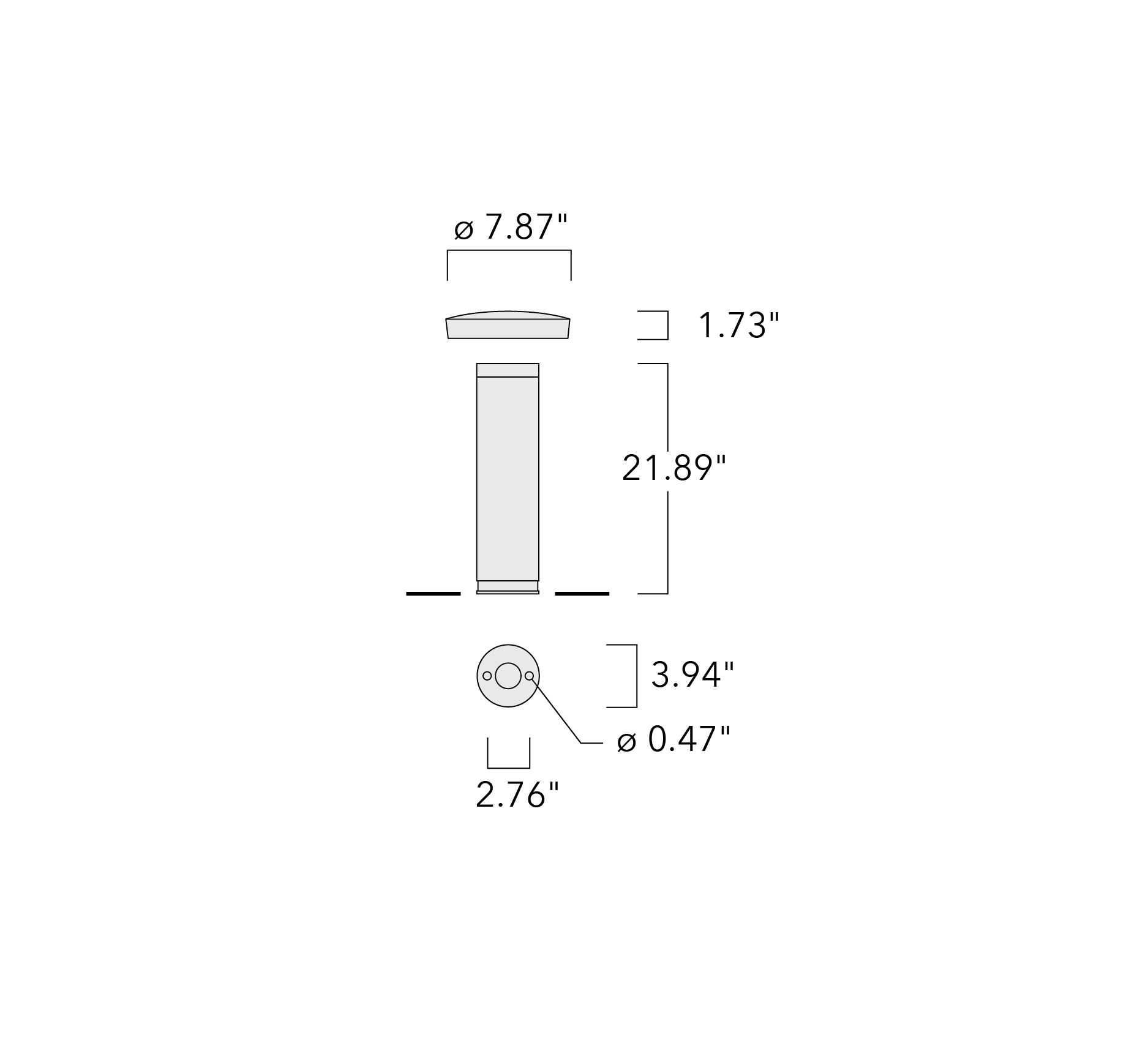

MRY224 LED I

Static White Tunable White

Choisissez une famille :

H39.37" | MRY224 LED III H23.62" | MRY224 LED I H33.46" | MRY224 LED II

Accueil

Produits

Bollards and Pathway Luminaires

MRY224 LED - 600 mm

Fiche technique de la famille Instructions d'installation Autres téléchargements

IP66. Class I. IK10. Marine-grade, all aluminum construction. Pole section features anodized aluminum core. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens, UV-stabilized. Integral driver. Advanced thermal management protects LEDs while optimizing lumens output. Luminaire is factory-sealed and does not need to be opened during installation. Suitable for areas prone to flooding. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Couleurs

RAL9004 Black

RAL9007 Grey Metallic

RAL9016 White

RAL8019 Dark Bronze

Description du matériel

Corps	Marine-grade, all-aluminium construction. Pole section features anodised aluminium core
Visserie	PCS hardware
Joint	Silicone CCG® Controlled Compression Gasket
IK	IK10
IP	IP66
Protection contre la corrosion	5CE
Montage	FS Factory-sealed luminaire does not need to be opened during installation

Description électrique

Driver	Integral EC electronic converter
Facteur de puissance	> 0.9
Alimentation électrique	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Protection contre les surtensions	10/10kV

Informations complémentaires

Ta=25⁰ L70B50>50000h

Distribution photométrique

Données en sortie de luminaire

Température de couleur

Code produit	Distribution photométrique	Source lumineuse	Données en sortie de luminaire	IRC	Caractéristiques
					Texte	PDF
115-9751	Symmetric [C70] Type V	LED-11W / 300 mA - 2700 K	844.7	80
115-9752	Symmetric [C70] Type V	LED-11W / 300 mA - 3000 K	890.7	80
115-9753	Symmetric [C70] Type V	LED-11W / 300 mA - 4000 K	948.1	80
115-9755	Symmetric [C70] Type V	LED-15W / 750 mA - 2700 K	1167.8	80
115-9756	Symmetric [C70] Type V	LED-15W / 750 mA - 3000 K	1182.5	80
115-9757	Symmetric [C70] Type V	LED-15W / 750 mA - 4000 K	1262.9	80
115-9781	[S60] Type III Short	LED-11W / 300 mA - 2700 K	843.6	80
115-9782	[S60] Type III Short	LED-11W / 300 mA - 3000 K	889.5	80
115-9783	[S60] Type III Short	LED-11W / 300 mA - 4000 K	946.9	80
115-9785	[S60] Type III Short	LED-15W / 750 mA - 2700 K	1166.3	80
115-9786	[S60] Type III Short	LED-15W / 750 mA - 3000 K	1180.9	80
115-9787	[S60] Type III Short	LED-15W / 750 mA - 4000 K	1261.3	80

Affichage de 1 à 12 sur 12 résultats

Accessories

	Code produit	Titre	Caractéristiques
	300-9090	Planted root ESZ4
