CTY150 LED-FT

Back
Family Spec Sheet

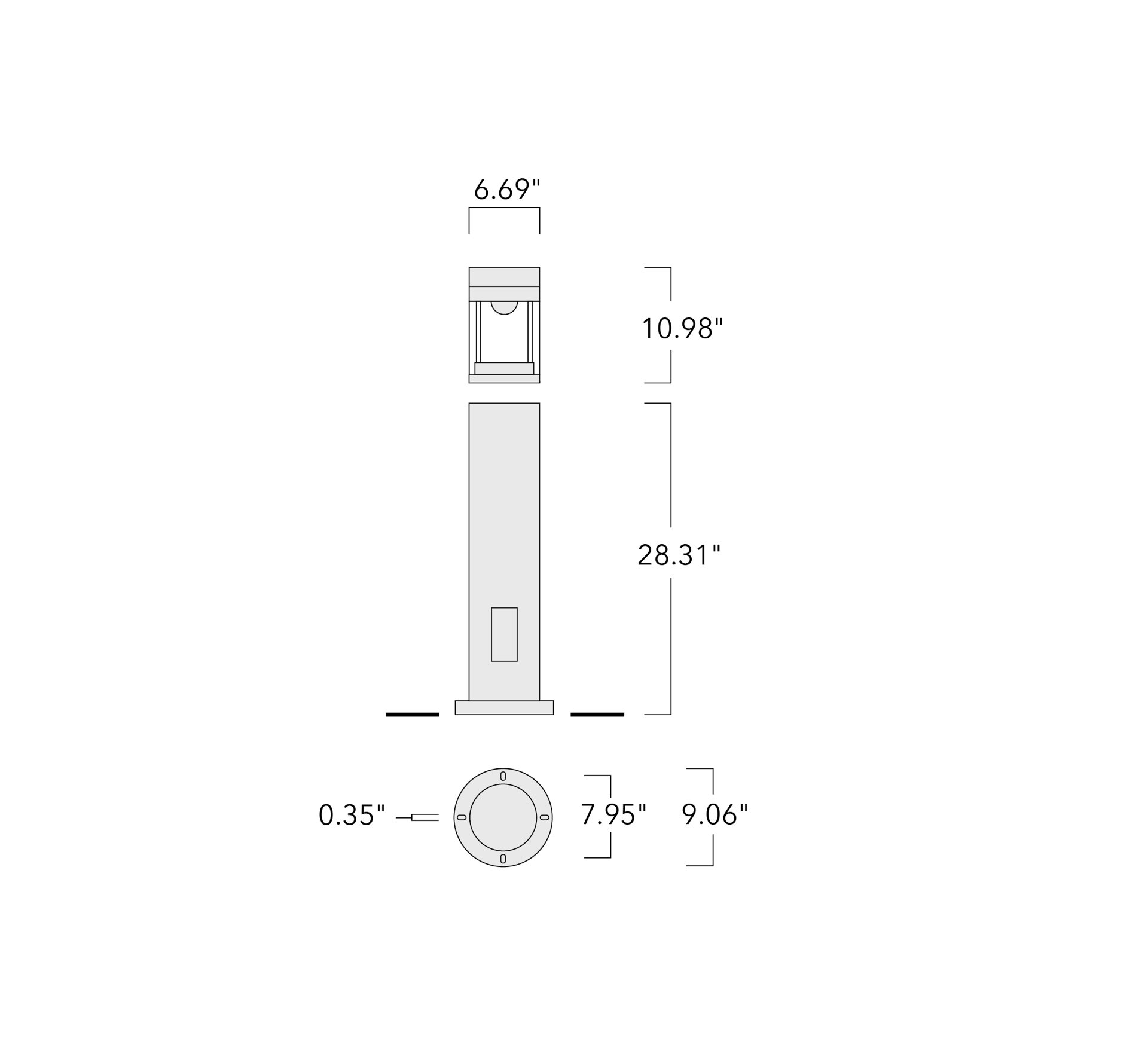

600 mm 600 mm
1.000 mm 1.000 mm

IP55. Class I. IK10. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens. CAD-optimized indirect optics for superior illumination and glare control. Integral driver in thermally separated compartment. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire.
Pre-wired post complete with cable connecting box and service door for mains connection. Suitable for installation in landscaped areas or on concrete foundations. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS Polymer Coated Stainless Steel Hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK10
SchutzartIP66
Abdeckung
Korrosionsschutz5CE
BefestigungService door cut-out: 90 x 150 mm for ON/OFF or Eco Step Dim® Advance / Service door cut-out: 85 x 300 mm for 1-10V, DALI or Eco Step Dim® Basic

Elektrik

LED TreiberIntegral EC electronic converter
KabelPre-wired post complete with cable connecting box and service door for mains connection
Leistungsfaktor> 0.9
Netz
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=25°/40° L70B50 > 50000h

Lichtverteilung

Lichtstrom (lm)

Leistung (W)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
115-1933symmetric distribution [C60]LED-FT 12W (3000K)1182.880electronic gear25.35
115-1934symmetric distribution [C60]LED-FT 12W (4000K)1246.280electronic gear25.35
115-1935symmetric distribution [C60]LED-FT-17W (2700K)1693.480electronic gear25.35
115-1936symmetric distribution [C60]LED-FT-17W (3000K)1771.380electronic gear25.35
115-1936symmetric distribution [C60]LED-FT-17W (4000K)1846.380electronic gear25.35
115-1932symmetric distribution [C60]LED-FT-12W (2700K)1107.880electronic gear25.35
115-1938symmetric distribution [C60]LED-FT-24W (2700K)2336.780electronic gear25.35
115-1939symmetric distribution [C60]LED-FT-24W (3000K)2434.880electronic gear25.35
115-1940symmetric distribution [C60]LED-FT-24W (4000K)2538.680electronic gear25.40
115-1908controlled symmetric distribution [C55]LED-FT-12W (2700K)1330.980electronic gear25.40
115-1909controlled symmetric distribution [C55]LED-FT 12W (3000K)142180electronic gear25.40
115-1910controlled symmetric distribution [C55]LED-FT 12W (4000K)1497.380electronic gear25.40
115-1911controlled symmetric distribution [C55]LED-FT-17W (2700K)2034.580electronic gear25.40
115-1912controlled symmetric distribution [C55]LED-FT-17W (3000K)2128.180electronic gear25.40
115-1936controlled symmetric distribution [C55]LED-FT-17W (4000K)2218.280electronic gear25.40
115-1914controlled symmetric distribution [C55]LED-FT-24W (2700K)2807.480electronic gear25.40
115-1915controlled symmetric distribution [C55]LED-FT-24W (3000K)2925.280electronic gear25.40
115-1916controlled symmetric distribution [C55]LED-FT-24W (4000K)305080electronic gear25.40
115-1920rectangular [R50]LED-FT-12W (2700K)1283.280electronic gear25.40
115-1921rectangular [R50]LED-FT 12W (3000K)1370.180electronic gear25.40
115-1923rectangular [R50]LED-FT-17W (2700K)1961.680electronic gear25.40
115-1922rectangular [R50]LED-FT 12W (4000K)1443.680electronic gear25.40
115-1924rectangular [R50]LED-FT-17W (3000K)2051.880electronic gear25.40
115-1925rectangular [R50]LED-FT-17W (4000K)2138.780electronic gear25.40
115-1926rectangular [R50]LED-FT-24W (2700K)2706.880electronic gear25.40
Showing 1 to 25 of 27 Entries
