CTY150 LED

CTY150 LED

Family Spec Sheet

IP66, Class I. IK10. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens. Integral EC electronic converter in thermally-separated compartment. Factory installed LED circuit board. CAD-optimised optics for superior illumination and glare control. Pre-wired post complete with cable connecting box and service door for mains connection. Optional 2200 K version available. To be specified at time of ordering. Optional Eco Step Dim® Motion version available. To be specified at time of ordering.

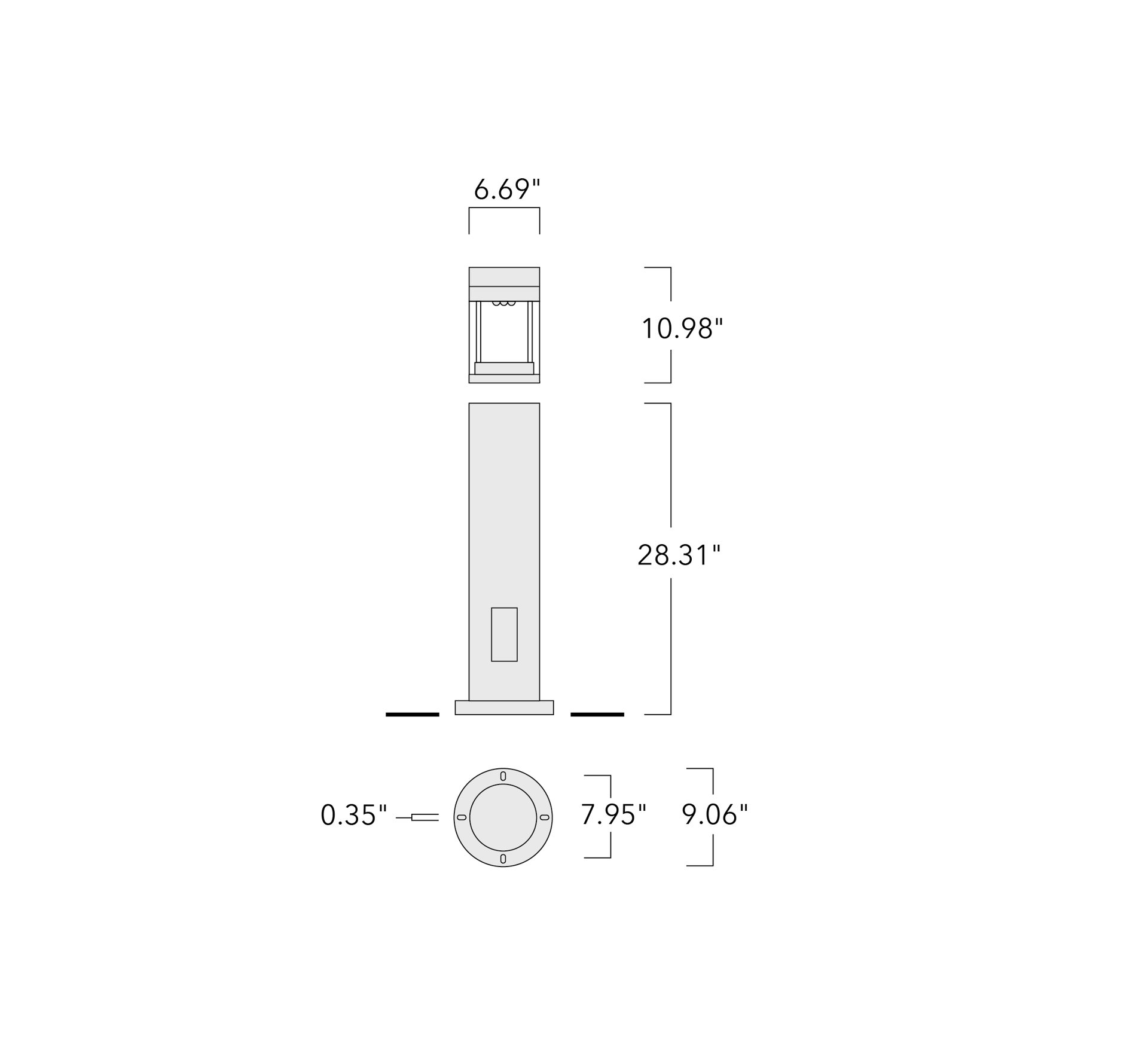

CTY150 LED Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, all-aluminium construction
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10
Ingress ProtectionIP66
Finish
Corrosion Protection5CE
MountingService door cut-out: 90 x 150 mm for ON/OFF or Eco Step Dim® Advance / Service door cut-out: 85 x 300 mm for 1-10V, DALI or Eco Step Dim® Basic
Electrical
Ballast / DriverIntegral EC electronic converter
CablePre-wired post complete with cable connecting box and service door for mains connection
Power Factor> 0.9
Power Supply
Surge Protection
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
115-1944rectangular, side throw [R65]LED-9/9W / 350 mA - 2700 K1067.280
115-1945rectangular, side throw [R65]LED-9/9W / 350 mA - 3000 K1140.880
115-1946rectangular, side throw [R65]LED-9/9W / 350 mA - 4000 K1251.2
115-1947rectangular, side throw [R65]LED-9/13W / 500 mA - 2700 K147280
115-1948rectangular, side throw [R65]LED-9/13W / 500 mA - 3000 K1582.480
115-1949rectangular, side throw [R65]LED-9/13W / 500 mA - 4000 K1692.880
115-1950rectangular, side throw [R65]LED-9/18W / 700 mA - 2700 K1987.280
115-1951rectangular, side throw [R65]LED-9/18W / 700 mA - 3000 K2134.480
115-1952rectangular, side throw [R65]LED-9/18W / 700 mA - 4000 K2281.680
115-1956asymmetric, side throw [S65]LED-9/9W / 350 mA - 2700 K974.280
115-1957asymmetric, side throw [S65]LED-9/9W / 350 mA - 3000 K1041.480
115-1958asymmetric, side throw [S65]LED-9/9W / 350 mA - 4000 K1142.1
115-1959asymmetric, side throw [S65]LED-9/13W / 500 mA - 2700 K1343.780
115-1960asymmetric, side throw [S65]LED-9/13W / 500 mA - 3000 K1444.580
115-1961asymmetric, side throw [S65]LED-9/13W / 500 mA - 4000 K1545.380
115-1962asymmetric, side throw [S65]LED-9/18W / 700 mA - 2700 K181480
115-1963asymmetric, side throw [S65]LED-9/18W / 700 mA - 3000 K1948.480
115-1964asymmetric, side throw [S65]LED-9/18W / 700 mA - 4000 K2082.780
115-1965asymmetric, side throw [S65]LED-9/27W / 1050 mA - 2700 K2754.680
115-1966asymmetric, side throw [S65]LED-9/27W / 1050 mA - 3000 K288980
115-1967asymmetric, side throw [S65]LED-9/27W / 1050 mA - 4000 K3023.380
115-1953rectangular, side throw [R65]LED-9/27W / 1050 mA - 2700 K3017.680
115-1954rectangular, side throw [R65]LED-9/27W / 1050 mA - 3000 K3164.880
115-1955rectangular, side throw [R65]LED-9/27W / 1050 mA - 4000 K331280
Showing 1 to 24 of 24 Entries
