CFY259 LED II

CFY259 LED II

Family Spec Sheet

IP66. Class I. IK10. Marine-grade, all aluminum construction. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Diffused safety glass lens. CAD-optimized indirect optics for superior illumination and glare control. Integral driver in thermally separated compartment. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Pre-wired post complete with cable connecting box and fuse for mains connection. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

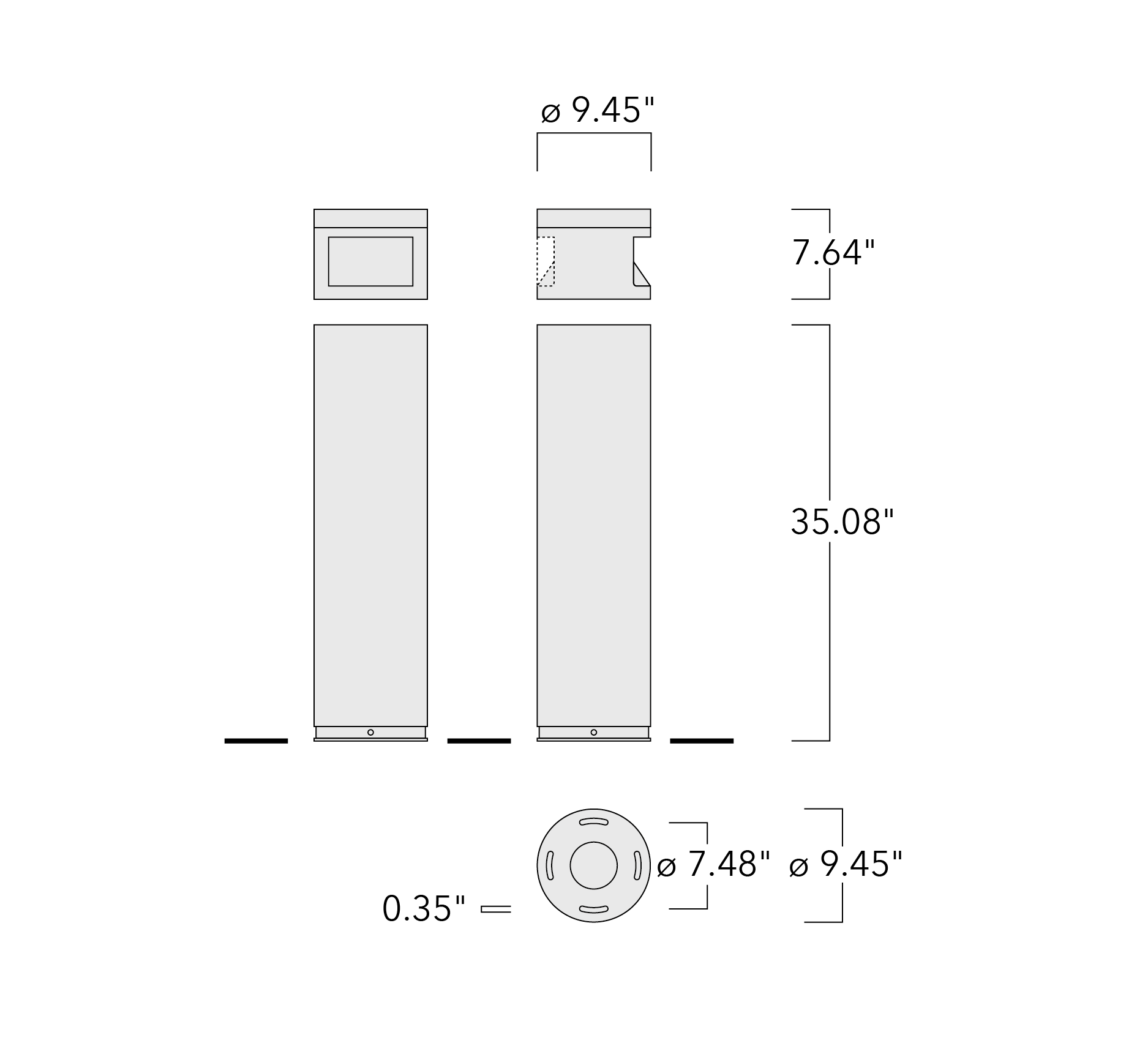

CFY259 LED II Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, all-aluminium construction
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10
Ingress ProtectionIP66
FinishPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverIntegral EC electronic converter
Cable
Power Factor
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
117-0333asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 2700 K520.780
117-0216asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 4000 K571.580
117-0217asymmetric, forward-throw, one-sidedLED-6/12W / 700 mA - 3000 K368.380
117-0218asymmetric, forward-throw, one-sidedLED-6/12W / 700 mA - 4000 K393.780
117-0267asymmetric, forward-throw, two-sidedLED-2x6/24W / 700 mA - 3000 K736.680
117-0268asymmetric, forward-throw, two-sidedLED-2x6/24W / 700 mA - 4000 K787.480
117-0269asymmetric, forward-throw, two-sidedLED-2x6/36W / 1050 mA - 3000 K1092.380
117-0270asymmetric, forward-throw, two-sidedLED-2x6/36W / 1050 mA - 4000 K1143.180
117-0215asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 3000 K546.180
117-0332asymmetric, forward-throw, one-sidedLED-6/12W / 700 mA - 2700 K342.980
117-0334asymmetric, forward-throw, two-sidedLED-2x6/24W / 700 mA - 2700 K685.8
117-0335asymmetric, forward-throw, two-sidedLED-2x6/36W / 1050 mA - 2700 K1041.580
117-6204Blank Head [BLANK]BLANK HeadNA
Showing 1 to 13 of 13 Entries
