CFY259 LED I

CFY259 LED I

Family Spec Sheet

IP66. Class I. IK10. Marine-grade, all aluminum construction. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Diffused safety glass lens. CAD-optimized indirect optics for superior illumination and glare control. Integral driver in thermally separated compartment. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Pre-wired post complete with cable connecting box and fuse for mains connection. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

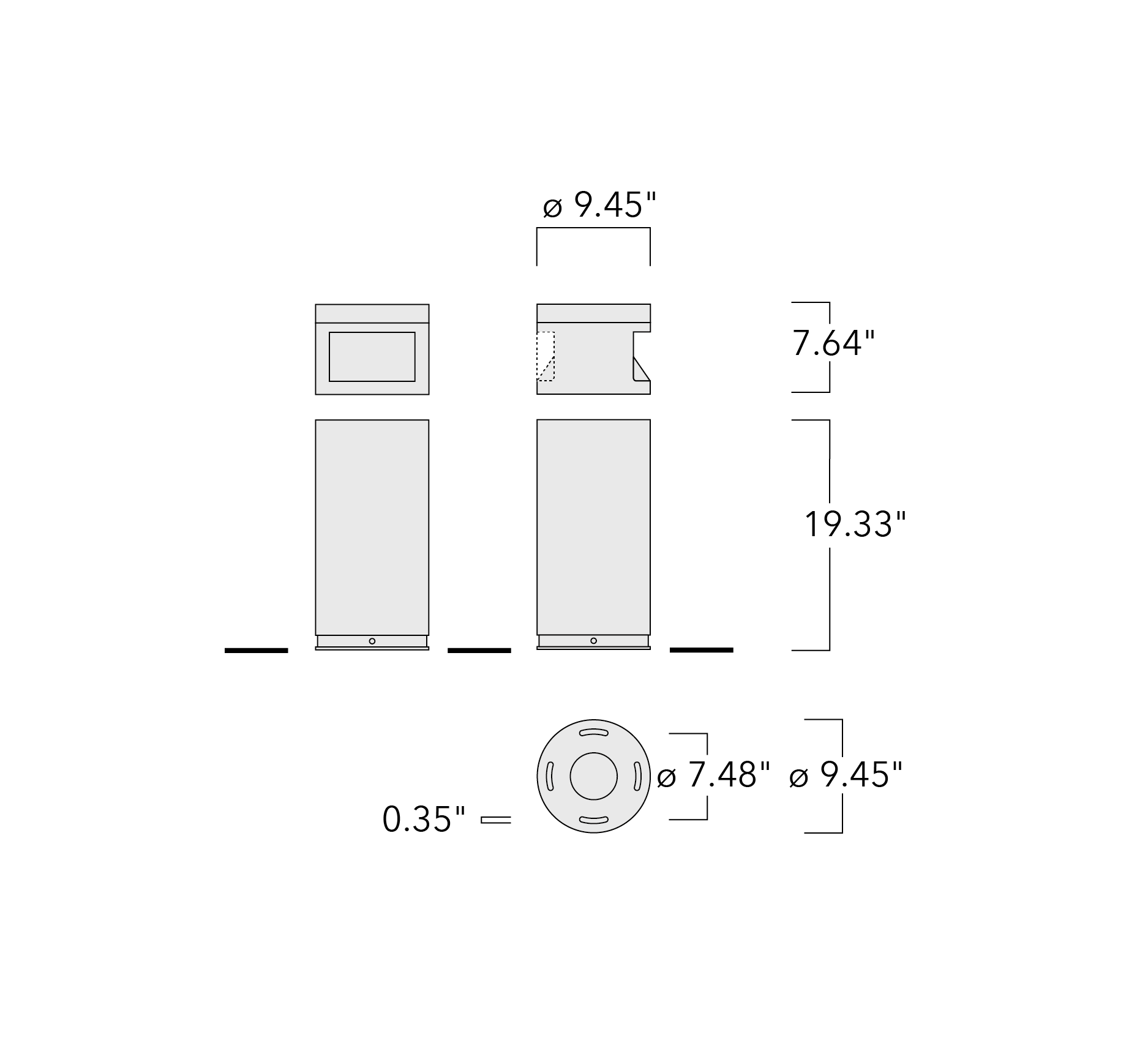

CFY259 LED I Schematics
Colors
RAL9004 Black
RAL9006 White
RAL9007 Grey Metallic
RAL7016 Anthracite grey
RAL9016 White
RAL8019 Dark Bronze
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, all-aluminium construction
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10
Ingress ProtectionIP66
FinishPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverIntegral EC electronic converter
Cable
Power Factor
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge ProtectionIntegral 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
117-0211asymmetric, forward-throw, one-sidedLED-6/12W / 700 mA - 3000 K368.380
117-0212asymmetric, forward-throw, one-sidedLED-6/12W / 700 mA - 4000 K393.780
117-0213asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 3000 K546.180
117-0214asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 4000 K571.580
117-0273asymmetric, forward-throw, two-sidedLED-2x6/24W / 700 mA - 3000 K736.680
117-0274asymmetric, forward-throw, two-sidedLED-2x6/24W / 700 mA - 4000 K787.480
117-0275asymmetric, forward-throw, two-sidedLED-2x6/36W / 1050 mA - 3000 K1092.380
117-0276asymmetric, forward-throw, two-sidedLED-2x6/36W / 1050 mA - 4000 K1143.180
117-0328asymmetric, forward-throw, one-sidedLED-6/12W / 700 mA - 2700 K342.980
117-0329asymmetric, forward-throw, one-sidedLED-6/18W / 1050 mA - 2700 K520.780
117-0330asymmetric, forward-throw, two-sidedLED-2x6/24W / 700 mA - 2700 K685.8
117-0331asymmetric, forward-throw, two-sidedLED-2x6/36W / 1050 mA - 2700 K1041.580
Showing 1 to 12 of 12 Entries
