FLC121 LED RAIL66

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Includes 1 ft of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Knuckle permits 350° horizontal and 90° vertical aiming of optics. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

Colors

RAL9004 Black

RAL9006 White

RAL9007 Grey Metallic

RAL7016 Anthracite grey

RAL9016 White

RAL8019 Dark Bronze

Powdercoat finish available in 35 different colours

Material

Body	Marine-grade die-cast aluminium alloy
Fasteners	PCS Polymer Coated Stainless Steel hardware
Gasket	Silicone rubber gasket
Impact Protection	IK07
Ingress Protection	IP66
Finish	Powdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 and Dark Bronze RAL8019
Corrosion Protection	5CE
Mounting	Mounting clamp for installation to RAIL66 mounting system. Refer to mounting accessories for complete range of RAIL66 mounting systems

Electrical

Ballast / Driver	Integral EC electronic converter in thermally-separated compartment
Cable	1 ft of flexible cable
Power Factor
Power Supply	Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge Protection

Additional Information

Lifetime	Ta=25°/40° L90B10 > 90000h

Light Distribution

Delivered Lumen

To

Colour Temperature

Part-ID	Light Distribution	Light Source	Lumen	CRI	Open Data	PDF	IES, LDT, ULD
145-0043	symmetric, medium beam [M]	LED-6/12W / 700 mA - 3000 K	1511.8	80
145-0044	symmetric, medium beam [M]	LED-6/12W / 700 mA - 4000 K	1616.1	80
145-0046	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/12W / 700 mA - 3000 K	1610.7	80
145-0046	linear spread, very narrow beam, 'sharp cut-off'	LED-6/12W / 700 mA - 3000 K	1526.2	80
145-0047	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/12W / 700 mA - 4000 K	1721.8	80
145-0047	linear spread, very narrow beam, 'sharp cut-off'	LED-6/12W / 700 mA - 4000 K	1631.5	80
145-0088	symmetric, wide beam [W]	LED-6/12W / 700 mA - 3000 K	1347.1	80
145-0089	symmetric, wide beam [W]	LED-6/12W / 700 mA - 4000 K	1440	80
145-0091	symmetric, very narrow beam [VN]	LED-6/12W / 700 mA - 3000 K	1496.5	80
145-0091	linear spread, very narrow beam [VN]	LED-6/12W / 700 mA - 3000 K	1386.3	80
145-0092	symmetric, very narrow beam [VN]	LED-6/12W / 700 mA - 4000 K	1599.7	80
145-0092	linear spread, very narrow beam [VN]	LED-6/12W / 700 mA - 4000 K	1481.9	80
145-0044	wallwash [A20]	LED-6/12W / 700 mA - 4000 K	1296.6	80
145-0043	wallwash [A20]	LED-6/12W / 700 mA - 3000 K	1213	80
145-0297	symmetric, wide beam [W]	LED-6/12W / 700 mA - 2700 K	1254.2	80
145-0298	symmetric, medium beam [M]	LED-6/12W / 700 mA - 2700 K	1407.5	80
145-0299	symmetric, very narrow beam [VN]	LED-6/12W / 700 mA - 2700 K	1393.3	80
145-0300	symmetric, very narrow beam, 'sharp cut-off' [VNS]	LED-6/12W / 700 mA - 2700 K	1499.6	80
145-0298	wallwash [A20]	LED-6/12W / 700 mA - 2700 K	1129.3	80
145-0299	linear spread, very narrow beam [VN]	LED-6/12W / 700 mA - 2700 K	1290.7	80
145-0300	linear spread, very narrow beam, 'sharp cut-off'	LED-6/12W / 700 mA - 2700 K	1421	80

Showing 1 to 21 of 21 Entries

Accessories

Optical Accessories

Mounting Accessories

Control

	Part-ID	Title	PDF	Open Data
Please select an accessory category

Item	Download	Mail Link
Product Images
Light Distributions
Install Instructions
Manual

FLC | Standard

Light Distribution

Delivered Lumen

Colour Temperature

Accessories

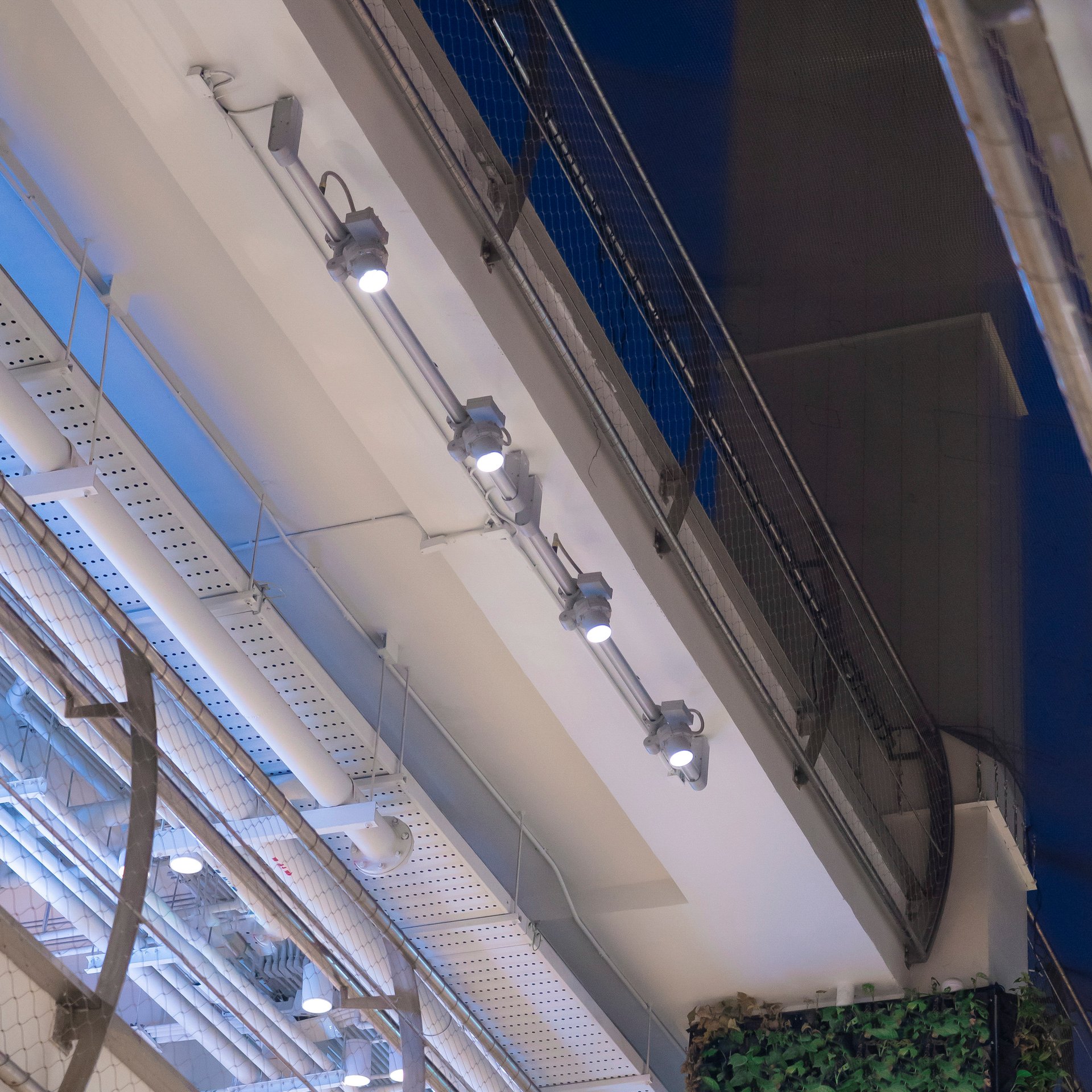

Projects utilizing the FLC121 LED RAIL66
