RLS400 series

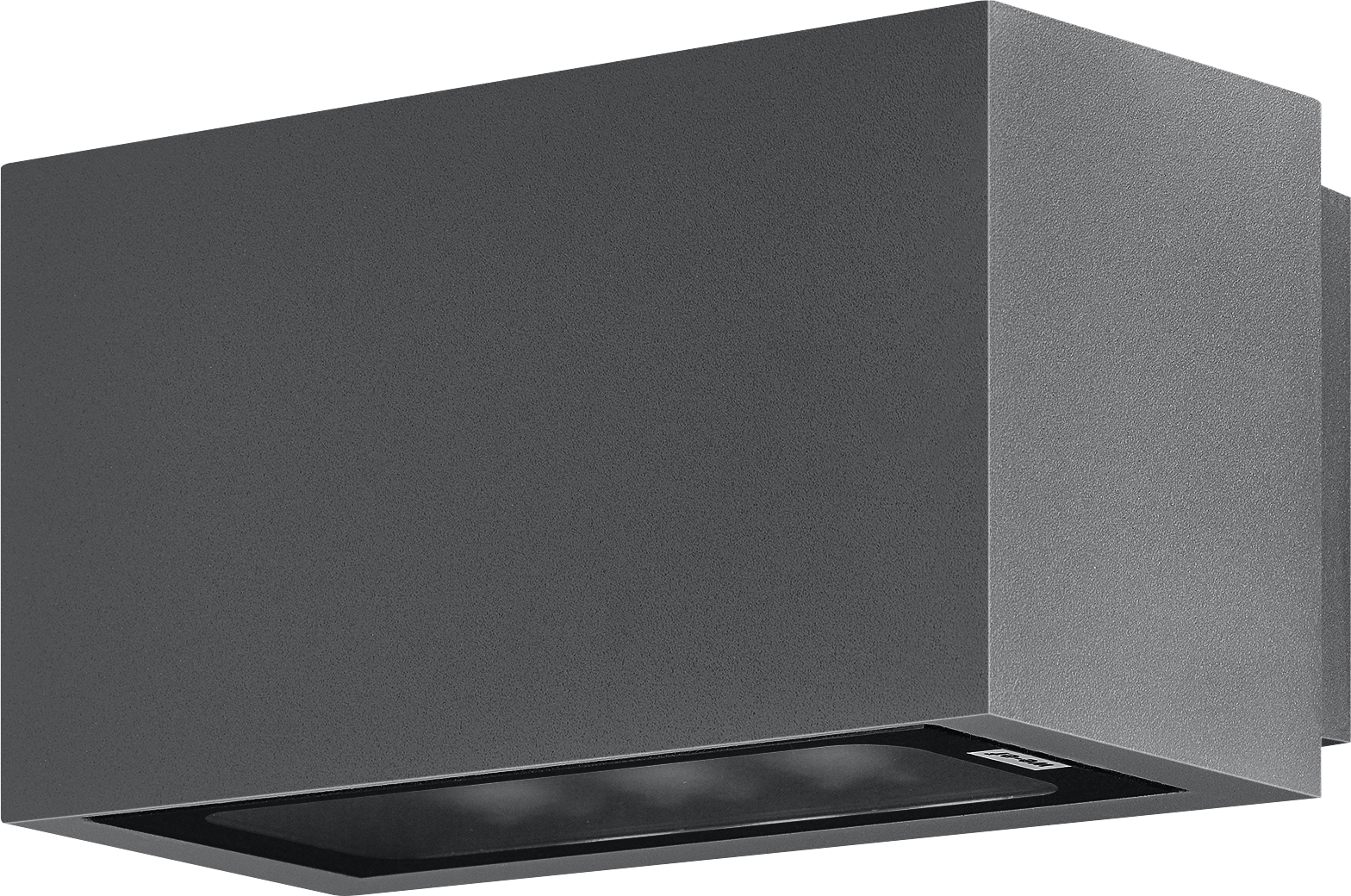

RLS410 LED
Choose a family:
IP66. Class I. Class II on request. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire can be mounted for up or down lighting. Version with emergency lighting on request.
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL9016 Traffic white
RAL7016 Anthracite grey
RAL9006 White aluminium
Material
| Body | Marine-grade, die-cast aluminium alloy |
| Lens | Safety glass lens |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK08 |
| Ingress Protection | IP66 |
| Corrosion Protection | 5CE |
Electrical
| Ballast / Driver | Standard. Optional DALI version available. To be specified at time of ordering. |
| Power Supply | 220-240V / 50-60 Hz |
| Surge Protection | 1/2 kV |
Additional Information
- - - -
Downloads
| Installation Instructions |
