PSY414 LED

PSY414 LED

Family Spec Sheet

IP66. Class I. Class II on request. IK10. Marine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. RFC® Reflection Free Contour main lens. Integral EC electronic converter in thermally-separated compartment. DALI. CAD-optimised optics for superior illumination and glare control. Factory installed LED circuit board. Pre-wired post complete with cable connecting box and fuse for mains connection. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Supplied as a complete luminaire (luminaire head and standpipe). Please note: The standpipe height must be entered for the photometric calculation.

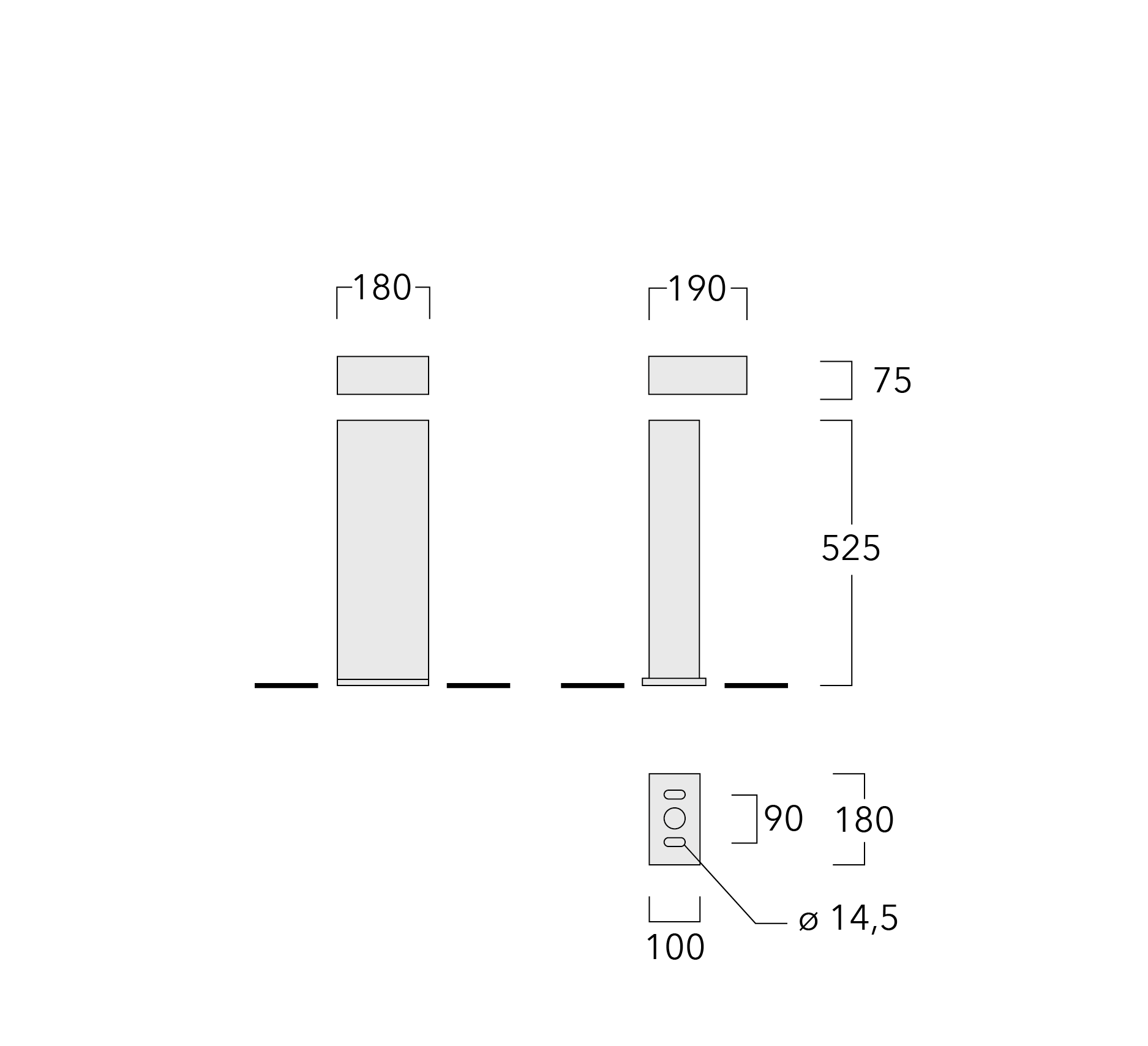

PSY414 LED Schematics
Colors
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
RAL8019 Grey brown
Powdercoat finish available in 35 different colours
Material
BodyMarine-grade, die-cast aluminium alloy. Inner steel core.
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10
Ingress ProtectionIP66/IP67
Finish
Corrosion Protection5CE
Mounting
Electrical
Ballast / DriverDALI
Cable
Power Factor> 0.9
Power Supply220-240V / 50-60 Hz
Surge Protection10kV (SP10)
Additional Information
LifetimeTa=25° L90B10 > 90000h
Energy efficiency classEnergy efficiency class

Delivered Lumen

To
Part-IDLight DistributionLight SourceLumenCRIOpen DataPDFIES, LDT, ULD
114-0128rectangular, side throw [R45]LED-3/6W / 700 mA - 3000 K650.880
114-0129rectangular, side throw [R45]LED-3/6W / 700 mA - 4000 K695.780
114-0130rectangular, side throw [R45]LED-3/9W / 1050mA - 3000 K953.580
114-0131rectangular, side throw [R45]LED-3/9W / 1050mA - 4000 K997.880
114-0132rectangular, side throw [R45]LED-3/13W / 1400 mA - 3000 K1219.580
114-0133rectangular, side throw [R45]LED-3/13W / 1400 mA - 4000 K127580
114-0184rectangular, side throw [R45]LED-3/6W / 700 mA - 2700 K60680
114-0185rectangular, side throw [R45]LED-3/9W / 1050 mA - 2700 K909.180
114-0186rectangular, side throw [R45]LED-3/13W / 1400 mA - 2700 K115380
Showing 1 to 9 of 9 Entries
