VFL540-SE LED (TENNIS)
Choose a family:

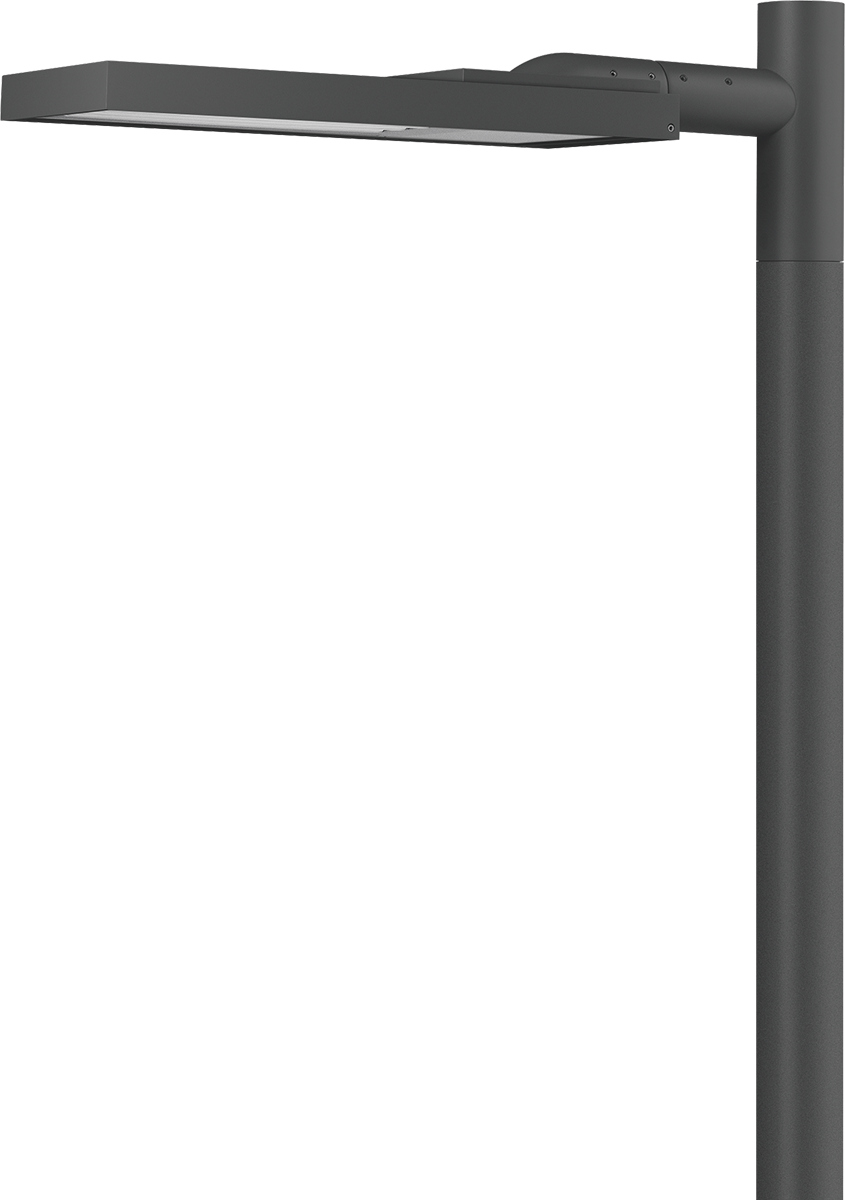

L680×W630 mm | VFL540-SE LED (TENNIS)IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised OLC® One LED Concept optics for superior illumination and glare control. Remote EC electronic converter, IP66. TM-C 80 poles. Tubular steel, constant section, hot dipped galvanised. Powdercoat finish to match luminaire. Surface mounting flange plate. Service door including PCS hardware. Attention: This product is suitable for operation in exterior tennis court installations only.
Colours
Material
| Body | Marine-grade, die-cast aluminium alloy |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK08 |
| Ingress Protection | IP66 |
| Finish | Powdercoat finish in RAL 6005, RAL 9004, RAL 9007, RAL 7016 or RAL 9016 |
| Corrosion Protection | 5CE |
Electrical
| Ballast / Driver | Integral EC electronic converter |
| Cable | Including 8 m of cable |
| Surge Protection | 10 kV |
Additional Information
| Poles | TM-C 80 poles. Tubular steel, constant section, hot dipped galvanised. Powdercoat finish to match luminaire. Surface mounting flange plate. Service door including PCS hardware. |
| Attention: | This product is suitable for operation in exterior tennis court installations only. |
Accessories
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions |
