FLB100 series

FLB141 LED Space frame - Asymmetric

Static White

Choose a variant:

RAIL66
Space Frame

Choose a family:

FLB141 LED Space frame - Asymmetric
L×W: 215×175 mm
FLB141 LED Space frame - Symmetric
L×W: 215×175 mm
Home
Products
RAIL66
FLB141 LED Space frame - Asymmetric
Family Spec Sheet Installation Instructions More Downloads

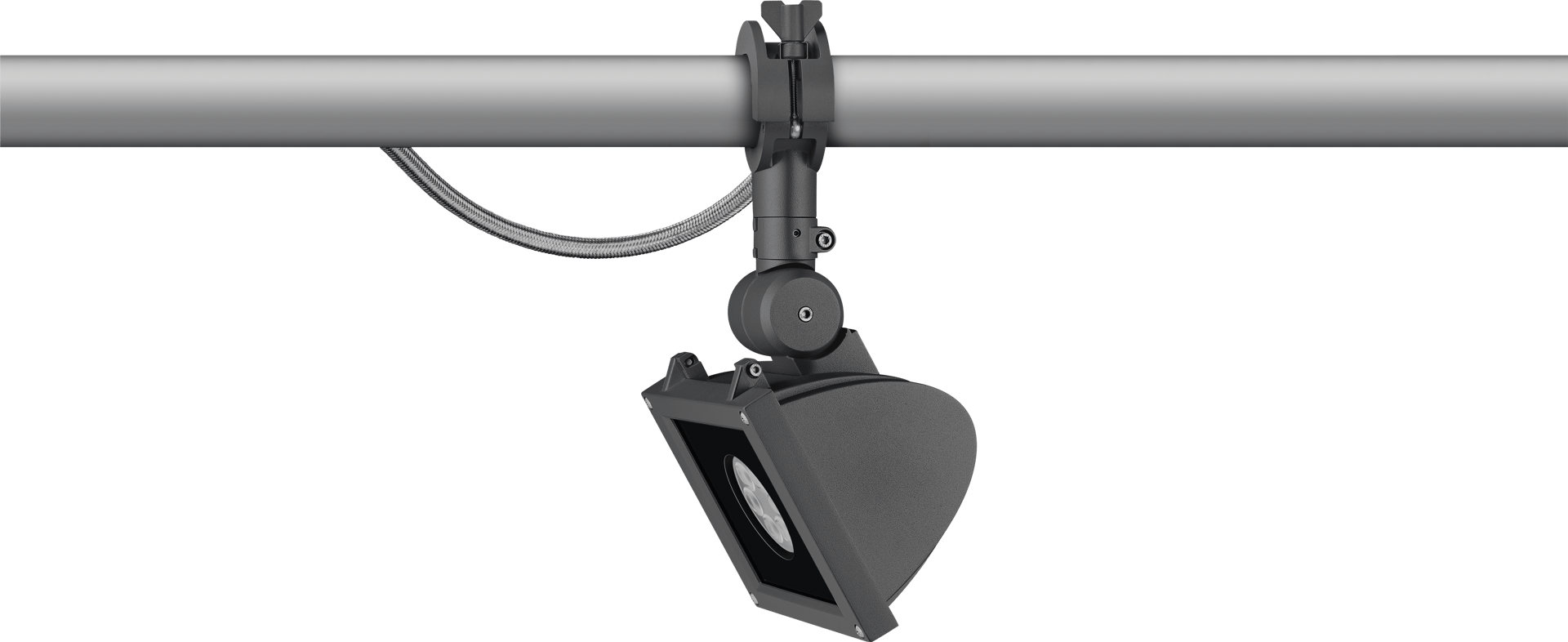

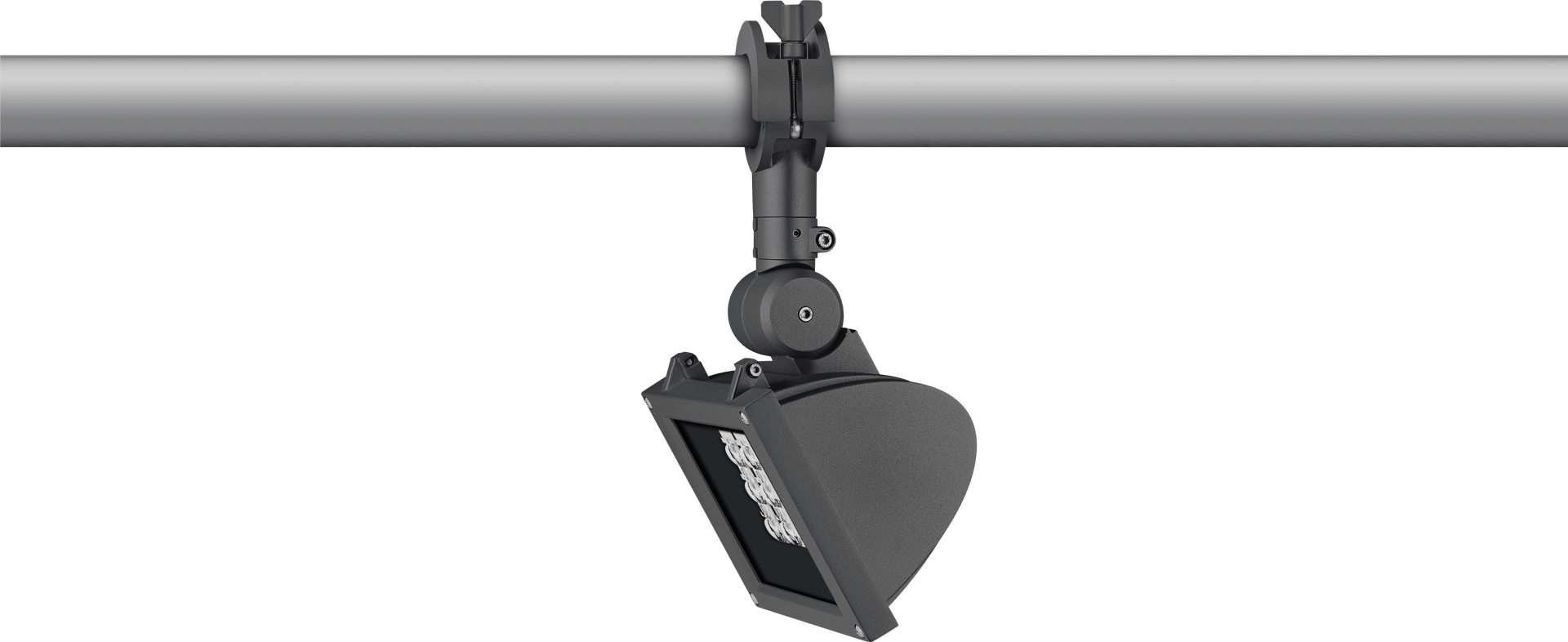

IP66, Class I. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens, hinged. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Including terminal box, for mounting on ø 48-60 mm pipes or space frames.

FLB141 LED Space frame - Asymmetric Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Additional Information

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
161-5976pedestrian/bicycle lane [P65]LED-6/18W / 1050 mA - 3000 K1523.780 ULD
161-5978pedestrian/bicycle lane [P65]LED-6/18W / 1050 mA - 4000 K1594.680 ULD
161-5977pedestrian/bicycle lane [P65]LED-6/26W / 1400 mA - 3000 K1948.980 ULD
161-5979pedestrian/bicycle lane [P65]LED-6/26W / 1400 mA - 4000 K2037.580 ULD
161-5972asymmetric, side throw [S70]LED-6/18W / 1050 mA - 3000 K1597.180 ULD
161-5974asymmetric, side throw [S70]LED-6/18W / 1050 mA - 4000 K1671.380 ULD
161-5973asymmetric, side throw [S70]LED-6/26W / 1400 mA - 3000 K2042.880 ULD
161-5975asymmetric, side throw [S70]LED-6/26W / 1400 mA - 4000 K2135.680 ULD
161-5984asymmetric, forward throw [A60]LED-6/18W / 1050 mA - 3000 K1468.780 ULD
161-5986asymmetric, forward throw [A60]LED-6/18W / 1050 mA - 4000 K153780 ULD
161-5985asymmetric, forward throw [A60]LED-6/26W / 1400 mA - 3000 K1878.680 ULD
161-5987asymmetric, forward throw [A60]LED-6/26W / 1400 mA - 4000 K196480 ULD
161-5980rectangular, side throw [R65]LED-6/18W / 1050 mA - 3000 K1457.180 ULD
161-5982rectangular, side throw [R65]LED-6/18W / 1050 mA - 4000 K1524.980 ULD
161-5981rectangular, side throw [R65]LED-6/26W / 1400 mA - 3000 K1863.780 ULD
161-5983rectangular, side throw [R65]LED-6/26W / 1400 mA - 4000 K1948.580 ULD
Showing 1 to 16 of 16 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
161-9118Wire guard EG
