FLB100 series

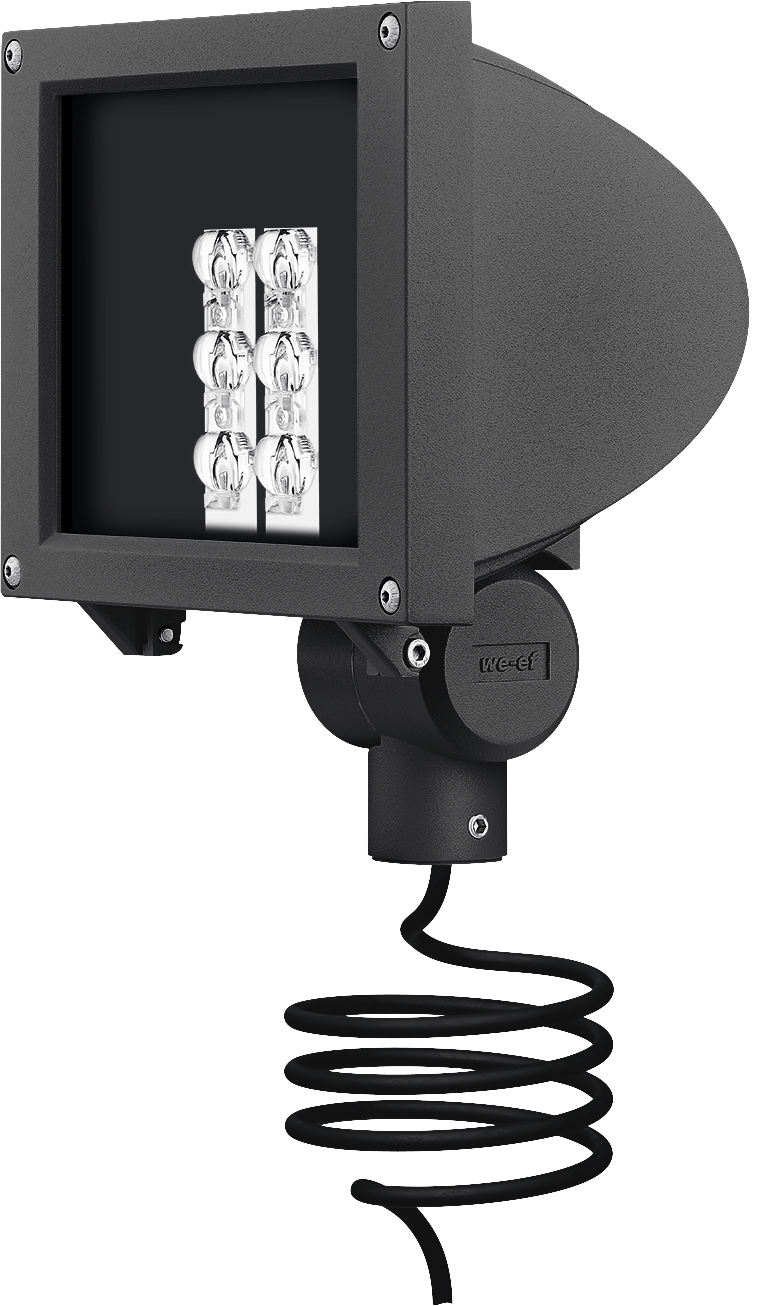

FLB141 LED Spigot mounted - Asymmetric

Static White

Choose a variant:

Spigot-Mounted
Surface-Mounted
Wallbracket

Choose a family:

L215×W175 mm | FLB141 LED Spigot mounted - Asymmetric L215×W175 mm | FLB141 LED Spigot mounted - Symmetric
Home
Products
Projectors
FLB141 LED #1 Asymmetric
Family Spec Sheet Installation Instructions More Downloads

IP66, Class I. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens, hinged. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept.

FLB141 LED #1 Asymmetric Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
CableIncluding 1.5 m of flexible PVC free cable
Additional Information

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
161-5836pedestrian/bicycle lane [P65]LED-6/18W / 1050 mA - 3000 K1523.780
161-5838pedestrian/bicycle lane [P65]LED-6/18W / 1050 mA - 4000 K1594.680
161-5837pedestrian/bicycle lane [P65]LED-6/26W / 1400 mA - 3000 K1948.980
161-5839pedestrian/bicycle lane [P65]LED-6/26W / 1400 mA - 4000 K2037.580
161-5832asymmetric, side throw [S70]LED-6/18W / 1050 mA - 3000 K1597.180
161-5834asymmetric, side throw [S70]LED-6/18W / 1050 mA - 4000 K1671.380
161-5833asymmetric, side throw [S70]LED-6/26W / 1400 mA - 3000 K2042.880
161-5835asymmetric, side throw [S70]LED-6/26W / 1400 mA - 4000 K2135.680
161-5844asymmetric, forward throw [A60]LED-6/18W / 1050 mA - 3000 K1468.780
161-5846asymmetric, forward throw [A60]LED-6/18W / 1050 mA - 4000 K153780
161-5845asymmetric, forward throw [A60]LED-6/26W / 1400 mA - 3000 K1878.680
161-5847asymmetric, forward throw [A60]LED-6/26W / 1400 mA - 4000 K196480
161-5840rectangular, side throw [R65]LED-6/18W / 1050 mA - 3000 K1457.180
161-5842rectangular, side throw [R65]LED-6/18W / 1050 mA - 4000 K1524.980
161-5841rectangular, side throw [R65]LED-6/26W / 1400 mA - 3000 K1863.780
161-5843rectangular, side throw [R65]LED-6/26W / 1400 mA - 4000 K1948.580
Showing 1 to 16 of 16 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
145-9536Column fitter FLB100
145-9535Flat surface fitter FLB100
