EVC100 series

EVC120-FS LED

Static White

Choose a family:

D295 ⌀172 mm | EVC120-FS LED D295 ⌀172 mm | EVC129-FS LED D370 ⌀272 mm | EVC130-FS LED
Home
Products
Inground Luminaires

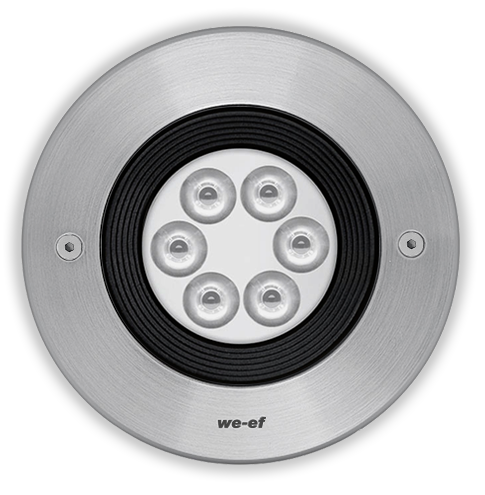

EVC120-FS LED
Family Spec Sheet Installation Instructions More Downloads

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Anti-wick technology, equipped with a cable gland and 1.5 meters of flexible, PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

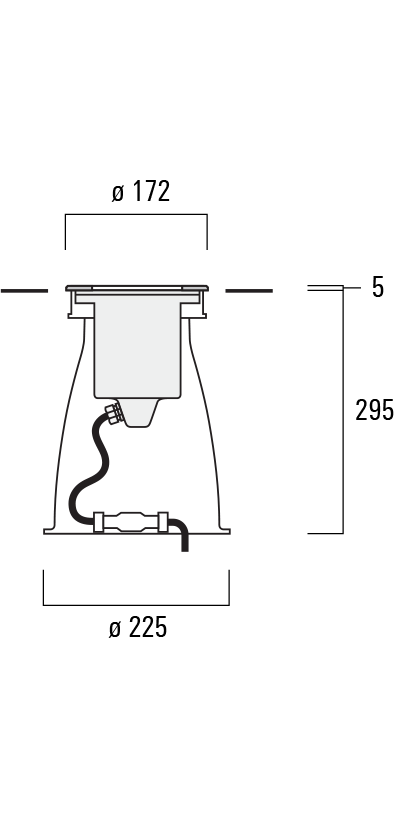

EVC120-FS LED Schematics
Colours
Stainless Steel
Material
BodyStainless steel construction
FastenersPCS hardware
GasketSilicone rubber gasket
Impact ProtectionIK10+
Ingress ProtectionIP69
Finish-
MountingLuminaire installation blockout and sealable junction box included in supply
Electrical
Ballast / DriverIntegral EC electronic converter
CableComplete with cable gland and 1.5 m of flexible PVC-free cable
Additional Information

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
185-7669symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K1363.580
185-7670symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1624.780
185-7671symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K1457.580
185-7672symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1736.880
185-9194symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1531.880
185-9195symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K149780
185-9197symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1637.480
185-9198symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1600.380
185-9194wallwashLED-6/12W / 700 mA - 3000 K1179.480
185-9197wallwashLED-6/12W / 700 mA - 4000 K1260.880
Showing 1 to 10 of 10 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0013DALI interface
