XRZ300 series

XRZ334 LED

Static White

Choose a family:

H900 mm | XRZ324 LED H1100 mm | XRZ334 LED
Home
Products
Bollards and Pathway Luminaires

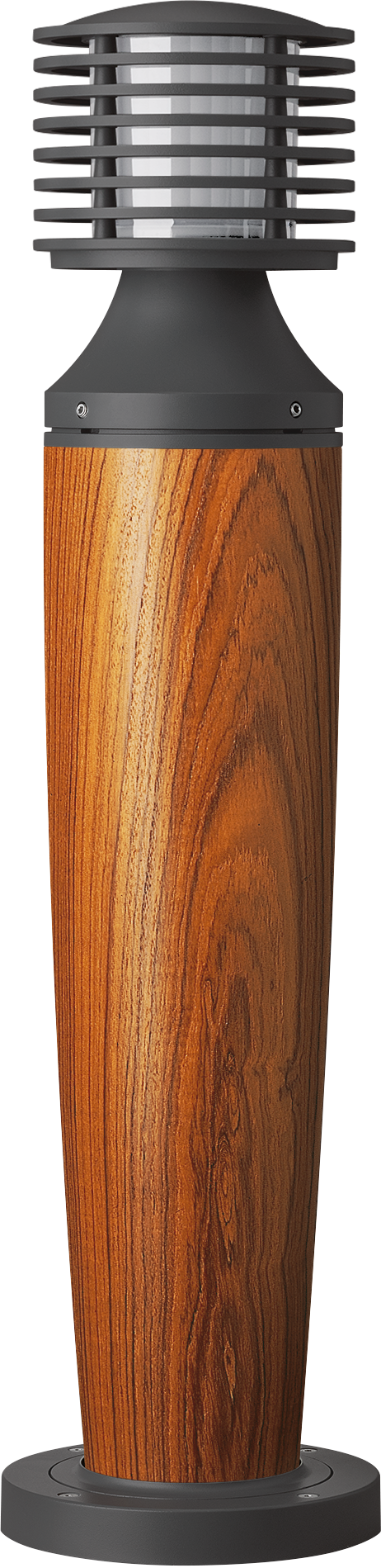

XRZ334-TE LED
Family Spec Sheet Installation Instructions More Downloads

IP55, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Borosilicate glass prismatic lens. Silicone rubber gaskets. Impregnated hardwood post. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output.

XRZ334-TE LED Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, all-aluminium construction
FastenersPCS hardware
GasketSilicone rubber gaskets
Impact ProtectionIK10
Ingress ProtectionIP55
FinishPowdercoat finish in Classic Silver, black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection5CE
MountingPlanted root is available on request
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Additional Information
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
114-9631360° symmetric distribution, diffusedLED-12W / 350 mA - 3000 K463.180
114-9632360° symmetric distribution, diffusedLED-12W / 350 mA - 4000 K497.280
Showing 1 to 2 of 2 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0013DALI interface
