RRZ300 series

RRZ324 LED

Static White

Choose a family:

H900 mm | RRZ324 LED H1100 mm | RRZ334 LED
Home
Products
Bollards and Pathway Luminaires

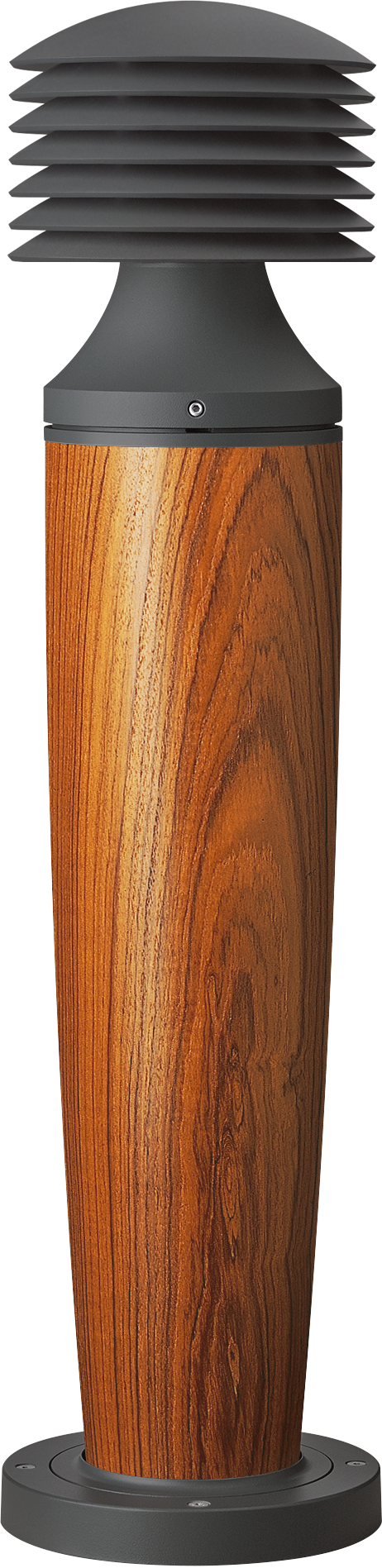

RRZ324 LED
Family Spec Sheet Installation Instructions More Downloads

IP55, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate prismatic lens. Silicone rubber gaskets. Impregnated hardwood post. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output.

RRZ324 LED Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, all-aluminium construction
FastenersPCS hardware
GasketSilicone rubber gaskets
Impact ProtectionIK10
Ingress ProtectionIP55
FinishPowdercoat finish in Classic Silver, black RAL 9004, grey aluminium RAL 9007 or white RAL 9016
Corrosion Protection5CE
MountingPlanted root is available on request
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Additional Information
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
115-9648360° symmetric distribution, shieldedLED-12W / 350 mA - 3000 K304.580
115-9649360° symmetric distribution, shieldedLED-12W / 350 mA - 4000 K32780
Showing 1 to 2 of 2 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
300-0464-APPlanted root ESV4
ItemDownload
