FLC321 Space frame

Back
Regular Frame Regular Frame
Space Frame Space Frame
Family Spec Sheet
58 mm 58 mm
85 mm 85 mm
115 mm 115 mm

IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.
Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Mains voltage versions, ON-OFF Class I. 1-10 V analogue dimming or DALI interface available on request; refer to accessory listings. Including terminal box, for mounting on ø 48-60 mm pipes or space frames. Optical accessories are factory-installed. To be specified at time of ordering.

Eigenschaften

Material

GehäuseMarine-grade, die-cast aluminium alloy
SchraubenPCS hardware
FarbenPending
DichtungSilicone CCG® Controlled Compression Gasket
SchlagfestigkeitIK08
SchutzartIP66
Abdeckung
Korrosionsschutz5CE

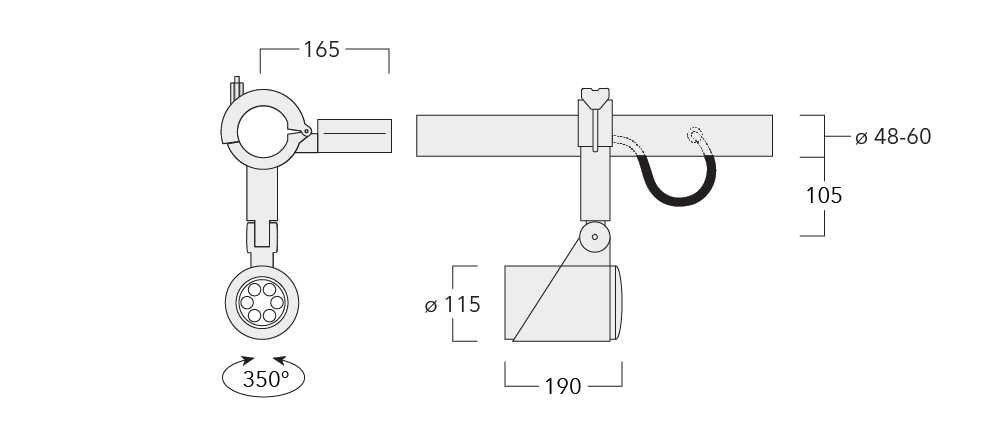

BefestigungIncluding terminal box, for mounting on ø 48-60 mm pipes or space frames

Elektrik

LED TreiberIntegral EC electronic converter in thermally-separated compartment
Kabel
Leistungsfaktor
Netz
Überspannungsschutz

Weitere Eigenschaften

LifetimeTa=25° L90B10 > 90000h

Lichtverteilung

Lichtstrom (lm)

Farbtemperatur (K)

Artikel­nummerLicht­verteilungLicht­quelleBemessungs­lichtstromCRIVorschalt­gerätGewicht (kg)Open Data (txt)Daten­blattIES, LDT, ULD
145-7948symmetric, wide beam [B]LED-6/12W / 700 mA - 2700 K887.880EC3.70
145-7950symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K953.580EC3.70
145-7952symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K1019.380EC3.70
145-7954symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1162.680EC3.70
145-7956symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1248.780EC3.70
145-7958symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1334.980EC3.70
145-7960symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1224.780EC3.70
145-7962symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1315.480EC3.70
145-7964symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1406.280EC3.70
145-7966symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K1259.780EC3.70
145-7968symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K135380EC3.70
145-7970symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1446.380EC3.70
145-7949symmetric, wide beam [B]LED-6/18W / 1050 mA - 2700 K123380EC3.70
145-7951symmetric, wide beam [B]LED-6/18W / 1050 mA - 3000 K1331.780EC3.70
145-7953symmetric, wide beam [B]LED-6/18W / 1050 mA - 4000 K1413.980EC3.70
145-7955symmetric, medium beam [M]LED-6/18W / 1050 mA - 2700 K1614.880EC3.70
145-7957symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K1743.980EC3.70
145-7959symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K1851.680EC3.70
145-7961symmetric, very narrow beam [EE]LED-6/18W / 1050 mA - 2700 K170180EC3.70
145-7963symmetric, very narrow beam [EE]LED-6/18W / 1050 mA - 3000 K1837.180EC3.70
145-7965symmetric, very narrow beam [EE]LED-6/18W / 1050 mA - 4000 K1950.580EC3.70
145-7967symmetric, very narrow beam, sharp cut-off [EES]LED-6/18W / 1050 mA - 2700 K1749.680EC3.70
145-7969symmetric, very narrow beam, sharp cut-off [EES]LED-6/18W / 1050 mA - 3000 K1889.580EC3.70
145-7971symmetric, very narrow beam, sharp cut-off [EES]LED-6/18W / 1050 mA - 4000 K2006.280EC3.70
145-7368symmetric, wide beam [B]LED-6/26W / 1400 mA - 2700K1665.880EC4.30
Showing 1 to 25 of 63 Entries
