STX200 Serie
STX259 LED

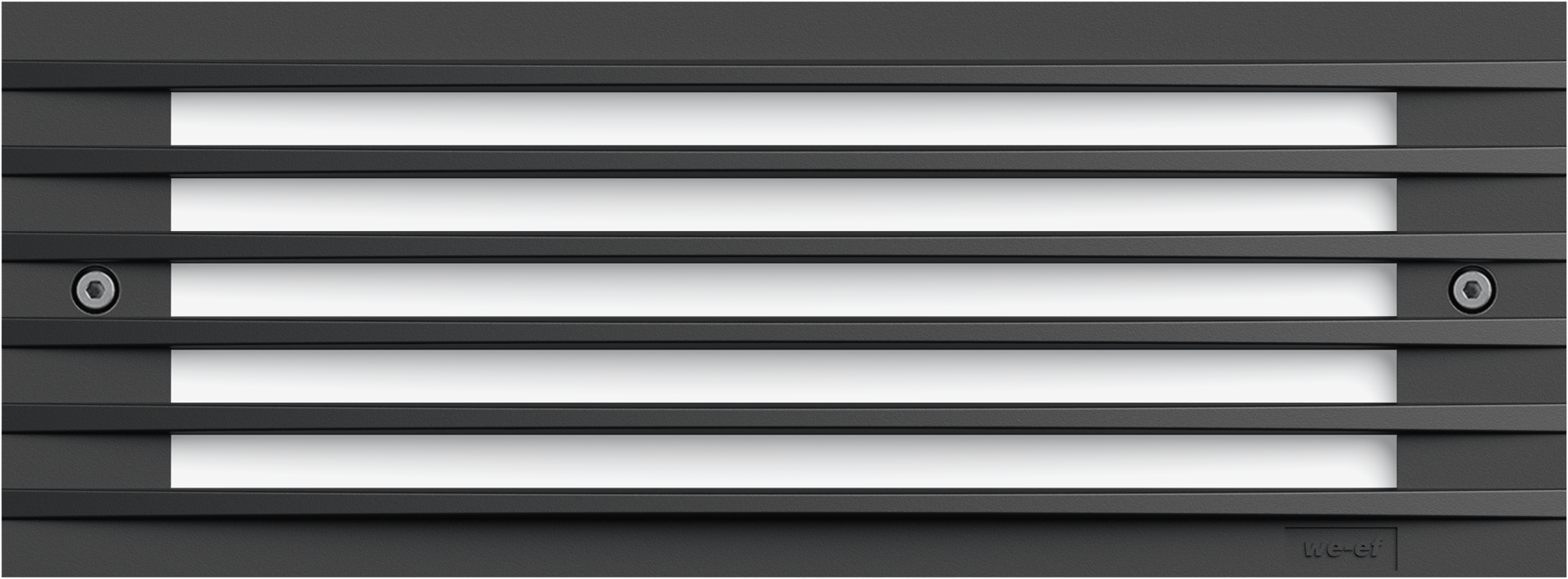

Recessed Wall Luminaire. ADA (American Disabilities Act) Compliant. IP55. Class I. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Polycarbonate main lens. Two cable entries. 0-10V Dimming standard. A pre-installation blockout is available and recommended for mounting in concrete walls; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Farben
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Materialinformationen
| Gehäuse | Luminaire body and lens frame constructed in die cast aluminum. |
| Schrauben | PCS polymer coated stainless steel |
| Dichtung | Silicone rubber gasket |
| Schlagfestigkeit | IK10 |
| Schutzart | IP55 |
| Oberflächenbehandlung | Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019. |
| Korrosionsbeständigkeit | 5CE |
| Installation | Suitable for installation in cavity wall construction or concrete pour construction using optional installation blockout. |
Elektrische Informationen
| Kabel | Suitable for through wiring. |
| Netz | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
Weitere Informationen
| Lifetime | LED >60,000 h Ta 25°(B10/70)<br> Control gear >50,000 h Ta 25° |
- - - -
