QRI300 series
QRI374 LED

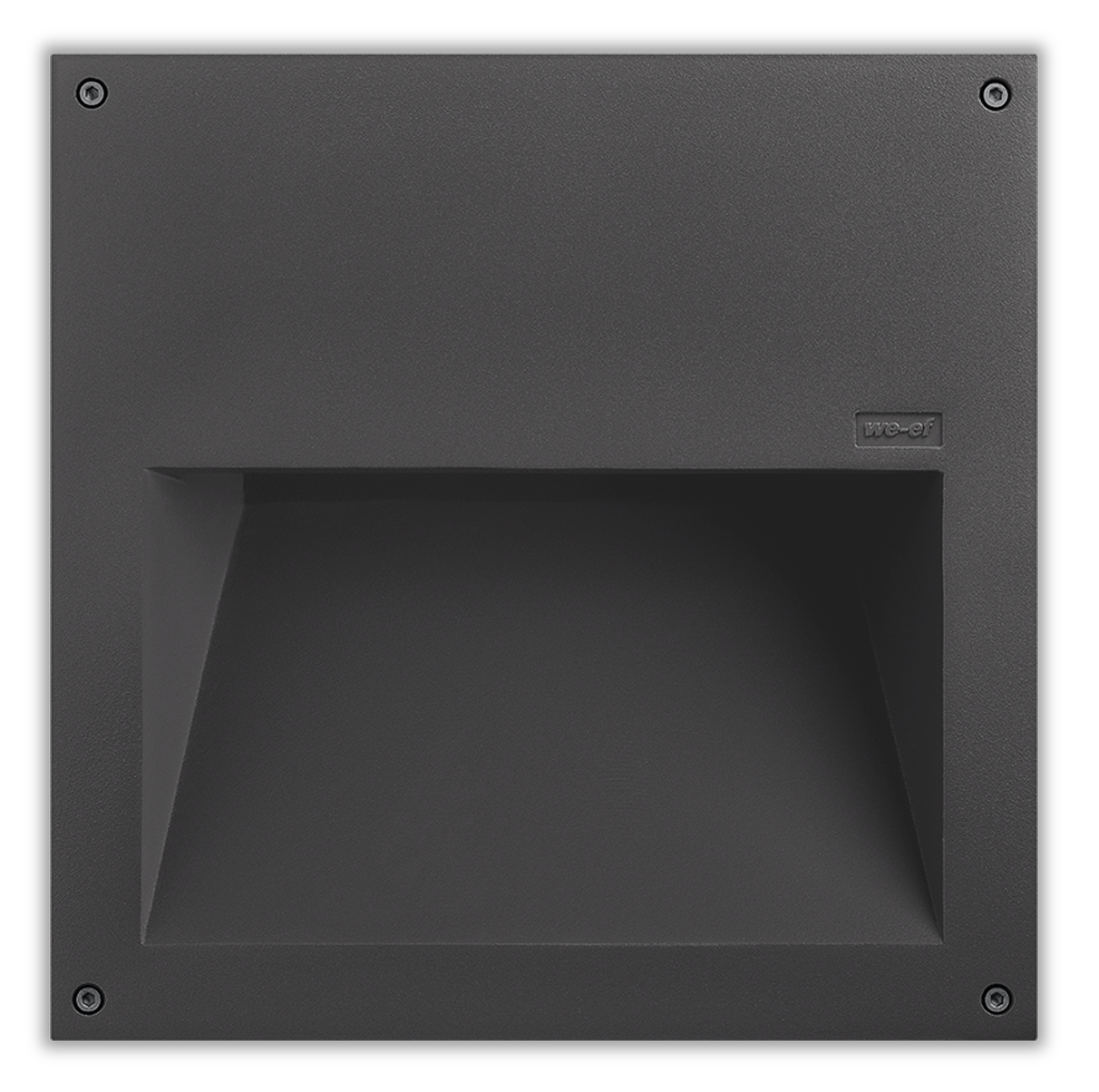

Recessed LED wall luminaire. ADA (American Disabilities Act) Compliant. IP55. Class I. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Two cable entries. 0-10V Dimming comes standard with luminaire. A pre-installation blockout is available and recommended for mounting in concrete walls; to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
| Body | Luminaire body and lens frame constructed in die cast aluminum. |
| Fasteners | PCS polymer coated stainless steel |
| Gasket | Silicone rubber gasket |
| Impact Protection | IK10 |
| Ingress Protection | IP55 |
| Finish | Powder coat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 or Dark Bronze RAL8019. |
| Corrosion Protection | 5CE |
| Mounting | Suitable for installation in cavity wall construction or concrete pour construction using optional installation blockout. |
Electrical
| Cable | Suitable for through wiring. |
| Power Supply | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
Additional Information
| Ambient Temperature | Ta less than 25 deg C |
- - - -
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions |
