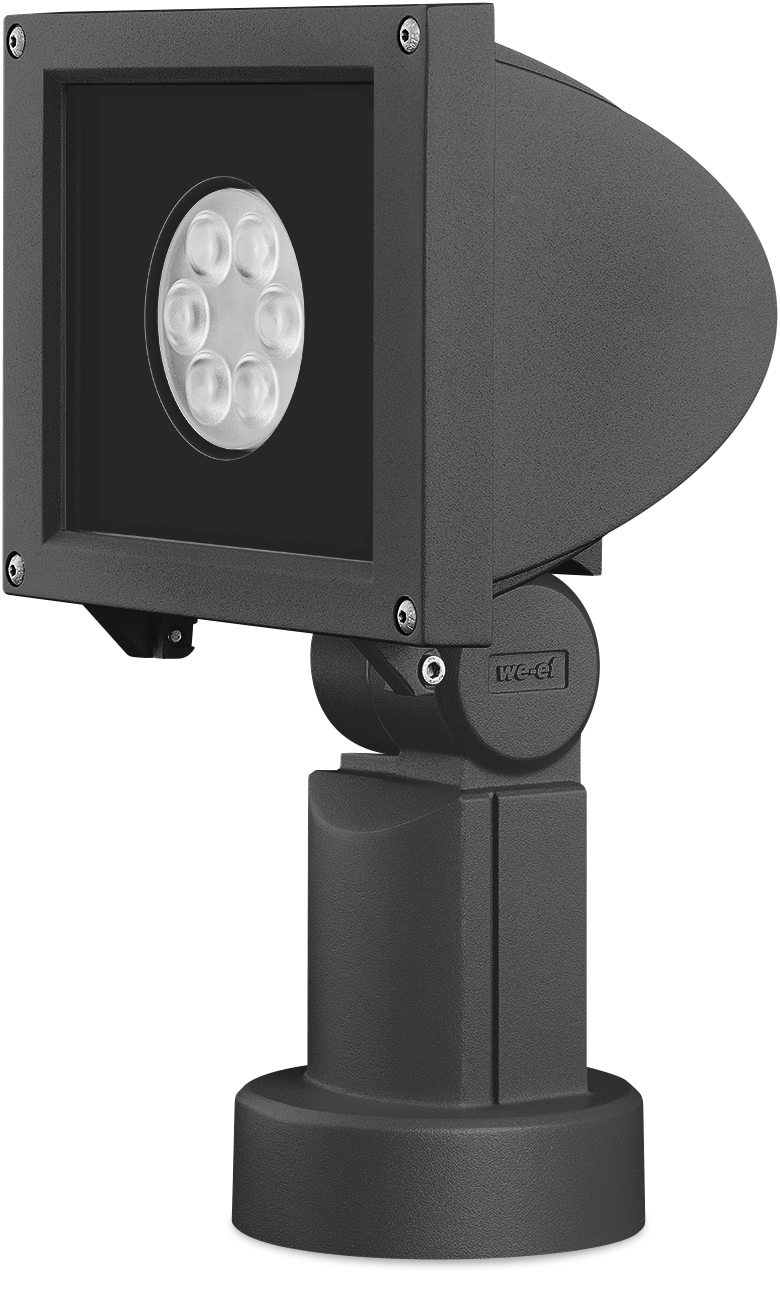

IP66. Class I. IK08. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. CAD-optimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. Advanced thermal management protects LEDs while optimizing lumens output 0-10V Dimming comes standard with luminaire. Luminaire is factory-sealed and does not need to be opened during installation. Mount permits 350° rotation and 180° tilt. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

FLB141 LED #2 Symmetric Schematics
Colours
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information

Delivered Lumen

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
161-5848symmetric, wide beam [W]LED-6/18W / 1050 mA - 3000 K2018.880
161-5850symmetric, wide beam [W]LED-6/18W / 1050 mA - 4000 K2112.780
161-5849symmetric, wide beam [W]LED-6/26W / 1400 mA - 3000 K2582.280
161-5851symmetric, wide beam [W]LED-6/26W / 1400 mA - 4000 K2699.680
161-5852symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K2167.280
161-5854symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K226880
161-5853symmetric, medium beam [M]LED-6/26W / 1400 mA - 3000 K277280
161-5855symmetric, medium beam [M]LED-6/26W / 1400 mA - 4000 K289880
161-5856symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 3000 K2165.680
161-5858symmetric, very narrow beam [VN]LED-6/18W / 1050 mA - 4000 K2266.480
161-5857symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 3000 K277080
161-5859symmetric, very narrow beam [VN]LED-6/26W / 1400 mA - 4000 K2895.980
Showing 1 to 12 of 12 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
161-9118Wire guard EG
