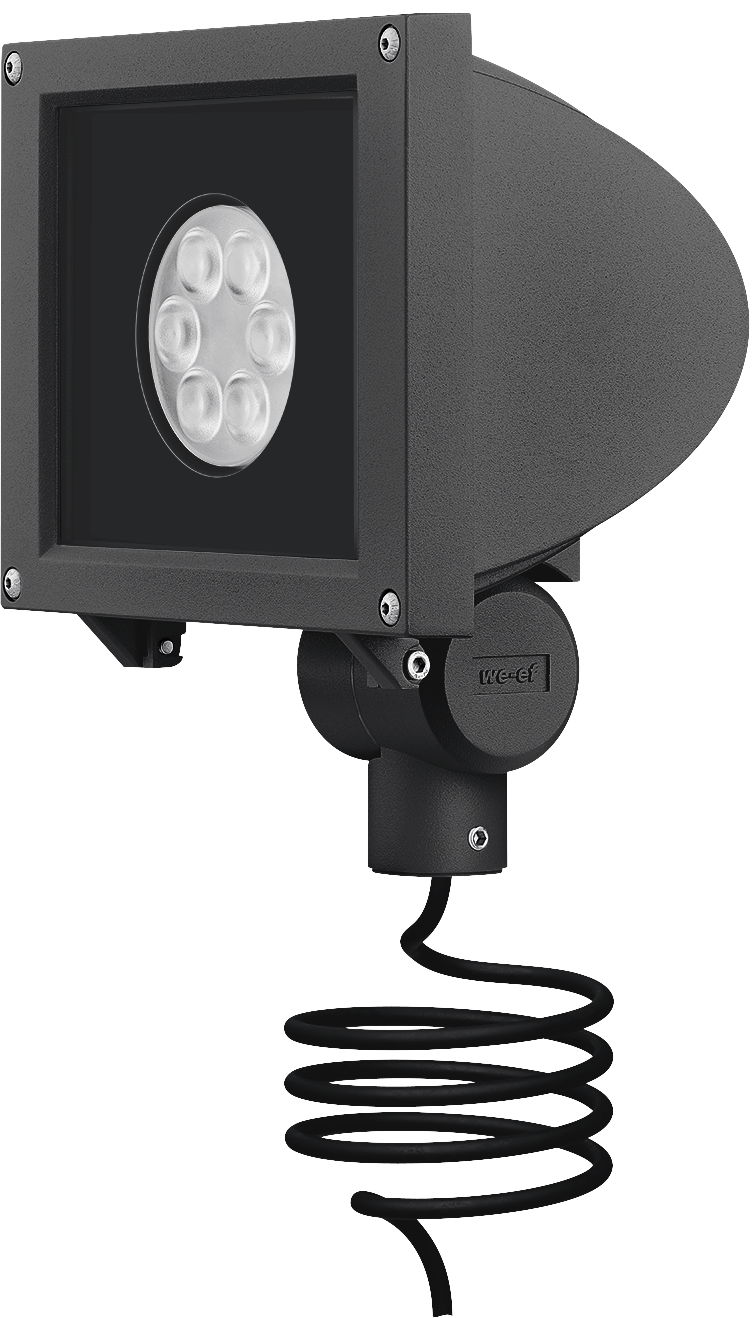

FLB141 LED #1 REMOTE Symmetric
Choose a variant:
IP66. Class I. IK08. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. CAD-optimized optics for superior illumination and glare control. Integral driver. OLC® One LED Concept. Advanced thermal management protects LEDs while optimizing lumens output. 0-10V Dimming comes standard with luminaire. Luminaire is factory-sealed and does not need to be opened during installation. Mounting accessories to be ordered separately. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Colours
Material
| Body | Marine-grade, die-cast aluminium alloy |
| Fasteners | PCS hardware |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK08 |
| Ingress Protection | IP66 |
| Corrosion Protection | 5CE |
Electrical
| Ballast / Driver | Integral EC electronic converter in thermally-separated compartment |
| Power Supply | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
Additional Information
Accessories
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions |
