ZA600 series
ZA640-FT LED

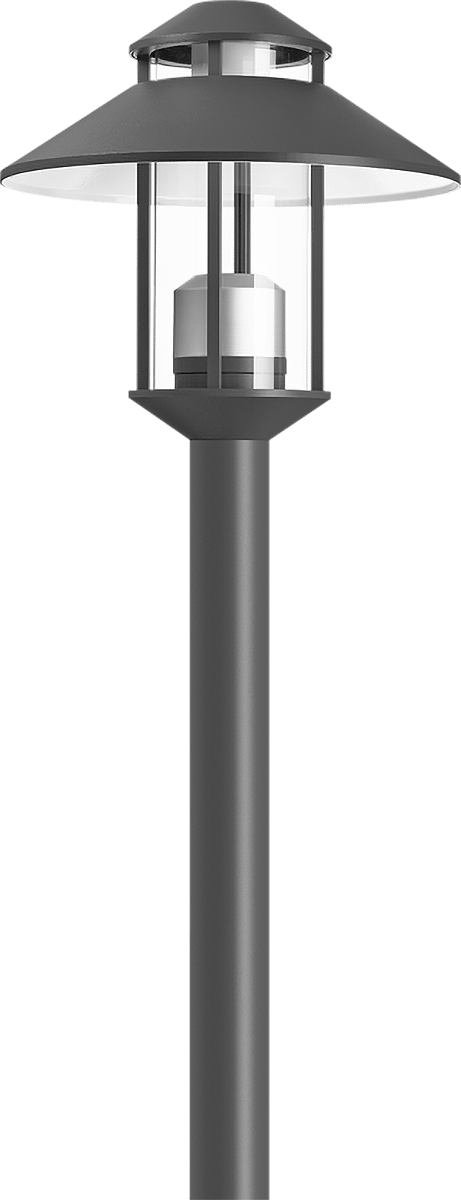

IP55. Class I. IK10. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gaskets. Polycarbonate main lens. CAD-optimized indirect optics for superior illumination and glare control. 0-10V Dimming comes standard with luminaire. Recommended mounting height 15-30 ft. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Colors
RAL9004 Black
RAL9016 White
RAL8019 Dark Bronze
RAL9007 Grey Metallic
Material
| Body | Marine-grade die-cast aluminium alloy |
| Lens | Clear polycarbonate outer lens |
| Fasteners | PCS Polymer Coated Stainless Steel hardware |
| Gasket | Silicone rubber gasket |
| Impact Protection | IK10 |
| Ingress Protection | IP55 |
| Finish | Powdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 and Dark Bronze RAL8019 |
| Corrosion Protection | 5CE |
| Mounting | Luminaire requires a 2.99" diam x .15" long pole top tenon. Refer to mounting accessories for wall mount bracket and multiple luminaire assembly brackets. |
Electrical
| Ballast / Driver | Clear polycarbonate outer lens |
| Power Supply | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
Additional Information
| Height x Diameter (inches) | 21.65 x 22.83 |
- - - -
