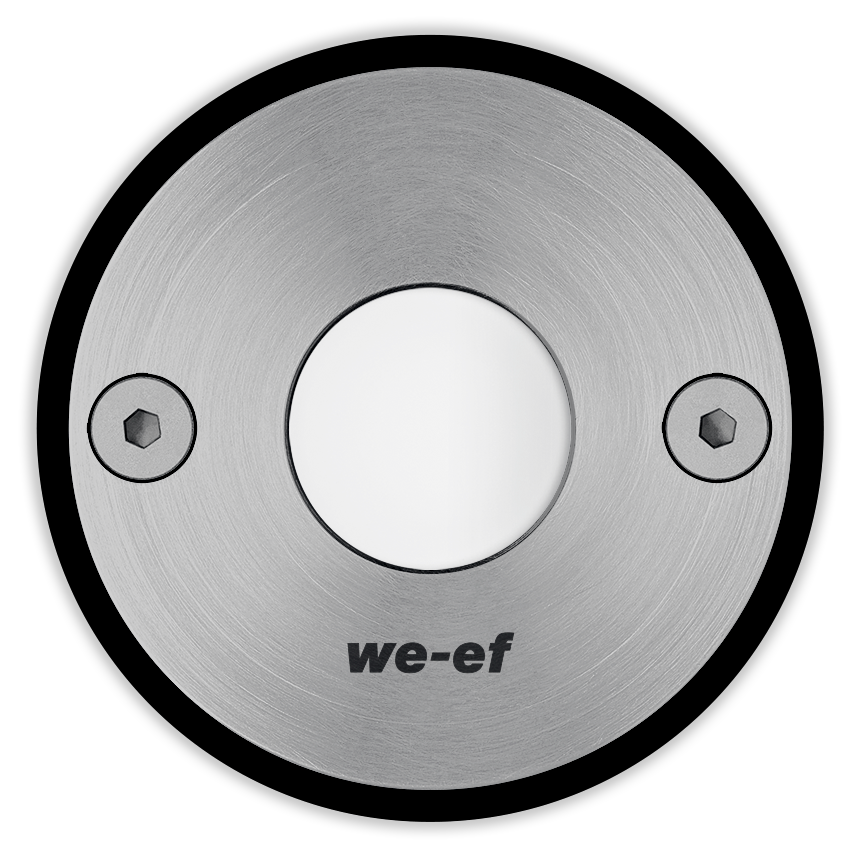

IP68 (up to 33ft). 12V. Class III. IK09. Stainless steel construction. PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free cable. Factory-installed circuit board. Select either white, red, green, blue or RGB. LED boards can be easily removed for upgrading. Suitable for flush installation in concrete. Luminaire requires installation blockout, to be ordered separately. IP68 in-line connector facilitates easy removal for off-site lamp replacement. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

ETC109 LED Schematics
Colors
Stainless Steel
Material
BodyLuminaire body constructed of machined stainless steel. Outer housing composite material.
FastenersPCS polymer coated stainless steel
GasketSilicone rubber gasket
Impact ProtectionIK09
Ingress ProtectionIP68
FinishNatural stainless steel
Corrosion Protection
MountingSuitable for installation in concrete. Installation blockout supplied with luminaire.
Electrical
Ballast / DriverEC electronic converter required. To be ordered separately.
Cable3 feet of flexible 18/3 cable
Power Factor
Power SupplyRequires a remote mounted 120 V – 12 V DC Class 2, LED [RT] power supply, to be ordered separately.
Surge Protection
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h

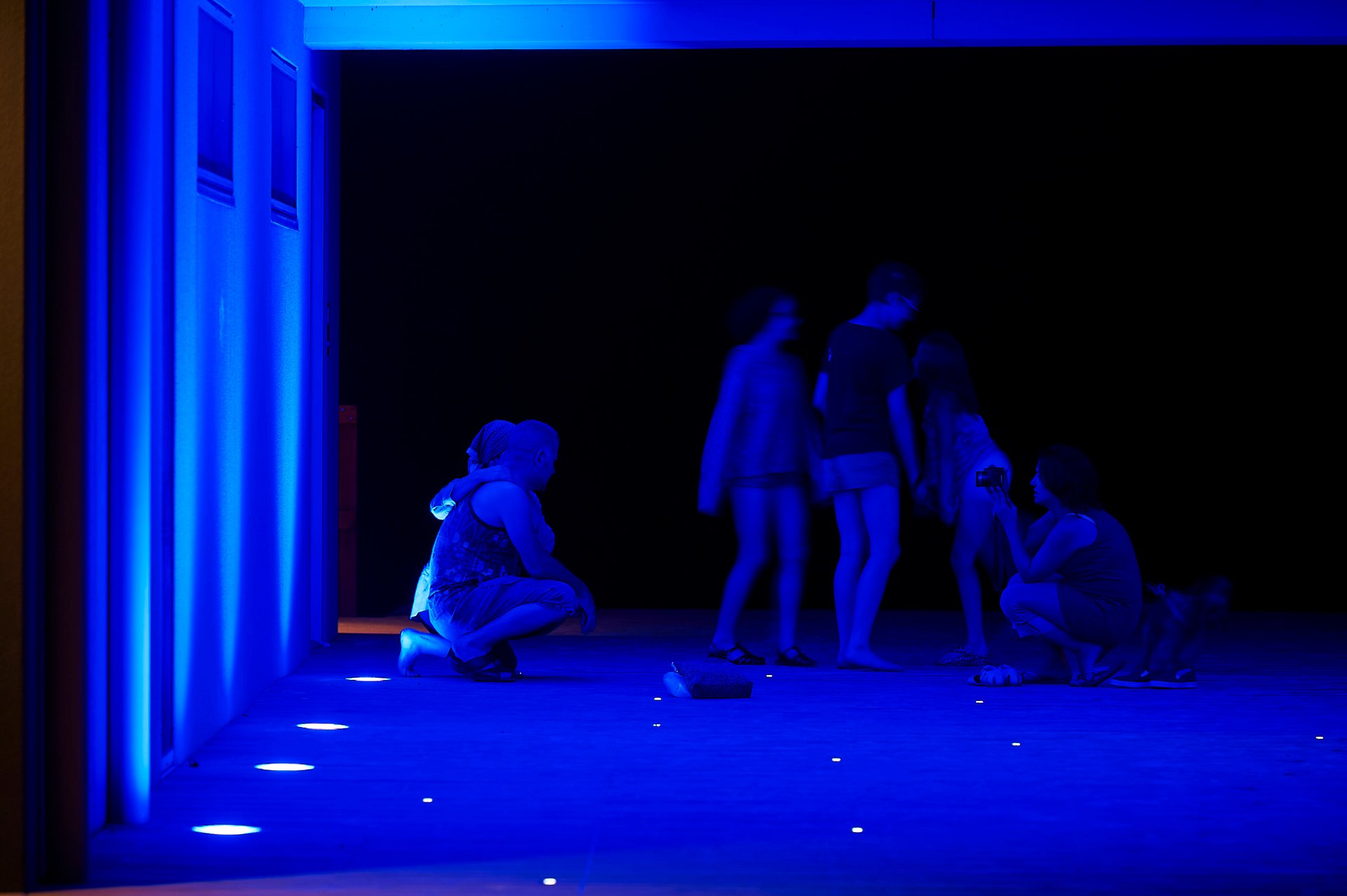

InstallationIP68 in-line connector facilitates lamp replacement and ease of maintenance. Suitable as a marker light for walk-over and drive-over applications. On-site opening of luminaire not required. Proper drainage and foundation support must be provided.
