ZA600 series

ZA630-FT LED

Static White

Choose a family:

H470 ⌀460 mm | ZA630-FT LED H550 ⌀580 mm | ZA640 LED H550 ⌀580 mm | ZA640-FT LED
Home
Products
Pole-Mounted Luminaires

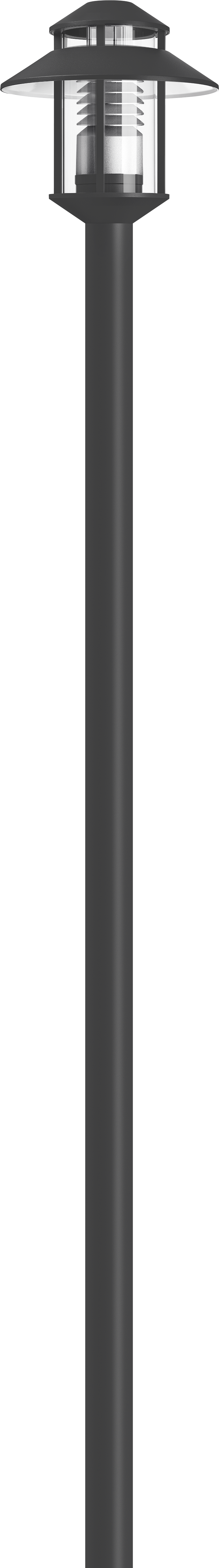

ZA630-FT LED
Family Spec Sheet Installation Instructions More Downloads

IP55, Class I. Class II on request. IK10. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. Polycarbonate main lens. CAD-optimised indirect optics for superior illumination and glare control.

ZA630-FT LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone rubber gasket
Impact ProtectionIK10
Ingress ProtectionIP55
FinishPowdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter. DALI
Cable30 feet of flexible 18/5 cable
Power Factor> 0.9
Power Supply220-240V / 50-60 Hz
Surge Protection10 kV (SP10)
Additional Information
LifetimeTa=25° L70B50 > 50000h
Energy efficiency classD (Light source)

Delivered Lumen

To

Wattage

To
Part-IDLight DistributionLight SourceDelivered LumenCRISpecificationsPhotometrics
TextPDF
159-0298symmetric distribution [C60]LED-FT-17W / 500 mA - 3000 K1863.380
159-0299symmetric distribution [C60]LED-FT-17W / 500 mA - 4000 K1942.280
159-0306symmetric distribution [C60]LED-FT-24W / 700 mA - 3000 K2561.280
159-0307symmetric distribution [C60]LED-FT-24W / 700 mA - 4000 K2670.580
159-0334symmetric distribution [C60]LED-FT-17W / 500 mA - 2700 K1781.380
159-0335symmetric distribution [C60]LED-FT-24W / 700 mA - 2700 K2458.180
Showing 1 to 6 of 6 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
430-0001Eco Step Dim® Basic LED
