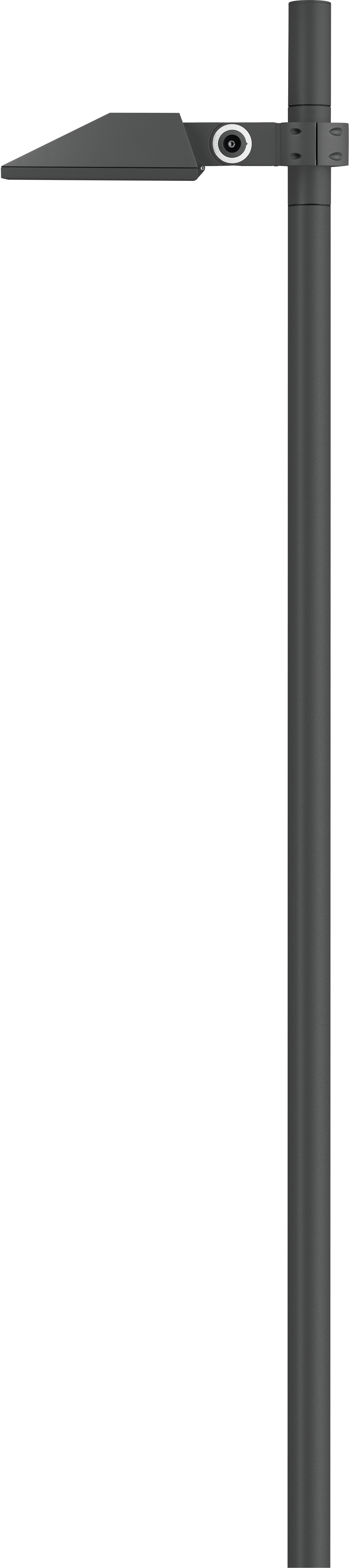

PFL230 LED

IP66, Class I. Class II on request. IK08. Marine-grade die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens, hinged. PMMA OLC® optics for superior illumination and glare control. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Brackets to be ordered separately.

Colours

RAL9004 Signal black

RAL9006 White aluminium

RAL9007 Grey aluminium

RAL7016 Anthracite grey

RAL9016 Traffic white

Material

Body	Marine-grade, die-cast aluminium alloy
Fasteners	PCS Polymer Coated Stainless Steel Hardware
Gasket	Silicone CCG® Controlled Compression Gasket
Impact Protection	IK08
Ingress Protection	IP66
Finish	Powdercoat finish in RAL7016, RAL9004, RAL9006, RAL9007 and RAL9016
Corrosion Protection	5CE

Electrical

Ballast / Driver	Integral EC electronic converter. DALI
Power Factor	> 0.9
Power Supply	220-240V / 50-60 Hz
Surge Protection	6/6 kV (optional SP10)

Additional Information

Lifetime	Ta=25° L90B10 > 90000h
Energy efficiency class	C-D (Light source)

Light Distribution

Delivered Lumen

To

Wattage

To

Colour Temperature

CRI

Part-ID	Light Distribution	Light Source	Delivered Lumen	CRI	Specifications
					Text	PDF
108-1773	asymmetric, side throw beam [S65]	LED-12/12W / 350 mA - 3000 K	1530.6	80
108-1774	asymmetric, side throw beam [S65]	LED-12/12W / 350 mA - 4000 K	1678.7	80
108-1781	asymmetric, side throw beam [S65]	LED-18/18W / 350 mA - 3000 K	2295.9	80
108-1782	asymmetric, side throw beam [S65]	LED-18/18W / 350 mA - 4000 K	2518.1	80
108-1775	rectangular, side throw [R65]	LED-12/12W / 350 mA - 3000 K	1340.2	80
108-1776	rectangular, side throw [R65]	LED-12/12W / 350 mA - 4000 K	1469.9	80
108-1783	rectangular, side throw [R65]	LED-18/18W / 350 mA - 3000 K	2010.3	80
108-1784	rectangular, side throw [R65]	LED-18/18W / 350 mA - 4000 K	2204.8	80
108-1777	asymmetric, forward throw [A60]	LED-12/12W / 350 mA - 3000 K	1434.9	80
108-1778	asymmetric, forward throw [A60]	LED-12/12W / 350 mA - 4000 K	1573.7	80
108-1785	asymmetric, forward throw [A60]	LED-18/18W / 350 mA - 3000 K	2152.3	80
108-1786	asymmetric, forward throw [A60]	LED-18/18W / 350 mA - 4000 K	2360.6	80
108-1779	pedestrian/bicycle lane [P65]	LED-12/12W / 350 mA - 3000 K	1450.4	80
108-1780	pedestrian/bicycle lane [P65]	LED-12/12W / 350 mA - 4000 K	1590.8	80
108-1787	pedestrian/bicycle lane [P65]	LED-18/18W / 350 mA - 3000 K	2175.6	80
108-1788	pedestrian/bicycle lane [P65]	LED-18/18W / 350 mA - 4000 K	2386.2	80
108-1627	asymmetric, side throw beam [S65]	LED-12/24W / 700 mA - 3000 K	2780.3	80
108-1632	asymmetric, side throw beam [S65]	LED-12/24W / 700 mA - 4000 K	2972.1	80
108-1723	asymmetric, side throw beam [S65]	LED-18/36W / 700 mA - 3000 K	4170.5	80
108-1724	asymmetric, side throw beam [S65]	LED-18/36W / 700 mA - 4000 K	4458.1	80
108-1622	rectangular, side throw [R65]	LED-12/24W / 700 mA - 3000 K	2434.4	80
108-1623	rectangular, side throw [R65]	LED-12/24W / 700 mA - 4000 K	2602.3	80
108-1725	rectangular, side throw [R65]	LED-18/36W / 700 mA - 3000 K	3651.7	80
108-1624	asymmetric, forward throw [A60]	LED-12/24W / 700 mA - 3000 K	2606.4	80
108-1726	rectangular, side throw [R65]	LED-18/36W / 700 mA - 4000 K	3903.5	80
108-1629	asymmetric, forward throw [A60]	LED-12/24W / 700 mA - 4000 K	2786.2	80
108-1727	asymmetric, forward throw [A60]	LED-18/36W / 700 mA - 3000 K	3909.6	80
108-1728	asymmetric, forward throw [A60]	LED-18/36W / 700 mA - 4000 K	4179.3	80
108-1625	pedestrian/bicycle lane [P65]	LED-12/24W / 700 mA - 3000 K	2634.7	80
108-1630	pedestrian/bicycle lane [P65]	LED-12/24W / 700 mA - 4000 K	2816.4	80
108-1729	pedestrian/bicycle lane [P65]	LED-18/36W / 700 mA - 3000 K	3952	80
108-1730	pedestrian/bicycle lane [P65]	LED-18/36W / 700 mA - 4000 K	4224.6	80
108-2488	asymmetric, side throw beam [S65]	LED-12/12W / 350 mA - 2700 K	1431.8	80
108-2489	asymmetric, side throw beam [S65]	LED-12/24W / 700 mA - 2700 K	2588.6	80
108-2490	asymmetric, side throw beam [S65]	LED-18/18W / 350 mA - 2700 K	2147.8	80
108-2491	asymmetric, side throw beam [S65]	LED-18/36W / 700 mA - 2700 K	3882.9	80
108-2492	rectangular, side throw [R65]	LED-12/12W / 350 mA - 2700 K	1253.7	80
108-2493	rectangular, side throw [R65]	LED-12/24W / 700 mA - 2700 K	2266.5	80
108-2494	rectangular, side throw [R65]	LED-18/18W / 350 mA - 2700 K	1880.6	80
108-2495	rectangular, side throw [R65]	LED-18/36W / 700 mA - 2700 K	3399.8	80
108-2496	asymmetric, forward throw [A60]	LED-12/12W / 350 mA - 2700 K	1342.3	80
108-2497	asymmetric, forward throw [A60]	LED-12/24W / 700 mA - 2700 K	2426.7	80
108-2498	asymmetric, forward throw [A60]	LED-18/18W / 350 mA - 2700 K	2013.4	80
108-2499	asymmetric, forward throw [A60]	LED-18/36W / 700 mA - 2700 K	3640	80
108-2500	pedestrian/bicycle lane [P65]	LED-12/12W / 350 mA - 2700 K	1356.8	80
108-2501	pedestrian/bicycle lane [P65]	LED-12/24W / 700 mA - 2700 K	2453	80
108-2502	pedestrian/bicycle lane [P65]	LED-18/18W / 350 mA - 2700 K	2035.3	80
108-2503	pedestrian/bicycle lane [P65]	LED-18/36W / 700 mA - 2700 K	3679.5	80
108-2500-70	pedestrian/bicycle lane [P65]	LED-12/12W / 350 mA - 2700 K	1450.4	70
108-2488-70	asymmetric, side throw beam [S65]	LED-12/12W / 350 mA - 2700 K	1530.6	70

Showing 1 to 50 of 96 entries.

Accessories

Control

Mounting Accessories

Optical Accessories

Part-ID	Title	Specifications
		Text	PDF
430-0001	Eco Step Dim® Basic LED
